Range of printable security fencing.
Zaun’s fully customizable HiSec Print range of perimeter security fencing is designed to enable specifiers to put their own mark on the fence line, these can be company logos, building names or other features which can be physically printed onto the panel.
Refer to the HiSec DualFix, SingleFix and Spider for details of fence construction.
Features and benefits:
Galvanized and polyester powder coated
Q40/125 Open mesh steel panel general purpose fencing
Q40/27 Open mesh steel panel fencing
Q40/30 Proprietary fencing
Q40/430 Proprietary fencing
HiSec Print DualFix
0.6–5.2 m height.
HiSec Print SingleFix
0.6–5.2 m height.
HiSec Print Spider
0.6–3.0 m height.
Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.
Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.
DualFix only. Consult manufacturer for details.
|Standard product features|
Galvanized and polyester powder coated.
HiSec mesh comprising of 12.7 x 76.2 mm mesh with single 4 mm vertical wires at 76.2 mm centres and 4 mm horizontal wires at 12.7 mm centres.
Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 2440/ 2525 mm centres.
Post to panel fixing:

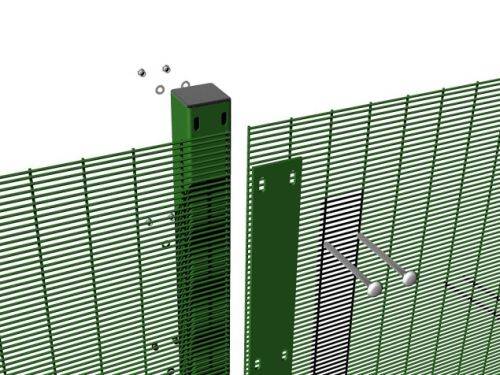

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres.
Panels fixed to posts with full height 80 x 5 mm clamp bar with twin bolt fixings at 400 mm centres. The full height clamp bars create a safe finish with the mesh ends behind the clamp bar.
Panels fixed to posts with spider clips with bolt fixings at 200 mm centres.
Framed in a 50 x 50 mm RHS with Zaun HiSec mesh bolted onto the frame using the Zaun picture frame design, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
SR1: Opportunist attack by bodily force using minimal tools (screwdriver, knife, pliers, etc.).
