Application

  • Civic and public sector.
  • Health and emergency services.
  • High security.
  • Industrial.
  • Schools and education.
  • Transport and infrastructure.
  • Utilities.

Description

HiSec DualSkin has been designed for applications and sites that require a more robust solution than standard 358 HiSec. It features two layers of the traditional HiSec 358 mesh 12.7 mm x 12.7 mm x 4 mm which are welded together with the rear secondary panel turned through 90° making a very tight mesh configuration which is difficult to cut and almost impossible to climb.

The system conforms to BS 1722–14 Category 4. It has been extensively used in prisons and by the Ministry of Defence (MoD) to protect high security assets.

Features and benefits:

  • Extensively used by Ministry of Defence to protect critical assets.
  • Provides double the protection of the standard 358 prison mesh configuration.
  • Tight mesh configuration makes this system extremely difficult to climb with no tow or finger holds.
  • Provides maximum security where a discreet visual impact is essential.
  • Vandal resistant, robust wire and weld joints make cutting very difficult using conventional bolt or wire cutters.
  • Excellent visibility characteristics despite the small mesh aperture for unobstructed camera surveillance, either from the front or at an angle.

Applications:

  • Civic and public sector.
  • Health and emergency services.
  • High security.
  • Industrial.
  • Schools and education.
  • Transport and infrastructure.
  • Utilities.

General information
Finish

Galvanized and polyester powder coated

Uniclass 2015
Metal mesh panel fencing systems (Ss_25_14_67_51)Primary
Specification data - Metal mesh panel fencing systems
Product Reference

HiSec DualSkin

Height

0.60–5.2 m, insert requirements.

Gates -
Pedestrian

Not required

Required

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular

Not required

Required

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Standard product features

Finish:

Galvanized and polyester powder coated.

Mesh:

HiSec mesh comprising of two panels of 12.7 x 12.7 mm mesh with single 4 mm vertical wires at 12.7 mm centres and horizontal wires at 12.7 mm centres.

Posts:

Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 2525 mm centres.

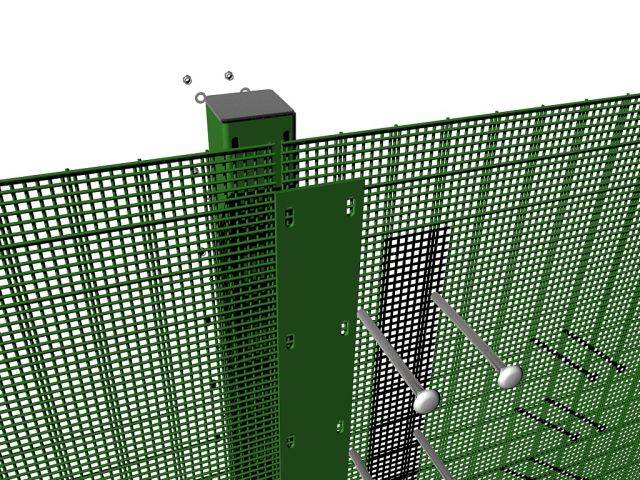

Post to panel fixing:

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 50 mm centres. The full height clamp bars create a safe finish with the mesh ends behind the clamp bar.

Gates:

Framed in a 100 x 50 mm RHS, with Zaun HiSec DualSkin mesh bolted onto the frame using the Zaun picture frame design, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
