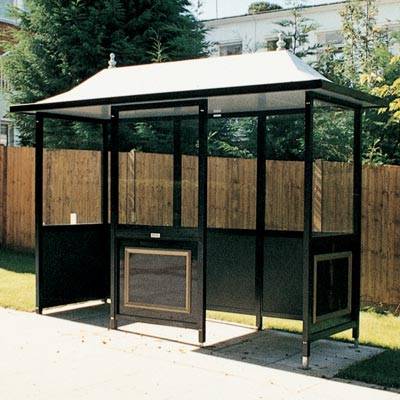

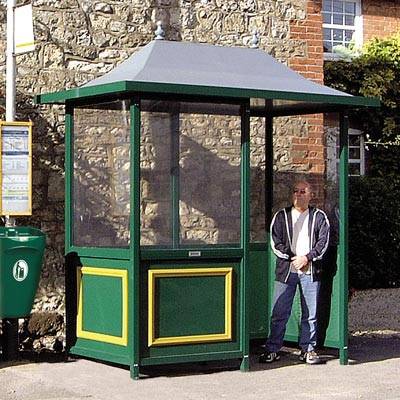

Heritage Shelter - External Shelter

Verified by manufacturer 1 month ago

HG225 - 2 Bay Long x 1 Bay Wide - Open Front Entry

Glasdon UK Ltd Variant:

Traditionally styled waiting shelter.

Jump to:
+44 (0)1253 600410 Website

Application

Semi-closed shelters suitable for passenger waiting applications, particularly for transport such as buses, trams or train platform stops.

Description

Heritage Shelters are traditionally styled waiting shelters made from modern materials, providing a low-maintenance waiting shelter with optional features such as timetable boards and integrated perch seating. The shelters are supplied with spigoted legs that can be adjusted to compensate for an uneven base, or set into concrete pockets below the ground.


For public transport applications, the Heritage Waiting Shelter range can be adapted in size and configuration to meet the needs of disabled persons, particularly wheelchair users, in accordance with the relevant Department for Transport guidelines.


These semi-closed shelters are available in seven standard layouts with an expanded range of model lengths and depths available on request.


Features and benefits:

  • Designed to coordinate with traditional street furniture.
  • Seven standard layouts.
  • Panels available in toughened glass, thermoplastic glazing or blank glass reinforced plastic (GRP) in a choice of colours.
  • Manufactured from low-maintenance materials.
  • Supplied ready for immediate fixing to a prepared concrete base.

General information

Color

Red

Black

Green

Blue

Grey

Finish

Other

Material

Glass Reinforced Plastic (GRP)

Aluminium

Composite

Glass

Guidance for specification option:

Toughened glass.

Plastic

Guidance for specification option:

High-impact thermoplastic glaze.

Shape

Rectangle

Length

2180 mm

3245 mm

Manufacturer guidance

Nominal Length.

Width

1115 mm

Manufacturer guidance

Nominal width.

Height

2714 mm

Warranty description

One year

Uniclass

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

B91/420 Waiting shelter

B91/385 Shelter

B91/320 Bus shelter

Specification data - Semi-closed shelters

Description

Semi-closed waiting/ bus shelter.

Manufacturer

Glasdon UK.

Shelter description

Rectangular, bonnet-roofed waiting shelter.

Dimensions

-

Plan size

2180 x 1115 mm.

Manufacturer guidance

Length x depth.

Height

2714 mm.

Frame

-

Material

Aluminium.

Guidance for specification option:

Vertical 50 x 50 mm sections and horizontal 38 x 38 mm sections.

Finish

Anodized and Armortec® coated.

Colour

Maroon.

Guidance for specification option:

RAL 3003.

Black.

Guidance for specification option:

RAL 9005.

Dark Green.

Guidance for specification option:

RAL 6005.

Dark Blue.

Guidance for specification option:

RAL 5003.

Panels

Toughened glass glazed upper and lower panels.

Thermoplastic glazed upper and lower panels.

Toughened glass glazed upper panels and blank lower panels.

Thermoplastic glazed upper panels and blank lower panels.

Other.

Guidance for specification option:

Any combination of glass, thermoplastic and blank upper and lower panels in available; consult manufacturer and insert requirements.

Manufacturer guidance

Blank Panels:

6mm GRP with textured internal face and smooth semi-gloss external face with decorative moulding.


Glazed Panels:

6 mm toughened glass.

6 mm high-impact thermoplastic sheet.

Roof covering

Steel – composite panel.

Guidance for specification option:

33 mm thick composite panel with pre-finished steel internal face and GRP over-roof.

Openings

-

Windows

Toughened glass.

Plastic.

Guidance for specification option:

High-impact thermoplastic sheet.

Not required.

Manufacturer guidance

Tinted or textured glass sheet is available to special order; contact manufacture and insert requirements.

Integral services

Not required.

Cabling for power and lighting.

Guidance for specification option:

Only available when specified with luminaire devices, which are all wired in surface-mounted steel conduit to a terminal box at low level. Final site connection and fusing by the customer. Consult manufacturer and insert requirements.

Rainwater drainage

Manufacturer's standard.

Guidance for specification option:

Concealed rainwater management system guides run-off to ground-level corner outlets.

Accessories

Not required.

Timetable board.

Guidance for specification option:

Armortec® coated aluminium case with thermoplastic glazing fixed to intermediate mullions. Display area measures 720 x 270 mm (height x width).

Black as standard.

Seating.

Guidance for specification option:

GRP perch seating can be incorporated into lower blank panel.

Available in the following colours:

  • Maroon - RAL 3003.
  • Black - RAL 9005.
  • Dark Green - RAL 5003.
  • Dark Blue - RAL 5003.
  • Grey - BS 4800 (18.B.21).

Etching.

Guidance for specification option:

Logo, crest or name can be etched on to the inside surface of glass panels.

Internal luminaires.

Guidance for specification option:

External-quality fluorescent luminaire and dusk to dawn sensor switch all wired in surface-mounted steel conduit to a terminal box at low level.

Configuration

Open front entry.

Colour

Maroon.

Guidance for specification option:

RAL 3003.

Black.

Guidance for specification option:

RAL 9005.

Dark Green.

Guidance for specification option:

RAL 6005.

Dark Blue.

Guidance for specification option:

RAL 5003.

Not required.

Manufacturer guidance

Blank panel colour. Decorative moulding highlighted in gold.

Finish

Internal face: Textured.
External face: Smooth semi-gloss.

Guidance for specification option:

External face has decorative moulding.

Roof covering colour options

Internal face: Alaska Grey.
External face: Light Grey.

Guidance for specification option:

  • Alaska Grey - RAL 7000.
  • Light Grey BS 400 (18.B.25).

Sustainability data

Country of product manufacture

United Kingdom

Material

Glass Reinforced Plastic (GRP)

Aluminium

Composite

Glass

Guidance for specification option:

Toughened glass.

Plastic

Guidance for specification option:

High-impact thermoplastic glaze.

Literature

Glasdon UK Shelters Catalogue

Glasdon UK Shelters Catalogue

Glasdon-UK-Heritage-Booklet-GT426

Glasdon-UK-Heritage-Booklet-GT426
