Heritage 2800 Flush French Door - F7 Open Out

Verified by manufacturer over a year ago

Deceuninck Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

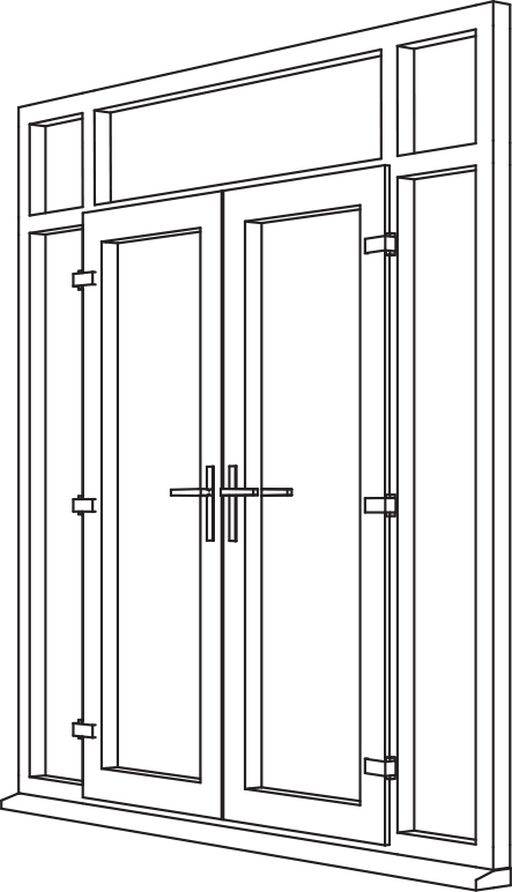

Flush double opening door with combined fan light, double side lights and decorative design frame.

Jump to:
BOS
 +44 (0)1249 816969 Website

Application

Suited for commercial projects.

Description

PVC-U Flush French doors, available in range of styles in three standard finishes.


Dedicated profile and hardware has resulted in a technically advanced system ideal for commercial projects. With one sash size (93 mm), two frame sizes (55 mm & 70 mm), a slim (70 mm) transom and a low threshold option, the system is available in 26 laminate colourways from stock providing the ultimate in convenience regarding supply.


Features and benefits:

  • The Heritage 2800 flush window and door system offers the best in weather performance technology, energy efficiency and security.
  • Available in: White - RAL 9016 (standard), Laminated foil, Decoroc colour (RAL).
  • BSI Kitemarked.


General information

Shape

Rectangle

Color

White

Guidance for specification option:

RAL 9016 (standard).

Other

Guidance for specification option:

Laminated foil, Decoroc colour (RAL).

Material

PVC-U

Warranty description

Guidance for specification option:

Manufacturer warranty.

Size

Guidance for specification option:

Specification dependant.

Uniclass

Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Open Out Doors / Flush

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets

Third party accreditation

BSI Kitemark.

Standard

To BS 7412.

Configuration

Double leaf, single action.

Doorset size

As drawing.

Guidance for specification option:

Maximum tested size: Double leaf (W x H): 1800 x 2150 mm.

Coupled side panel: 1100 x 2150 mm.

Performance

-

Acoustic performance

32—43 dB.

Strength and durability

To BS 6375-2.

Thermal

Guidance for specification option:

  • Whole door ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Door energy ratings E to A++ can be achieved.

Intruder resistance

-

Minimum requirement

In accordance with BS 6375-3 and to PAS 24.

Accessibility

Doc M Compliant.

Guidance for specification option:

Low threshold to suit inward and outward opening doors to improve access for the disabled and wheelchair users.

Frame

-

Materials

Steel core with PVC-U sleeve.

Guidance for specification option:

Galvanized steel.

Threshold

Not required.

2976 AM3-70 open-in low threshold.

2977 AM5EX-70 open-out low threshold.

14647 Low threshold.

Perimeter seals or inserts

Impregnated foam seal/tape.

Flexible membrane.

Finish and colour

White - RAL 9016.

Guidance for specification option:

Standard.

Laminated foil.

Decoroc colour (RAL).

Installation fasteners

Through frame fasteners.

Fixing lug.

Frame accessories

Trickle ventilator.

Door leaf

-

Thickness

62 mm.

Core

Galvanized steel.

Panel details

Specification dependant.

Perimeter seals

High-performance integral multifunctional seal/ gasket.

Material

PVC-U with glazing.

Finish

White - RAL 9016.

Guidance for specification option:

Standard.

Laminated foil.

Decoroc colour (RAL).

Architraves

-

Material

PVC-UE.

Finish

White - RAL 9016.

Guidance for specification option:

Standard.

Laminated foil.

Decoroc colour (RAL).

Glazing

-

Type

Double glazed.

Single glazed.

Triple glazed.

Beading

Internal.

Hardware

Manufacturer's standard.

Guidance for specification option:

  • Tender specific.
  • Will accept hardware from most manufacturers.
  • Full depth euro-groove.
  • Secure location of hardware.

Perimeter seals

High-performance integral multifunctional seal/ gasket.

Installation fasteners

Through frame fasteners.

Fixing lug.

Accessories

Not required.

Head drip.

Weather bar.

Architrave finishing trims.

Georgian bars.

Leaded lights.

Opening

Outward.

Type

Standard frame.

Fanlight frame.

Sidelight frame.

Manufacturer guidance

Door frame type.

Couplings

Not required.

3310 Slimline coupler.

3312 Slimline coupler.

3197 Slimline coupler.

3705 Reinforced coupler.

Show more

Manufacturer guidance

Door frame couplings.

Extensions

Not required.

2455 Head section.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3300 Add-on.

Guidance for specification option:

Allows additional clearance for hinges.

3301 Add-on.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3302 Add-on.

Guidance for specification option:

Frame build-up for conservatories.

Show more

Manufacturer guidance

Door frame extensions.

Outer frame size

55 mm.

70 mm.

85 mm.

Transoms and mullions size

70 mm.

85 mm.

110 mm.

Architraves

Not required.

1044 D-mould.

Guidance for specification option:

30 mm wide.

1087 Architrave.

Guidance for specification option:

40 mm wide.

1178 Quadrant.

Guidance for specification option:

19 mm.

3341 Add-on.

Guidance for specification option:

Architrave adaptor.

Show more

Bay window corner posts

Not required.

3313/ 3327 Slimline bay pole and adaptor.

Guidance for specification option:

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Guidance for specification option:

Angles from 90°-270°.

6920 90° Square corner post.

3196 Bay post.

Guidance for specification option:

Fixed 135° angle.

Show more

Weather bars

Not required.

3303 Head drip.

3306 Weather bar.

Projecting sill

Not required.

3338 Projecting sill.

Guidance for specification option:

150 mm.

3339 Projecting sill.

Guidance for specification option:

180 mm.

3258 End cap.

Guidance for specification option:

For 3338 Projecting sill.

3259 End cap.

Guidance for specification option:

For 3339 Projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

Guidance for specification option:

95 mm.

3257 End cap.

Guidance for specification option:

For 3337 Stub-sill.

Glazing options

Not required.

Georgian bar.

Leaded lights.

Manufacturer guidance

Glazing options.

Ventilation

Not required.

Proprietary ventilation device.

Guidance for specification option:

Insert requirements.

Type

Decorative 28 mm.

Other.

Guidance for specification option:

Other styles available for other glazing thicknesses

Manufacturer guidance

Beading type.

Thickness

3—40 mm.

Manufacturer guidance

Glazing thickness.

Air permeability

To BS 6375-1, Class 4 (600 Pa).

UK exposure category

To BS 6375-1, Class A3 (1200 Pa).

Watertightness

To BS 6375-1, Class E1050 (1050 Pa).

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
 -

1

Third party certifications

BSI Kitemark

BSI Kitemark

PAS24 certificate - Doors
