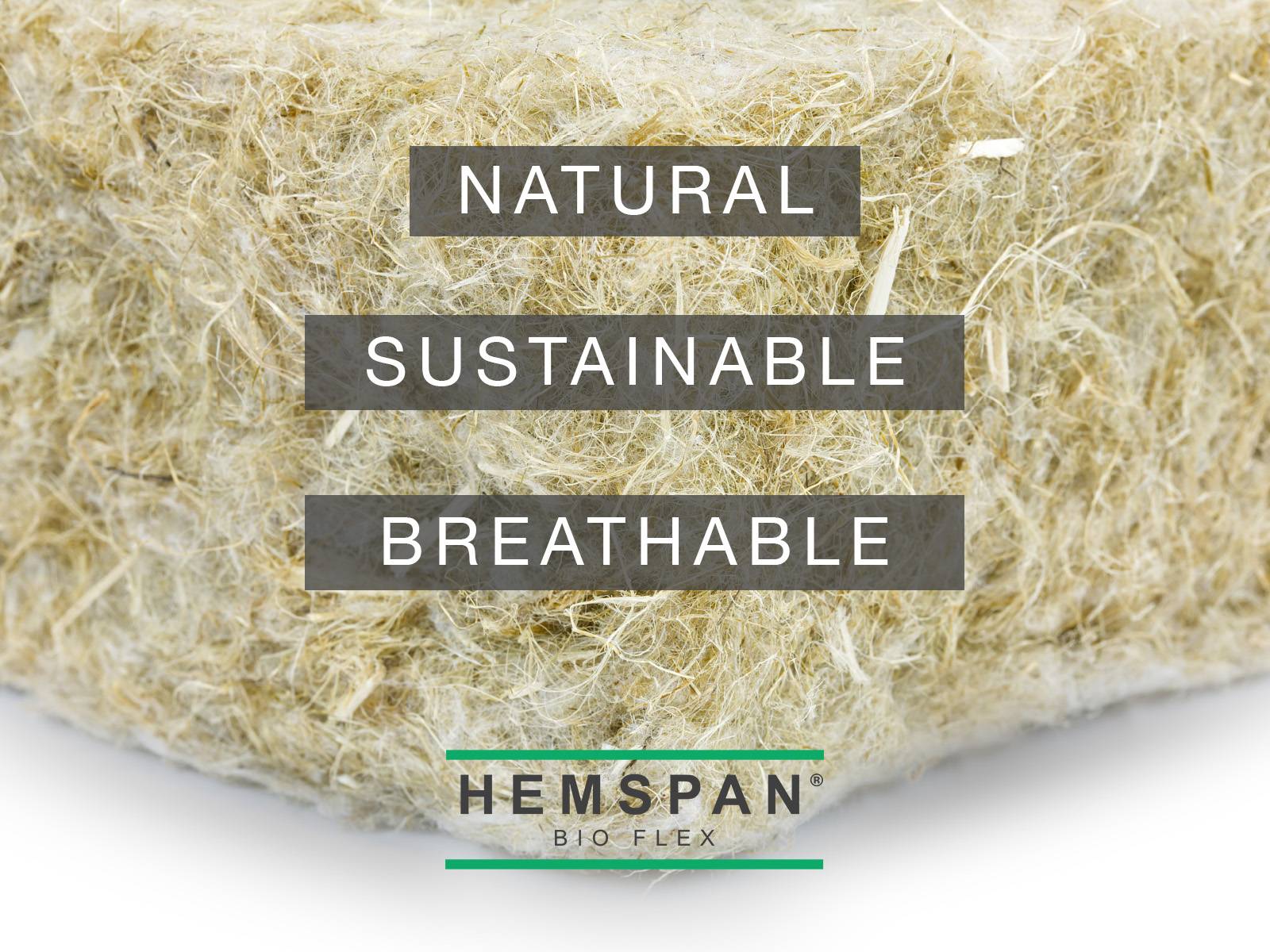

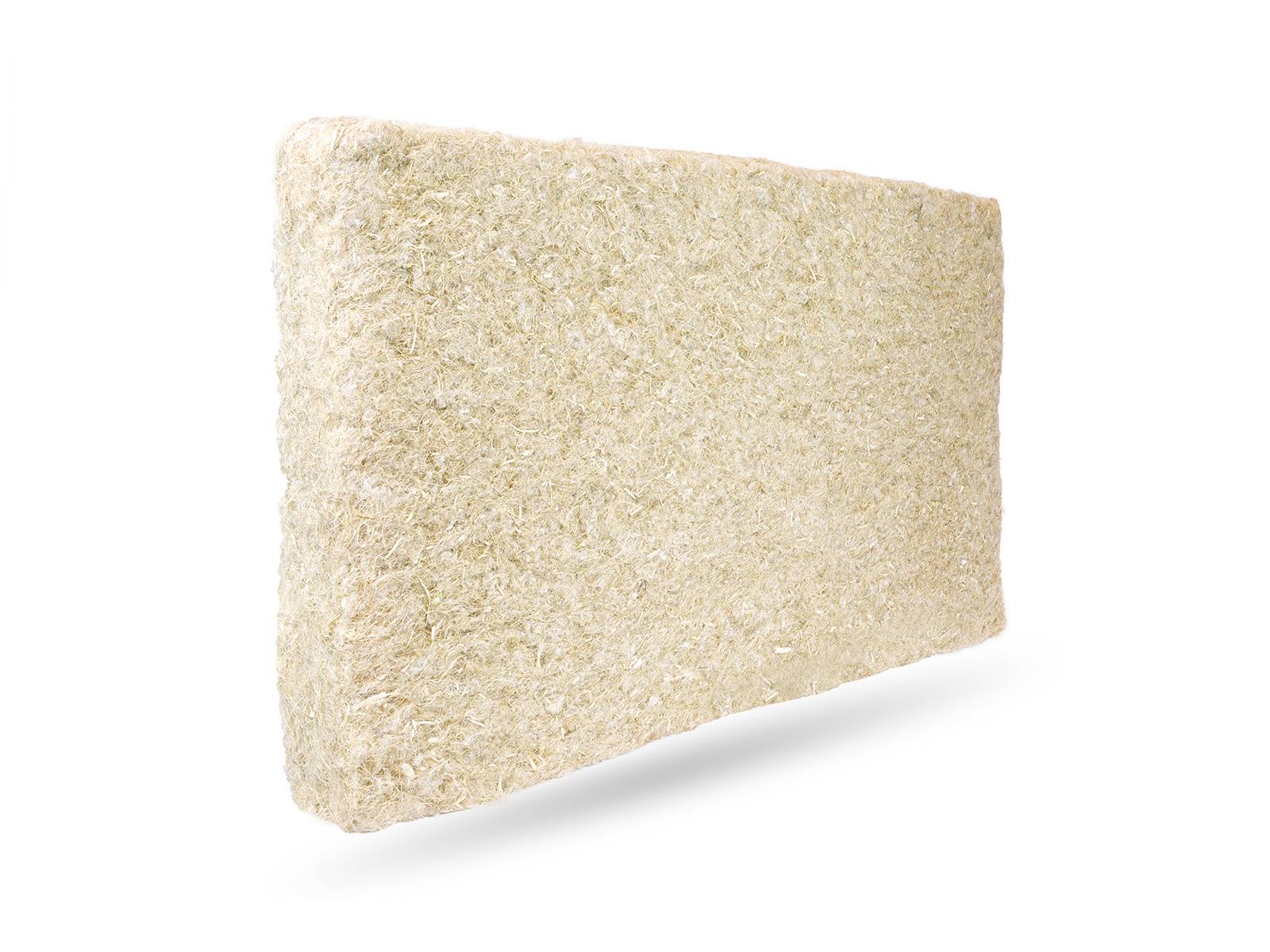

Hemspan® Bio Flex Insulation

Application

Use as thermal and acoustic insulation for:

  • Pitched roofs between, under and above rafters.
  • Between floor joists.
  • Internal acoustic wall insulation.
  • Inserted into ceiling frames and suspended soffits.
  • Partition and cavity walls.

Description

Bio Flex insulation is suited for external, thermal or acoustic insulation.


The advantages of Bio Flex batts are their very low water vapour diffusion resistance and excellent thermal and acoustic insulation properties. Thanks to these properties, Bio Flex can fully replace polystyrene, glass or mineral wool insulation. As a result, Bio Flex batts are particularly suitable for use in sustainable construction.


Features and benefits:

  • Natural and sustainable.
  • Excellent thermal and acoustic insulation properties.
  • Low water vapour diffusion resistance.
  • Safe and hygenic, supporting a healthy living environment.
  • Fast and simple assembly.
  • Ability to adapt to the most complicated construction shapes.

General information

Color

Beige

Material

Hemp

Shape

Rectangle

Length

1100 mm

Width

600 mm

Height

40 mm

50 mm

60 mm

80 mm

100 mm

Show more

Uniclass

Pr_25_57_06_37 Hemp fibre insulationPrimary

CAWS

P10/140 Insulation fitted between rafters

P10/125 Insulation laid between ceiling ties/ joists

P10/185 Soffit insulation

P10/135 Insulation laid across ceiling ties/ joists

P10/190 Insulation fitted between studs

P10/240 Insulation fitted between floor joists

P10/220 Sound insulation within timber framed separating wall

P10/45 Insulation laid between floor joists

P10/15 Insulation fitted between rafters

P10/40 Insulation fitted betweenor to the face ofstuds

F30/155 Partial fill cavity insulation

F30/150 Full fill cavity insulation

F30/10 Full fill cavity insulation

F30/12 Partial fill cavity insulation

Specification data - Hemp fibre insulation

Form

Batts.

Thermal conductivity (maximum)

0.039 W/m.K.

Thickness

40 mm.

50 mm.

60 mm.

80 mm.

100 mm.

120 mm.

140 mm.

160 mm.

180 mm.

Density

30-40 kg.

Fire performance

Reaction to fire classification Class E, to EN 13501-1 + A1.

Sound absorption

Class C (aw = 0.70) to EN ISO 354; EN ISO 11654.

Water vapour resistance

≤ 2 (µ-value).

Environmental information

Contains Red List materials

No

Country of material origin

Czechia

Country of product manufacture

Czechia

Embodied carbon

-0.378

-

Recyclability

Fully Recyclable

Recycled content

15 %
