Hemsec Control 60
Application

Typically designed for specific internal operating temperatures and conditions which usually range between +30 and -40 °C. Applications include:

  • Food processing and preparation.
  • Blast and Spiral freezers.
  • Fruit ripening rooms.
  • Storage and warehousing.
  • Distribution centres.
  • Retail solutions and dual compartment rooms.
  • Internal fire rated builds including firewalls.
  • Spray booths.
  • Drying rooms.
  • Data centres.
  • Clean rooms.
  • Pharmaceutical and laboratory environments.
  • Internal column cladding.

Description

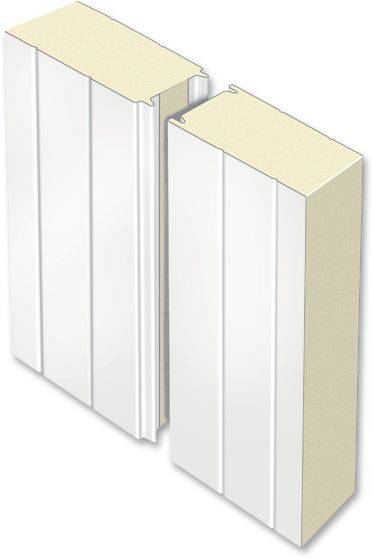

Steel faced polyisocyanurate insulated sandwich panels for temperature-controlled environments.

Features and benefits:

  • Self-supporting internal structures.
  • Single spanning capability.
  • Precision jointing detail.
  • Offers good airtightness.
  • Excellent thermal U values up to 0.10 W/m²K.
  • Up to 60-minute fire resistance.
  • Food safe and hygienic steel coatings.
  • Thermal breaks and rebates can be incorporated into the walling requirements to suit the ceiling thickness.
  • CE marked.

Applications:

Typically designed for specific internal operating temperatures and conditions which usually range between +30 and -40 °C. Applications include:

  • Food processing and preparation.
  • Blast and Spiral freezers.
  • Fruit ripening rooms.
  • Storage and warehousing.
  • Distribution centres.
  • Retail solutions and dual compartment rooms.
  • Internal fire rated builds including firewalls.
  • Spray booths.
  • Drying rooms.
  • Data centres.
  • Clean rooms.
  • Pharmaceutical and laboratory environments.
  • Internal column cladding.

Guarantees:

  • 40-year guarantee on metal faced panels (limited only by the guarantee on the steel facings).
  • 25-year Hemsec panel performance.
  • 15-year internal coating guarantee, subject to project specific information.
  • 25-year thermal performance.

General information

Size

[Size, The Hemsec panel cover width is 1155 mm. Made-to-order in bespoke lengths from a minimum of 2 m up to a maximum line capability of 15 m]

-

Uniclass 2015

Pr_25_71_14_22 Carbon steel insulating sandwich panelsPrimary

CAWS

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

Specification data - Carbon steel insulating sandwich panels

Product Reference

Hemsec Control 60

Panel size

-

Length

2 m

15 m

Thickness

175 mm

Panel weight: 14.4 kg/m².

500 mm

Panel weight: 15.7 kg/m².

Steel face

100 Rib

Microrib

Smooth

Finish

Foodsafe laminate, 120 mm thickness

Polyester, 25 mm thickness

Primer/ Liner, 7–10 mm thickness

Accessories

None

Channels

Cover strips

External angles

Rebate

Not 50 mm panel. Size: 200 mm (maximum).

Thermal breaks

Standard product features

Thermal transmittance (U-value):

  • 175 mm thickness: 0.11 W/m²K.
  • 200 mm thickness: 0.10 W/m²K.

Calculated using the method required by the Building Regulations Approved Document L2 (England and Wales) and Building Standards Technical Handbook J (Scotland).

Fire performance:

  • 175 mm panel: FR60, EI30 (BS EN 13501-2) and FM 4880 rated.
  • 200 mm panel: FR60, EI60 (BS EN 13501-2) and FM 4880 rated.

- LPCB LPS 1208 Cert:558a:

LPS rating minimum FR30 for 100–200 mm thicknesses. For maximum spans under this certification, please refer to the Hemsec Fire Rating Matrix.

- FM 4880:

Class 1 fire rating of building panels or interior finish materials. For internal use only up to a maximum height of 9.1 m and for panel thicknesses between 100 and 200 mm.

Reaction to fire:

  • White Foodsafe Laminate (WFSL) faced panels and polyester faced panels have a reaction to fire according to EN 13501-1: B, s2, d0.
  • For reaction to fire classifications on other panel finishes consult the manufacturer for details.

Acoustic performance:

All panels have a tested acoustic rating, to BS EN ISO 717-1 of Rw = 26 dB.

Insulation:

  • The polyisocyanurate closed cell insulation core utilizes hydrochlorofluorocarbons (HCFC) free chemical blends, with zero ozone depletion potential (ODP) rating and a mean thermal conductivity value λ of 0.02038 W/m·K.
  • Global warming potential (GWP) rating of <5.

Panel joint:

Tongue and groove joints achieve excellent vapour resistance, hygiene seals, thermal and fire performance.

Load/ span tables:

Consult literature for details.

Product Options

Size:

The Hemsec panel cover width is 1155 mm. Made-to-order in bespoke lengths from a minimum of 2 m up to a maximum line capability of 15 m.

Steel face/ panel finish:

  • Substrate: 0.5 mm Z225 HDG.
  • Hemsec panels are available with an array of different steel finishes from various suppliers to meet all project requirements and are completed with a Smooth, 100 Rib or Microrib detail facing options.
