Heathflower - Clay Facing Brick
Verified by manufacturer 4 months ago
QA Certificate
Certificate type

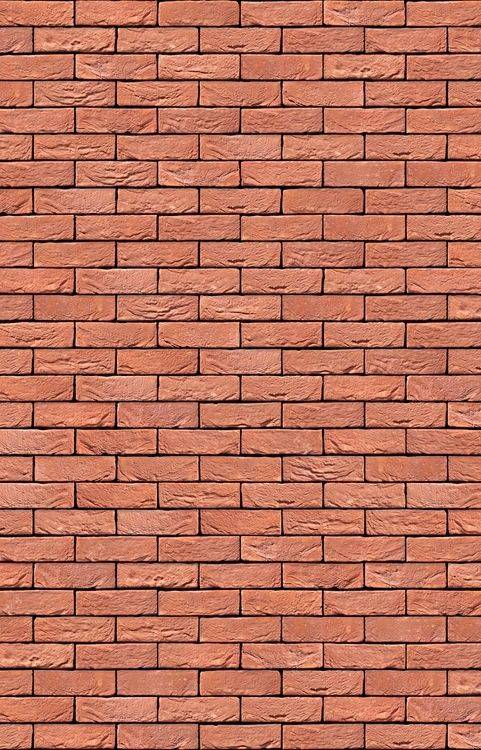

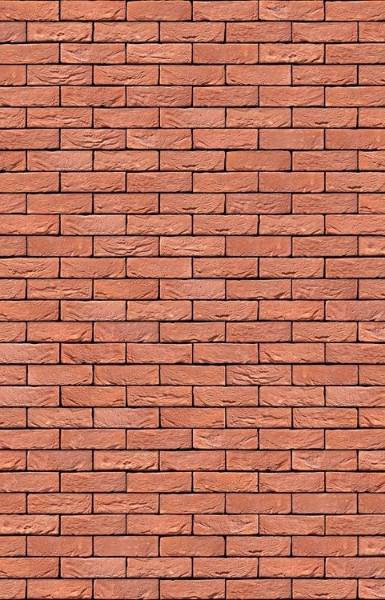

A facing brick in red with brown and pink shades, and a sanded-coated and grained structure.
Description
The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
- Hand formed.
- Single-coloured.
- Five joint styles available.
- Red base colour with brown and pink variations.
Also available as brick slips; consult manufacturer for details.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Red Brown Pink |
Finish | Sandfaced |
Material | Clay |
Shape | Rectangle |
Length | 214 mm |
Width | 101 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Red with brown and pink shades, and a sanded-coated and grained structure. |
Work size (length x width x height) | 214 x 101 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥20 N/mm².Guidance for specification option: Tested to the bed face. Normalized compressive strength: ≥20 N/mm². |
Durability designation | F2 S2. |
Density | |
Gross dry | 1580 kg/m³. |
Net dry | 1690 kg/m³. |
Tolerance | D1. |
Water absorption | ≤15% m/md.Guidance for specification option: Initial rate of water absorption, to EN 771-1:2011 - 5.3.8:
|
Configuration | Frogged. |
Thermal conductivity | ≤0.60 W/m·K.Guidance for specification option: Lambda 50/50.
|
Water vapour permeability | 5/10 µ. |
Reaction to fire | Class A1 to BS EN 13501-1. |
Jointing | Light grey. White. Joint free. Grey. Dark grey. |
Dangerous substances | NL-BSB. Guidance for specification option: According to Annex ZA 3. |
Unit weight | 2.22 kg. |
Sustainability data
Country of material origin | Manufacturer guidanceEurope. |
Country of product manufacture | Belgium |
Recyclability | Recyclable |
Third party certifications
QA Certificate
Certificate of conformity of the factory production control 0620-CPR-97882/02
