Hampton Rural Blend - Clay Facing Brick
Verified by manufacturer 5 months ago
UK Conformity Assessed (UKCA)
Certificate type
DoP
Certificate type

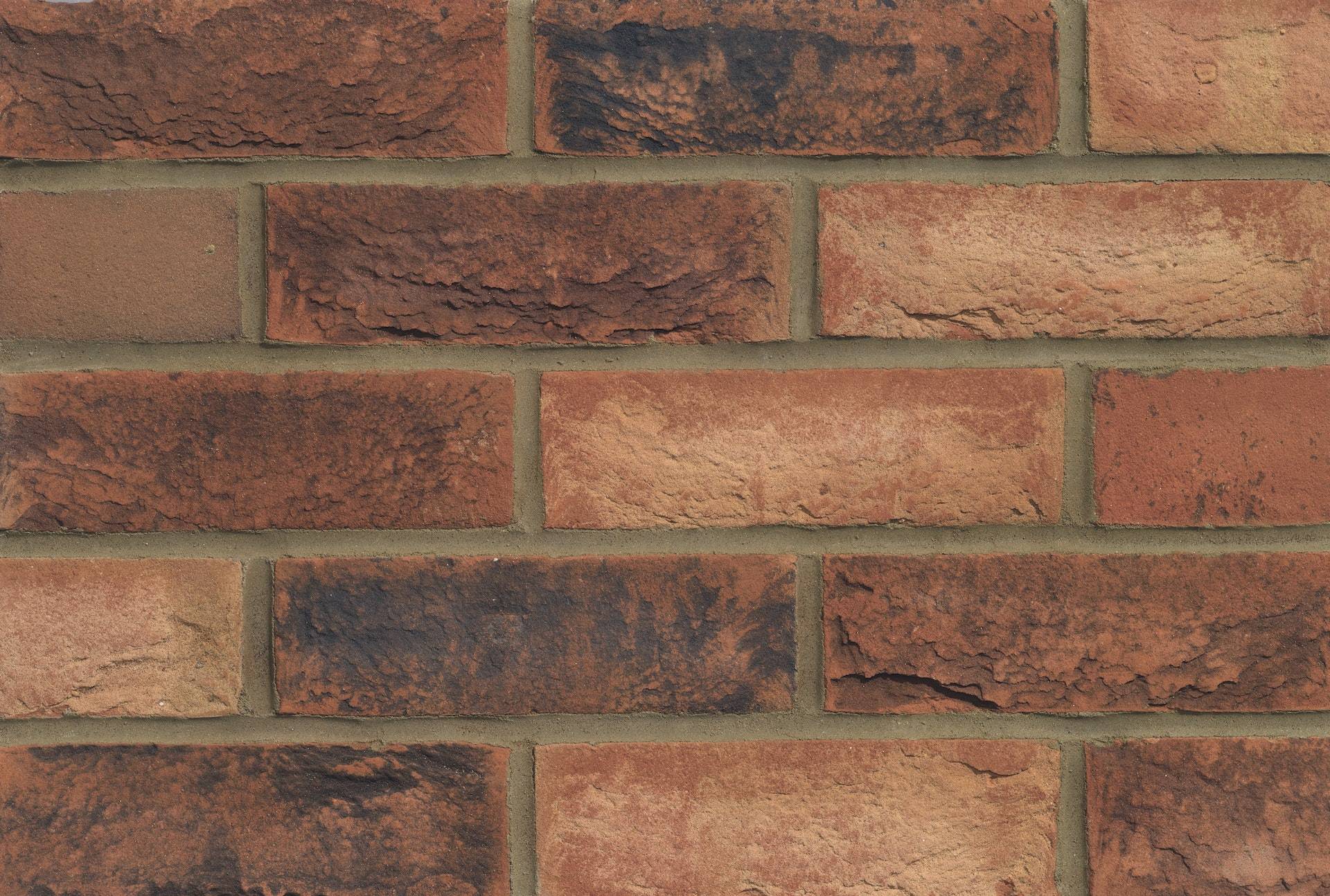

A stock thrown red brick for residential applications.
Application
For more product information please follow the link https://www.forterra.co.uk/product/hampton-rural-blend-brick/
Description
The Ecostock range is manufactured using the latest technology in sustainability and production efficiency. Forterra produce three kinds of this soft mud brick at their factory in Measham, Leicestershire: stock pressed with a smooth, sand faced finish; stock thrown, which have a traditional handmade appearance; and waterstruck, which have a smooth but irregular surface. Ecostock bricks are available in wide selection of red, buff and yellow colours.
General information
Color | Red |
Finish | Creased |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102.5 mm |
Height | 65 mm |
Uniclass | |
CAWS | M21/20 External wall insulation system . . . . . . F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Work size (length x width x height) | 215 x 102.5 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | 25 N/mm².Guidance for specification option: Equal to or more than 25 N/mm². |
Category | II. |
Durability designation | F2. |
Water absorption | Equal to or less than 13%. |
Configuration | Frogged, 5–18% voids. |
Thermal conductivity | 0.51 W/m.K [λ10,dry]. |
Water vapour permeability | 50/100 µ. |
Bond strength | Fixed 0.15 N/mm². |
Reaction to fire | Class A1 to BS EN 13501-1. |
Active soluble salts | S2. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 15 % |
Third party certifications
UK Conformity Assessed (UKCA)
Hampton Rural Blend UKCA Certificate
DoP
Hampton Rural Blend DoP Certificate
Literature
Forterra Brick Guide
Hampton Rural Blend Datasheet
Case studies
Weston Hills Carbon Neutral House
Palatine Homes
Brick Kiln Lane
