Half Round Gutter System - Aluminium Guttering
Verified by manufacturer 2 months ago
135 Serpentine gutter
135 Serpentine gutter
Warringtonfire
Certificate type
Aluminium half-round guttering.
Application
Guttering, suitable for new build and refurbishment in modern and traditional buildings. Half-Round Gutter System. Aluminium Guttering
Description
Aluminium half-round guttering.
Features and benefits:

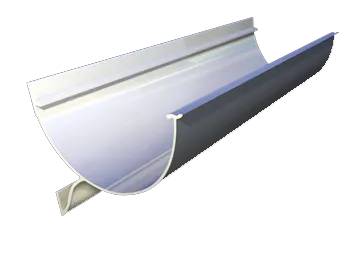

Serpentine guttering:
- With a totally distinctive, visually appealing appearance, the unique profile (Registered Design No. 2094352) allows the gutter to be fixed without brackets, resulting in speedy, economical installation.
- The lip detail at the top of the gutter section allows the joint to lock into place.
- The “Serpentine” leg feature provides snow-loading support along the full length of the gutter.

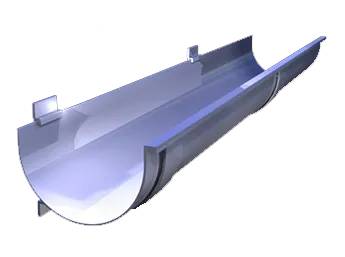

Deep run gutter:
- High flow capacity.
- Allows a reduction in the number of rainwater pipes.
- Support incorporated into the joint union results in fewer fascia brackets.
- An economical alternative to traditional cast aluminium deep-run gutters.
- The leg feature on brackets and union joints provides support in the severest of conditions, especially at joint positions.
- The front lip feature provides continuous strength at the most vulnerable point and offers attractive “edge beading”.
Snow load test reports are available, consult the manufacturer for details.
General information
Color | Silver Other Beige Black Blue |
Finish | Powder-coated Anodized Textured Metallic Other |
Material | Aluminium |
Shape | Circle |
Length | 3000 mm Guidance for specification option: Standard section length. Bespoke |
Width | 135 mm Guidance for specification option: Serpentine. 175 mm Guidance for specification option: Serpentine. 140 mm Guidance for specification option: Deep run. Manufacturer guidanceNominal sizes. |
Height | 100 mm Guidance for specification option: Serpentine. 130 mm Guidance for specification option: Serpentine. 85 mm Guidance for specification option: Deep run. Manufacturer guidanceNominal sizes. |
Warranty description | Other Manufacturer guidanceFinish warranty available and determined upon applicated based upon geographical location. |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Specification data - Aluminium eaves gutters
Form | Extruded.Guidance for specification option: 6063 T6. |
Profile | Half-round. |
Size (nominal width) | 135 mm. |
Thickness or gauge | 2 mm.Guidance for specification option: 6063 T6. |
Finish | Polyester powder-coated to BS 6496.Guidance for specification option: Standard; insert colour requirements below. Anodized.Guidance for specification option: Insert colour requirements below. Heritage textured.Guidance for specification option: Insert colour requirements below. Metallic.Guidance for specification option: Insert colour requirements below. Special.Guidance for specification option: Insert colour requirements below. |
Colour | RAL, colour.Guidance for specification option: Insert requirements (polyester powder coating only). BS 4800, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Syntha Pulvin, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Other.Guidance for specification option: Insert requirements (all finishes). |
Film thickness (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Integral accessories | Union joint.Running outlet.Preformed gutter angle, 90° (external).Preformed gutter angle, 90° (internal).Preformed gutter angle, 135° (internal).Preformed gutter angle, 135° (external).Stop end, left hand.Stop end, right hand.Manufacturer guidanceComponents to match main gutter size where applicable. Brackets specified separately below. For purpose-made components, see Accessories. |
Brackets | Not required. |
Depth | 100 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 16 kg CO₂ eq/kg Self declared |
Recyclability | Potential 95% + recyclability |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
Warringtonfire
UK Fire Test Results
Literature

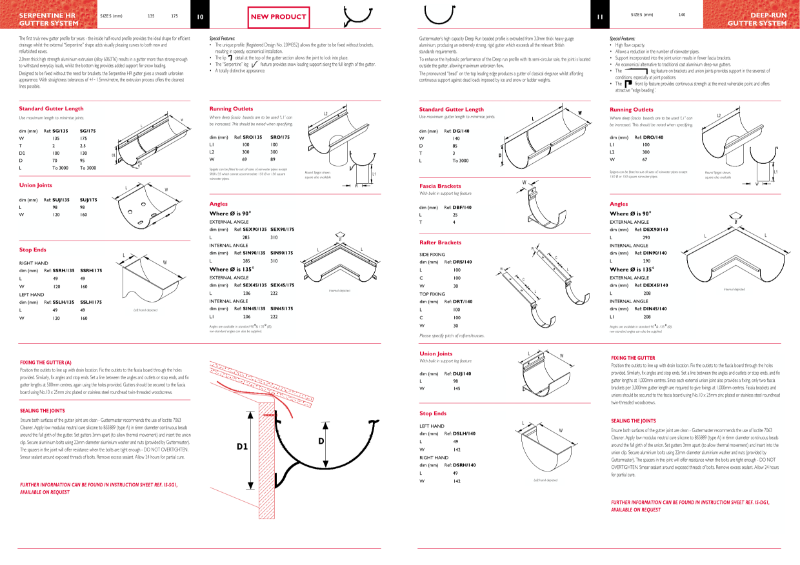

Specification Guide - Serpentine & Deep Run Gutter
