Description

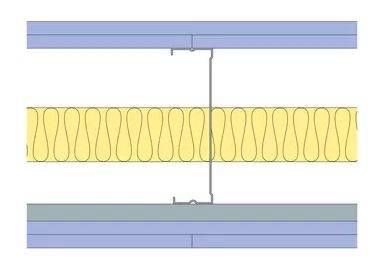

Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 146 S 50 'C' Studs at 600mm centres with Gypframe RB1 Resilient Bar at 600mm centres to one side. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4200mm.

General information

Finish

-

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Width

213 mm

Height

4200 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Resilient

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Head channel: Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Stud: Gypframe 146 S 50 'C' Stud.
Abutments and openings: Gypframe 146 S 50 'C' Stud.

Insulation

Insulation, Layer 1: 50mm Isover Acoustic Partition Roll (APR 1200).

Resilient layer

Horizontal bar type, Side 1: Gypframe RB1 Resilient Bar.

Linings

Board side 1, Layer 1: Gyproc SoundBloc 12.5mm.
Board side 1, Layer 2: Gyproc SoundBloc 12.5mm.
Board side 2, Layer 1: Gyproc SoundBloc 12.5mm.
Board side 2, Layer 2: Gyproc SoundBloc 12.5mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 1, Layer 2: British Gypsum Drywall Screws 35mm.
Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 2, Layer 2: British Gypsum Drywall Screws 35mm.
Horizontal bar fixing: British Gypsum Wafer Head Drywall Screws 13mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Resilient/A316016-A-EN#details

Fire resistance

BS EN 1364-1, 60 / 60 Integrity / Insulation

Sound insulation

BS EN ISO 140-3, 62 Rw dB / 56 Rw + Ctr dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

4200mm

Partition thickness

213mm
