GypWall Resilient - A316013 (EN)
Verified by manufacturer 3 months ago
Description

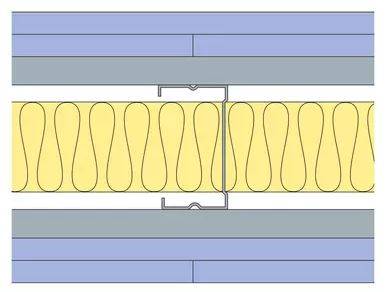

Two layers of Gyproc SoundBloc 15mm each side of Gypframe 70 S 50 'C' Studs at 600mm centres with Gypframe RB1 Resilient Bar at 600mm centres to both sides. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 3200mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 162 mm |
Height | 3200 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
SKU Code | SP00010336 |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Head channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Stud: Gypframe 70 S 50 'C' Stud. Abutments and openings: Gypframe 70 S 50 'C' Stud. |
Insulation | Insulation, Layer 1: 50mm Isover Acoustic Partition Roll (APR 1200). |
Resilient layer | Horizontal bar type, Side 1: Gypframe RB1 Resilient Bar. Horizontal bar type, Side 2: Gypframe RB1 Resilient Bar. |
Linings | Board side 1, Layer 1: Gyproc SoundBloc 15mm. Board side 1, Layer 2: Gyproc SoundBloc 15mm. Board side 2, Layer 1: Gyproc SoundBloc 15mm. Board side 2, Layer 2: Gyproc SoundBloc 15mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 1, Layer 2: British Gypsum Drywall Screws 40mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 2: British Gypsum Drywall Screws 40mm. Horizontal bar fixing: British Gypsum Wafer Head Drywall Screws 13mm. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Resilient/A316013-EN#details |
Fire resistance | BS EN 1364-1, 90 / 90 Integrity / Insulation |
Sound insulation | BS EN ISO 140-3, 65 Rw dB / 57 Rw + Ctr dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 3200mm |
Partition thickness | 162mm |
