Description

Anhydrite screed specially formulated to offer a strong and durable ultra-thin topping to a solid interior substrate, such as in situ concrete, beam and block or precast concrete plank. It is designed to meet class A for impact resistance and due to its ultra-thin depth it can be dried quickly, allowing rapid return to service and application of finished floor coverings.

Gypsol TS-15 ultra thin flowing screed is perfectly suited to flooring applications where height is extremely restricted and offers a lightweight cost effective alternative to smoothing compounds. The screed is designed to be laid to a minimum depth of 15 mm and can be used either bonded directly to a solid substrate prepared in accordance with BS 8204-7 or un-bonded on a polythene membrane.

General information
Features

Suitable for projects with height restrictions, refurbishment, and as an overlay for underfloor heating, quick drying, lightweight, quick application, ergonomically friendly installation, protein free

Uniclass 2015 Ready-mixed self-smoothing calcium sulfate screeds (Pr_35_31_06_72)
Specification data
Product Reference

Gypsol TS-15 Ultra Thin Flowing Screed

Standard product features

Physical properties:

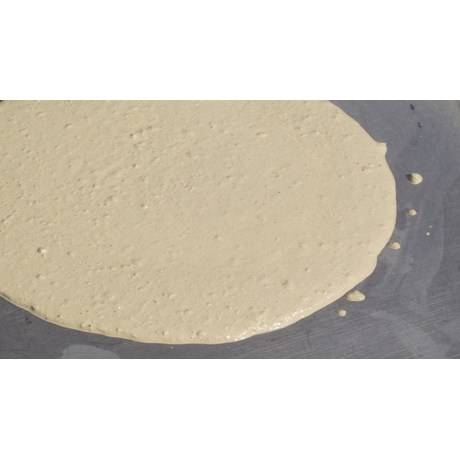

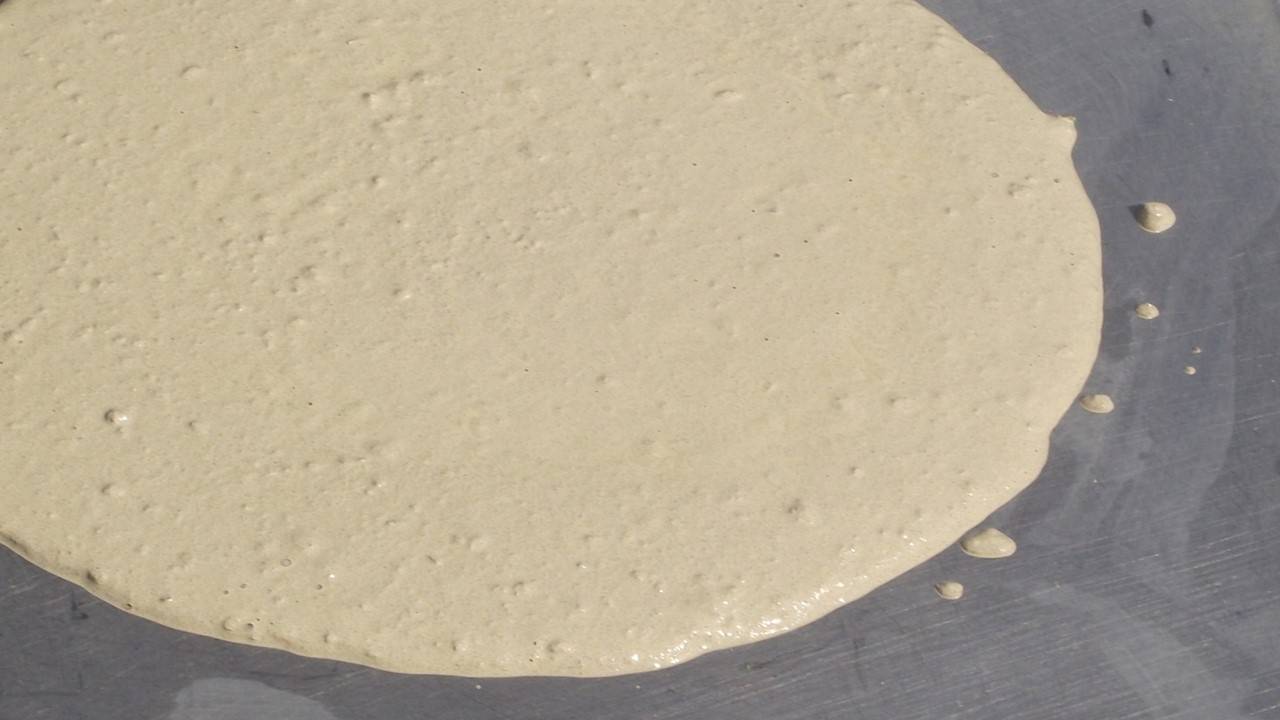

  • Appearance: Off white fluid mortar.
  • Density: Wet: 2200 kg/m³, dry: 2000 kg/m³.
  • Minimum strength (28 days): C35-F6.
  • Required flow (to BS EN 13454-2): 230–270 mm.
  • Fire rating: Class A1fl.

Application (minimum depth):

Unbonded: 15 mm.

Drying time:

  • Foot traffic: 24–48 hours.
  • Loading: 5–7 days.
  • Drying rate (20°C/60% RH):1 mm/ day.
  • Force drying: Can be force dried after 7 days.

Application (minimum depth):

  • Bonded: 15 mm.
  • Unbonded: 15 mm.

Gypsol TS-15 Screed is suitable for use on a suitably engineered solid substrate.

Environmental:

  • Recycled content: Binder: 98%, mortar: up to 40%.
  • Carbon emissions: Binder: 10–20 kg/tonne, mortar: 20–40 kg/m³.
  • VOC: Virtually zero.
  • Recyclability: 100%.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2016 4 2.0
Download now from NBS National BIM Library
