GTI Max Connect - Tile - Vinyl flooring

Verified by manufacturer 2 months ago

0263 Bora

Gerflor Flooring UK Limited Variant:

Removable, interlocking, loose-lay, heavy-duty tile designed for industrial applications.

Jump to:
BOS
01625 428 922 Website

Application

Suitable for extreme heavy-duty applications: resistant to industrial traffic, including fork-lift trucks. Ideal for industrial areas, supermarkets and DIY/ trade shops.

Description

A 6 mm-thick, multi-layered, interlocking, loose-lay vinyl tile with a PUR+ surface treatment. GTI Max Connect is a removable tile designed for industrial applications and suitable for very high traffic areas. Its distinctive and advanced design allows it to withstand the heaviest traffic. The patented interlocking design, with double glass fibre grids in a 4 mm-thick recycled interlayer, provides extreme dimensional stability against rolling loads. Densely pressed colour chips throughout the 2.0 mm-thick pure colour wear layer provide a high level of wear resistance.


Features and benefits:

  • Fast and easy installation, no need to close premises.
  • A highly durable PUR+ surface treatment for easy maintenance.
  • Extremely hardwearing – triple pressed at over 3000T.
  • Wear group T/ Type binder content I.
  • Slip resistant – R10.
  • Reduced noise of foot and rolling traffic.
  • 100% recyclable and contains up to 80% recycled content.
  • Also available as the GTI Max Cleantech tile (without the dovetails - not interlocking, 600 x 600 mm), specified separately.

Installation and maintenance:

Should be installed in accordance with the BS 8203: 2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available; consult manufacturer for details.

General information

Color

Other

Guidance for specification option:

Please see specification data for options.

Material

Vinyl

Shape

Square

Length

635 mm

Width

635 mm

Height

6 mm

Warranty description

12 year

Uniclass

Pr_35_57_71_68 Polyvinyl chloride (PVC) tilesPrimary

CAWS

M50/120 Interlocking resilient floor tiling

M50/10 Resilient floor tiling

Product range

Tiles / Fast Track Loose Lay
Tiles / Gym/Fitness Flooring
Sports Flooring / Gym Flooring
Sports Flooring / Health/Fitness Flooring

Specification data - Polyvinyl chloride (PVC) tiles

Standard

To BS EN ISO 10582.

Use class

To BS EN ISO 10874, class 34-43.

Guidance for specification option:

Commercial, very heavy - Light industrial, heavy.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

R10.

Guidance for specification option:

To DIN 51130

Recycled content

80%.

Guidance for specification option:

Contains up to 80% recycled content.

Size

635 x 635 mm.

Thickness

6 mm.

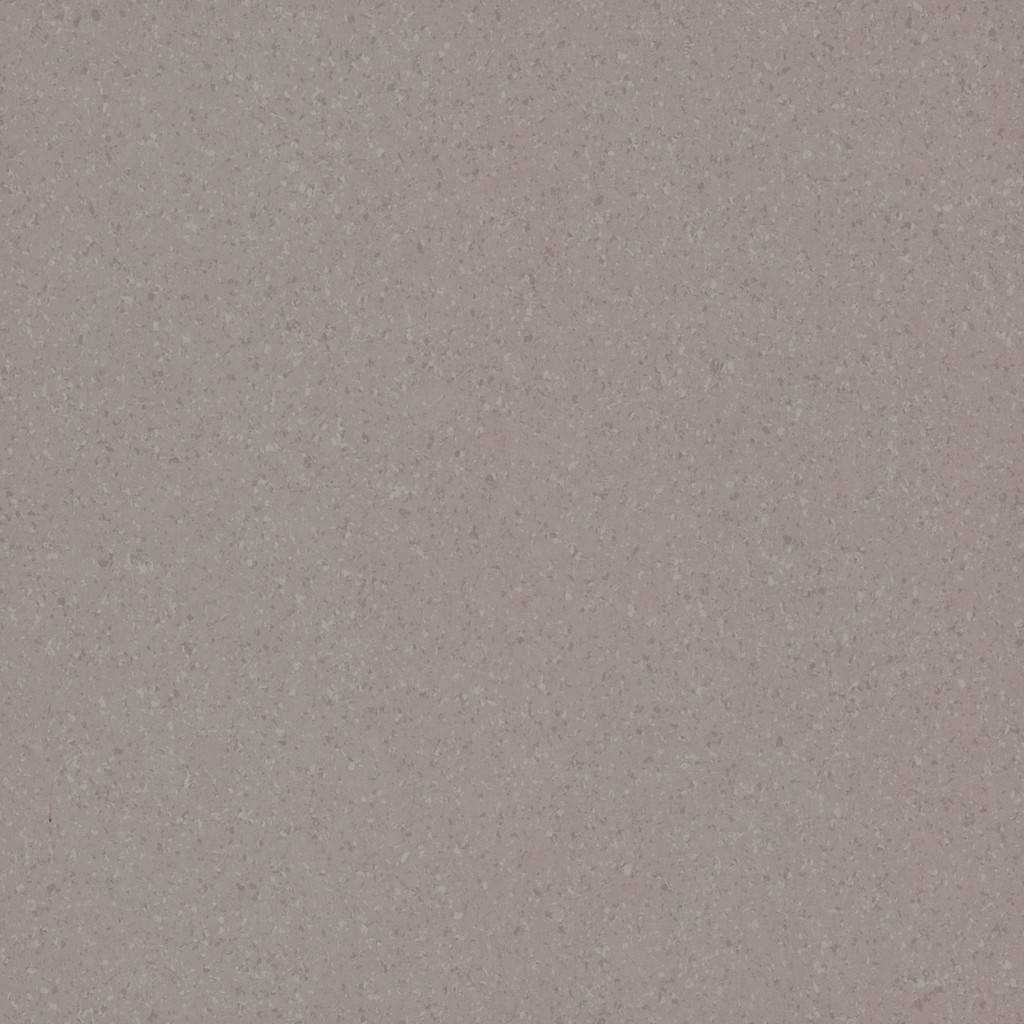

Colour and pattern

Bora.

Wear layer

2.0 mm.

Weight

9365 g/m².

Static electricity

<2 kV.

Guidance for specification option:

to BS EN 1815

ThermalConductivity

0.25 W/m·K.

Guidance for specification option:

to BS EN 10456

Fire rating (to BS EN 13501)

Bfl-s1.

Guidance for specification option:

BS EN 13501-1

Surface treatment

PUR+.

Wear group

T.

Guidance for specification option:

To NF 189.


Binder

Type I.

Guidance for specification option:

Binder content to BS EN ISO 10582.

Accessories

Not required.

Corners.

Access ramp.

Aluminium ramp.

Entrance matting.

Guidance for specification option:

Please contact Gradus for further information on matting.

VOC emissions

<100 µg/m³.

Guidance for specification option:

ISO 16000-6 TVOC after 28 days.

Colour (Light reflectance value (LRV)

31.0.

Sustainability data

Contains Red List materials

No

Material

Vinyl

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

Guidance for specification option:

Up to 80% recycled content.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit
-

1

Literature

GTI Max - Fast Track Vinyl Flooring Tiles

GTI Max - Fast Track Vinyl Flooring Tiles

Fitness Solutions Brochure

Fitness Solutions Brochure

Case studies

Glasgow Science Centre

Glasgow Science Centre

Les Ormes Sports Centre

Les Ormes Sports Centre

Ports of Jersey Ferry Terminal

Ports of Jersey Ferry Terminal

Bingham Leisure Centre

Bingham Leisure Centre

The Gym Group

The Gym Group

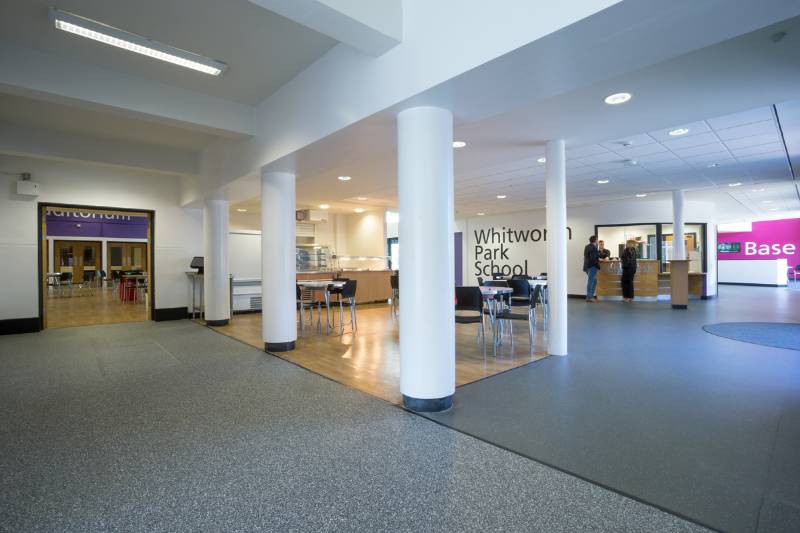

Whitworth Park School
