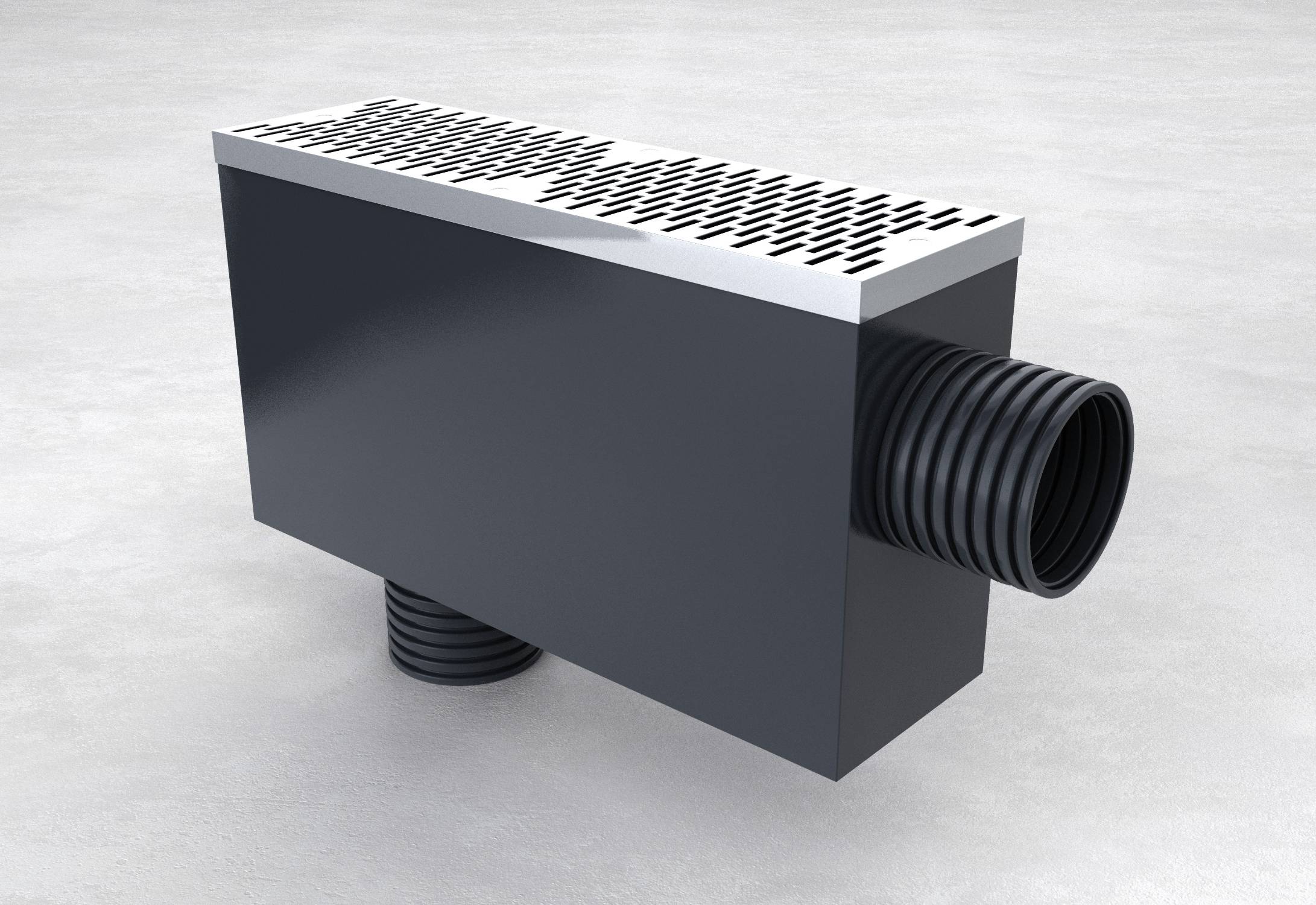

Ground Level Vent Box - CGV-020
External ground level vent box used to provide safe passage of ground gases from beneath a building to the atmosphere. Available with a range of different lid types and finishes.
A range of ground level vent boxes designed to provide a practical and aesthetic method of venting ground gases from beneath a building, to the external atmosphere. The vent boxes are designed to be connected to one of the Cordek passive gas venting systems and installed within the external landscaping. The use of vent boxes is recommended where the use of alternative vent options is precluded due to the type of external wall construction i.e. cladding, glazed façades.
Features:
- Various different vent box dimensions and geometries.
- Range of lid types, manufactured from either stainless or galvanized steel.
- Vent box lids available with either perforations or slots to suit project requirements and venting design.
- Supported by full range of accessories to provide robust connection to Cordek venting system.
- Include base connection to stormwater collection, land drainage or soakaway system.
| Features | Side connection into vent box prevents surface water from entering the gas inlet, base connection to stormwater collection, land drainage or soakaway system, removable mesh over drain outlet to prevent blockage by debris |
| Material | Lid: Galvanized steel |
| Shape | Rectangular |
| Size | 500 x 150 x 275 mm |
| Uniclass 2015 |
| Product Reference | CGV-017Ground level vent box, no lid. CGV-018Ground level vent box, stainless steel slotted lid. CGV-019Ground level vent box, stainless steel perforated lid. CGV-020Ground level vent box, galvanized steel slotted lid. CGV-021Ground level vent box, galvanized steel perforated lid. CGV-022Circular gulley vent, stainless steel perforated lid. CGV-023Rectangular gulley vent, stainless steel perforated lid. CGV-024Rectangular gulley vent, stainless steel slotted lid. |
| Accessories | Insert requirement, a range of connection accessories are available, consult manufacturer's literature for more information. |
| Standard product features | Product reference: - Ground level vent box:
- Circular gulley vent:
- Rectangular gulley vent:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | Revit 2016 | 5 | 2.0 |
 IFC | IFC2X3 | 2 | 1.3 |
