Grassflex Rubber Tiles - Rubber Tile

Verified by manufacturer 1 month ago

Castle Composites Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

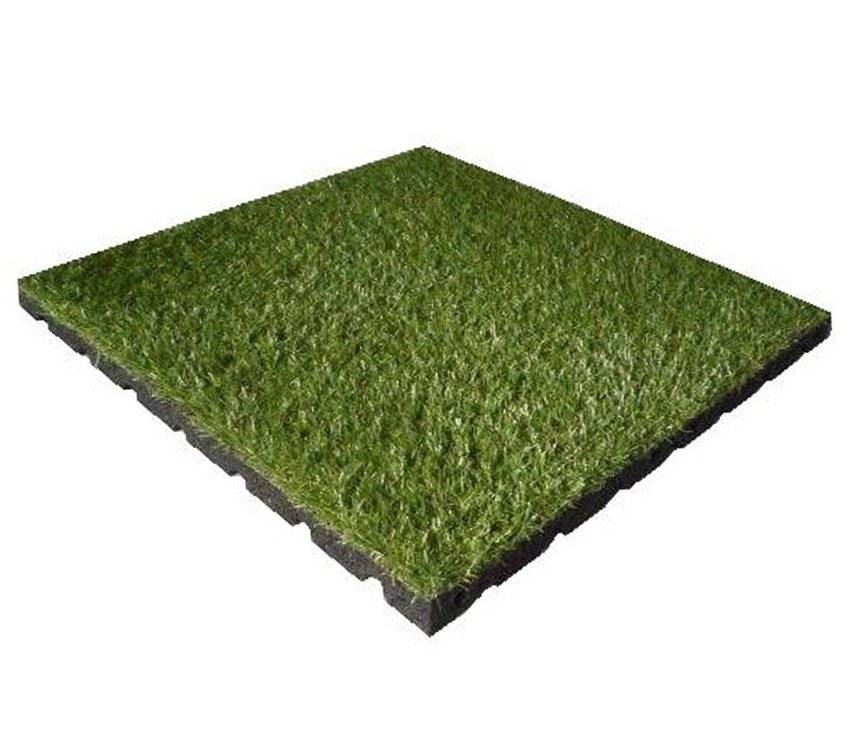

Recycled rubber granulate tiles topped with artificial grass.

Jump to:
BOS
+44 (0) 1555 870 003 Website

Application

  • Suitable for use on flat roof and balcony applications.
  • An interlocking variant is also available, consult manufacturer for details.

Description

Recycled rubber granulate tiles topped with artificial grass.


Features and benefits:

  • The base is safe for use on waterproofing membranes.
  • Manufactured with drainage channels on the underside, meaning the tiles are water permeable to 250 mm per hour. They can allow rainwater to flow through the tiles and off the waterproofing through the drainage channels on the underside.
  • Manufactured in accordance with EN 1176.
  • Bonded laying, drainage channels on the underside.
  • Interlocking laying, drainage channels on the underside.

General information

Color

Green

Finish

Anti-slip

Material

Polyurethane

Shape

Square

Length

500 mm

Width

500 mm

Height

30 mm

Warranty description

Three year

Uniclass

Pr_35_57_71_36 Granular rubber tilesPrimary

CAWS

Q26/350 Synthetic grass surfacing

M50/110 Resilient floor tiling

Product range

Rubber Tiles
Artificial Grass
Paving

Specification data - Granular rubber tiles

Standard

To BS EN 1176; EN 12616; EN 13501 and EN 6946.

Recycled content

80%.

Size

500 x 500 x 25 mm.

500 x 500 x 30 mm.

1000 x 1000 x 25 mm.

Thickness

25 mm.

30 mm.

Water permeability

250 mm per hour to EN 12616.

Smoke classification

S2.

Insulation value

Rd: 0.15 to EN 13165, U-value: 3.13 W/m²·K to EN 6946.

Density

800 kg/m³.

Colour

Green.

Material:

Recycled rubber granulate, bound using polyurethane (PE) binding agent with artificial grass top.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Material

Polyurethane

Recyclability

80

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Certification

Literature

Castleflex Rubber Tile - Install Guide

Castleflex Rubber Tile - Install Guide

2435 PU Adhesive - Data

2435 PU Adhesive - Data

Grassflex Rubber Tile - Data

Grassflex Rubber Tile - Data
