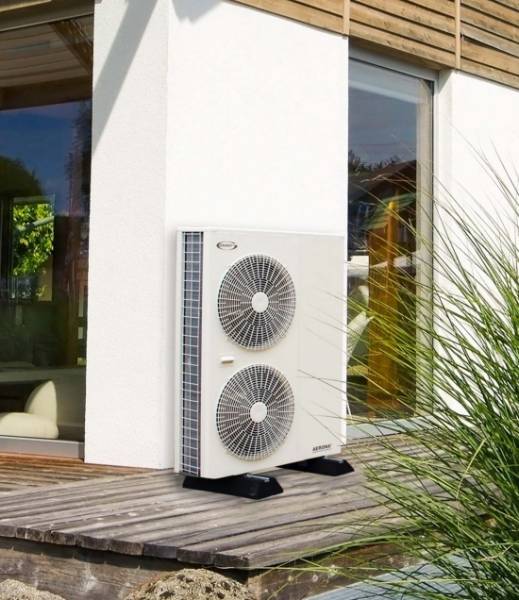

Grant Aerona³ 17kW R32 Inverter Driven Air Source Heat Pump

Name: Grant Aerona³ 17kW R32 Inverter Driven Air Source Heat Pump
Brand: Grant Engineering (UK) Ltd
SKU: jtdPGhvZBcfwketGXrQTBR

Verified by manufacturer 2 months ago

Grant Engineering (UK) Ltd

Third party certifications:

Quiet Mark Certification
Certificate type
ISO 9001 Quality Management
Certificate type
BBA Agrément Certificate
Certificate type

The Grant Aerona³ range of air source heat pumps provide a clean and effective alternative to traditional methods of domestic heating. Four models from 6 kW – 17 kW are available in the range.

Jump to:

BOS

+44 (0)1380 736920 Website

Application

Suitable for domestic heating.

Description

Incorporating R32 refrigerant, the four single phase models (6 kW, 10 kW, 13 kW and 17 kW), are clean and more eco-friendly, while also being effective. Each Aerona³ unit operates at high efficiencies even when the external temperatures are low, allowing homeowners to lower their dependency on fossil fuels while also reducing their annual fuel bills. Heat pump models also have minimal impact on their surroundings, being compact in size and quiet in operation.

Features and benefits:

Single phase with 17 kW output.
Global Warming Potential of 675.
DC inverter driven.
In-built weather compensation.
In-built frost protection.
Suitable for use with S & W Plan heating control systems.
Quiet operation.
Base tray heating operation.
Compact footprint.
Sustainability performance: ErP rating A+++.

General information

Color	Grey
Finish	Galvanized Painted
Material	Steel
Shape	Rectangle
Length	403 mm
Width	1024 mm
Height	1418 mm
Warranty description	Seven year Guidance for specification option: Up to seven year guarantee.

Uniclass	Pr_70_60_37_04 Air-to-water heat pumpsPrimary
CAWS	T90/505 Air-to-water heat pumps T90/505 Air-to-water heat pumps

Specification data - Air-to-water heat pumps

Standards	-
Test requirements	To BS EN 14511, BS EN ISO 3743-1: 2010.
Heat pump type	Air to water monobloc.
Mode	Heating.
Output	-
Heating	4.54 (SCOP BS EN 14511 air 7°C/ water 35°C).
Fan	-
Type	Propellor, high efficiency DC fan motor.
Electrical supply type	Single phase.
Compressor	-
Drive	Inverter driven.
Refrigerant	R32.

Global warming potential (GWP)	675.
Dimensions	1418 x 403 x 1024 mm.
Material/ Finish	Mild steel, galvanized and painted.
Weight	Empty: 118 kg, Packed: 120 kg.
InputPower	3.76 kW.
Operating temperature range	-20 to +43°C.
Power supply	230 V, Single phase, 50 Hz.
Overall sound power level	61.6 dB.
Power output	17 kW.

Sustainability data

Country of material origin	China
Country of product manufacture	Japan
Material	Steel
Recyclability	In order for the heat pump to be recycled or disposed of it must be taken to a suitably licensed waste facility. A qualified refrigeration engineer must be used to do this.
