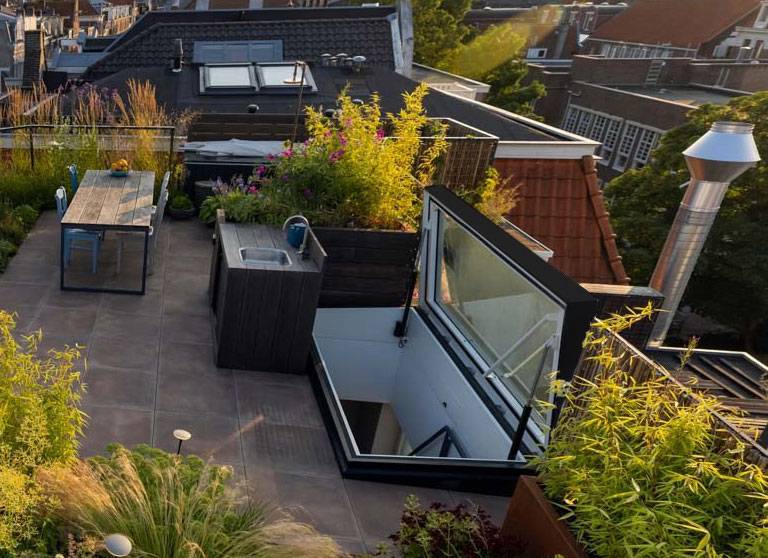

Glazed Roof Access Hatch RHTG with Fixed Stairs
Verified by manufacturer 5 days ago
Provision of practical and safe access to flat roofs for maintenance work or to a rooftop terrace, via fixed stairs. Can be installed on flat roofs with a maximum pitch of 5°.
Application
- Provision of practical and safe access to flat roofs for maintenance work or to a rooftop terrace.
- Can be installed on flat roofs with a maximum pitch of 5°.
- For use in buildings or homes where natural daylight is wanted in the rooms below. This can be apartments with a roof terrace, homes with few windows, office buildings or other non-residential constructions.
- Roof hatches generally only suitable for concrete, steel and wooden roofs.
Description
Provision of practical and safe access to flat roofs for maintenance work or to a rooftop terrace, via fixed stairs. Can be installed on flat roofs with a maximum pitch of 5°.
Features and benefits:
- CE (ETA-18/0831), TÜV NORD (GS55) and Aboma certified.
- Fully thermally broken curb and cover.
- Burglar-proof and fall protection HR+++ glass.
- Fixed stair with automatic adjustment of treads for easy installation.
- Available for roof heights of 2500–3000 mm (GS50) and 3000–3370 mm (GS55).
- Tilt angle depending on floor height 50–66° (GS50) or 55–65° (GS55).
- Safe grip all the way to the roof.
- Standard electric control.
- Ten-year warranty on the roof hatch, one year on electric operation.
- High-quality patented construction.
Also available in as a standard non-glazed hatch, in special sizes, with a ladder, with scissor or fixed stairs, or fire rated (all specified separately).
General information
Color | White Black Guidance for specification option: External only. |
Finish | Powder-coated |
Material | Glass |
Shape | Rectangle Square |
Length | 1500 mm 2000 mm 2500 mm 3000 mm |
Width | 1000 mm |
Height | 476 mm Guidance for specification option: Roof hatch only; standard (closed) height above roof deck. Bespoke Guidance for specification option: See stair height options. |
Warranty description | Ten year Guidance for specification option: Roof hatch. One year Guidance for specification option: Electric operation and climbing devices. |
Uniclass | |
CAWS | L20/60 Doors L20/630 Hatches |
SKU Code | RHTG1015, RHTG1020, RHTG1025, RHTG1030, GS50, GS55 |
Sustainability data
Country of product manufacture | Netherlands |
Material | Glass |
Literature
Gorter - Glazed roof hatch RHTG Brochure
