Description

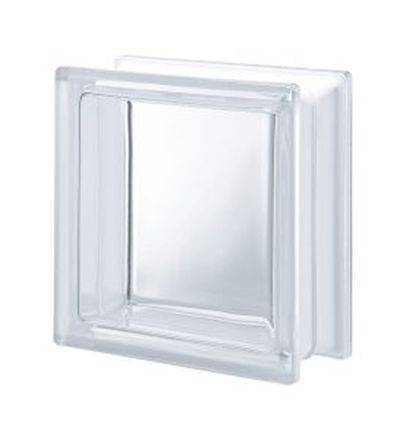

Technology Line is a collection of high-performance glass blocks. The glass blocks are ideal for applications requiring light control, safety (fire resistance, reinforced structure), thermal insulation and sound insulation, in addition to traditional luminosity. With over 80 references in a large range of formats, thicknesses and finishes, the range contains glass blocks for both vertical and horizontal structures.

The technical, dimensional and aesthetic features meet the requirements of DIN 18175/77, EN 1051-1 and -2.

The glass blocks (in accordance with EN 1051-1) belong to Class 1, which is the highest quality level available.

General information
Specification data
Product Reference

Glass Blocks – Technology Line

Type

Various options available; consult literature and insert requirements.

Colour/ Finish

Various options available; consult literature and insert requirements.

Accessories

Cast-iron grid and plastic tile, 140 x 140 mm

For B 1414/5 Circles.

Cast-iron grid and plastic tile, 200 x 200 mm

For B 1919/7 Circles.

Expansion joint

Placed on the side and above the panel for absorbing movement of the structure.

Openable frame, 265 x 275 x 90 mm

For 240 x 240 x 80 mm blocks.

Openable frame, 265 x 530 x 90 mm

For 240 x 240 x 80 mm blocks.

Openable frame, 520 x 275 x 90 mm

For 240 x 240 x 80 mm blocks.

Openable frame, model A, 215 x 225 x 90 mm

For 190 x 190 x 80 mm blocks.

Openable frame, model B, 215 x 425 x 90 mm

For 190 x 190 x 80 mm blocks.

Openable frame, model C, 420 x 425 x 90 mm

For 190 x 190 x 80 mm blocks.

Plastic grid and tile, 137 x 137 mm

For B 1414/5 Circles.

Plastic grid and tile, 195 x 195 mm

For B 1919/7 Circles.

Plastic tile, 230 x 230 mm for 195 x 195 mm blocks

Plastic tile, 230 x 230 mm for 200 x 200 mm blocks and B 2020/2 Circles

Spacers

Various options available; consult literature for details.

Stainless steel rod

For reinforcing the wall.

Vetromalta Bianca

White pre-mixed mortar for installing and finishing vertical glass structures.

Vetromalta Grigia

Grey pre-mixed mortar for installing and finishing vertical glass structures.

Standard product features

Accessories:

- Openable frame:

Designed for room ventilation; the painted aluminium openable frame can house one, two or four square blocks.

- Spacer:

Plastic spacers which vary according to the size of the necessary joint, block thickness and the type of wall; placed between one block and another, they create evenly spaced joints, keeping the framework rod aligned and away from the glass blocks.
