Description

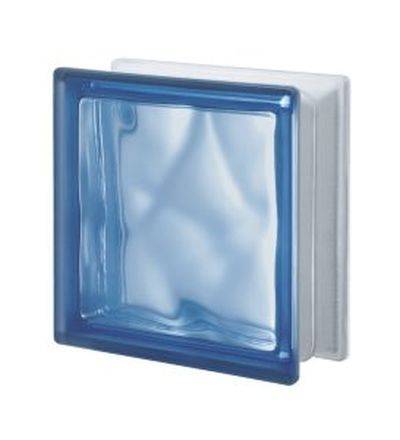

The Pegasus 'winged' collection offers a complete range of special colours, sizes, surfaces and finishes.

The range enhances the aesthetics of the wall by removing any interruption in the continuity of glass.

Available in two sizes, 190 x 190 x 80 mm square blocks and 19 x 94 x 80 mm rectangular blocks, with special pieces (end blocks for finishing walls and corners) for an all-glass look. The Pegasus line has over 200 products with two glass surfaces (smooth and wavy) and four finishes (transparent, satin on one side, satin on both sides, and metallized).

Used to create walls which are extraordinarily light and aesthetically refined. The supporting elements, housed in the joints, are invisible.

The technical, dimensional and aesthetic features meet the requirements of DIN 18175/77, EN 1051-1 and -2.

The glass blocks (in accordance with EN 1051-1) belong to Class 1, which is the highest quality level available.

General information
Size

Q19 190 x 190 x 80 mm

Weight: 2.3 kg.

R09 190 x 94 x 80 mm

Weight: 1.3 kg.

Ter lineare 190 x 190 x 80 mm

Weight: 2.2 kg.

Ter curvo 190 x 190 x 80 mm

Weight: 1.8 kg.

Angolare 190 x 190 x 80 mm

Weight: 1.7 kg.

Uniclass 2015
Glass blocks (Pr_20_93_33_34)Primary
Specification data - Glass blocks
Product Reference

Glass Blocks – Pegasus

Size

Q19 190 x 190 x 80 mm

Weight: 2.3 kg.

R09 190 x 94 x 80 mm

Weight: 1.3 kg.

Ter lineare 190 x 190 x 80 mm

Weight: 2.2 kg.

Ter curvo 190 x 190 x 80 mm

Weight: 1.8 kg.

Angolare 190 x 190 x 80 mm

Weight: 1.7 kg.

Accessories

Expansion joint

Placed on the side and above the panel for absorbing movement of the structure.

Openable frame, model A, 215 x 225 x 90 mm

Openable frame, model B, 215 x 425 x 90 mm

Openable frame, model C, 420 x 425 x 90 mm

Stainless steel rod

For reinforcing the wall.

Vetromalta Bianca

White pre-mixed mortar for installing and finishing vertical glass structures.

Vetromalta Grigia

Grey pre-mixed mortar for installing and finishing vertical glass structures.

Standard product features

Colour/ Finish:

Clear.

Product Options

Accessories:

- Openable frame:

For 190 x 190 x 80 mm glass blocks, designed for room ventilation; the painted aluminium openable frame can house one, two or four square blocks.

- Spacer:

Plastic spacers which vary according to the size of the necessary joint, block thickness and the type of wall; placed between one block and another, they create evenly spaced joints, keeping the framework rod aligned and away from the glass blocks.
