This product is no longer available

Application

For indoor use.

See manufacturer's literature for details on stains, dirt and similar surface defects.

For support thicknesses under 20 mm, a symmetric structure is recommended in order to avoid distortion. Signs of scratches and daily wear and tear are expected during normal use. Consult manufacturer for further information.

Description

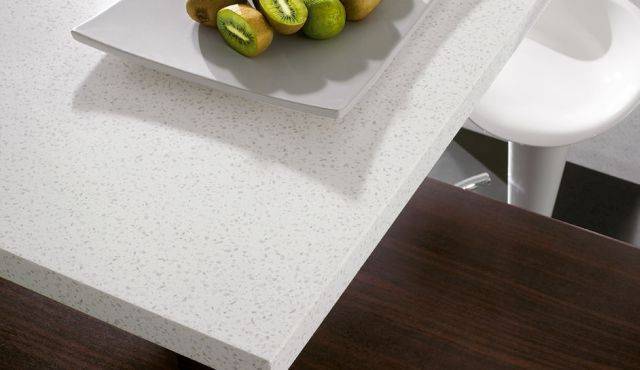

Acrylic-bound solid surface decorative sheet material according to DIN EN ISO 19712. 20 mm thick.

Features and benefits:

  • The surface is wet sanded (P 600), and the reverse side is dry sanded (P 80).
  • Food safe (according to EN 1186 and EN 13130).
  • Easy to clean.
  • Heat resistant up to 180°C (according to DIN EN ISO 19712).
  • Warm to the touch.
  • Light-fast wool standard scale 6 (according to ISO 4892, ISO 105-B02, and ISO 105-A02).
  • Repairable and renewable to the original finish if required - consult manufacturer for information.
  • Seamless joints.
  • Resistant to common household chemicals (according to DIN EN ISO 19712).
  • Impact resistant (according to DIN EN ISO 19712).
  • The surface is foil protected.

Applications:

For indoor use.

See manufacturer's literature for details on stains, dirt and similar surface defects.

For support thicknesses under 20 mm, a symmetric structure is recommended in order to avoid distortion. Signs of scratches and daily wear and tear are expected during normal use. Consult manufacturer for further information.

General information
Size

4050 x 1200 mm (minimum). Consult manufacturer and insert requirements.

Uniclass 2015
Countertops (Pr_40_30_30_18)Primary
Specification data - Countertops
Product Reference

GetaCore® Sheet Material 20 mm

33 kg/m².

Size

4050 x 1200 mm (minimum). Consult manufacturer and insert requirements.

Colour/ Finish

Consult manufacturer's literature and insert requirements.

Standard product features

Thickness:

20 mm (±0.2 mm).

Fire behaviour (to DIN 4102-1):

Construction material class B2 (normal flammability).

Technical characteristics:

  • Density (average, to DIN EN 323): 1.620 kg/m³.
  • Coefficient of thermal expansion (to DIN 53752): 5.6 x 10-5 K-1.
  • Barcol hardness (to DIN EN 59): 60.
  • Modulus of elasticity (to DIN EN 310): 8000 N/mm².
  • Indentation hardness (to DIN EN ISO 2039-1): 260 N/mm².
  • Impact resistance (falling ball test, to DIN EN ISO 19712): 2000 mm falling height.
  • Resistance to elevated temperature (long-term exposure, to DIN EN ISO 13894-1): 70°C.
  • Water absorption (to EN ISO 10545-3): 0.025%.
  • Resistance to dry heat (to DIN EN ISO 19712): 180°C (slight change in gloss level and/ or colour, only visible from certain angles).
  • Resistance to damp heat (to DIN EN ISO 19712): 100°C (slight change in gloss level and/ or colour, only visible from certain angles).
  • Thermal-cycle water-resistance test (to DIN EN ISO 19712): Pass.
  • Light-fastness (Blue scale 6, to ISO 4892, ISO 105-B02 and ISO 105-A02): Grey scale, ≥4.
  • Food-safeness (to EN 1186, EN 13130 and CEN/ TS 14234): Approved.
  • Resistance to mould and bacterial attack (to DIN EN ISO 846 A/ C): Resistant.

Product Options

Colour/ Finish:

Scratches and surface wear may become more obvious with high-gloss and colour-intensive finishes. Consult manufacturer for information.
