Genius Bespoke Planar - Aluminium Rainscreen Cladding System

Name: Genius Bespoke Planar - Aluminium Rainscreen Cladding System
Brand: Genius Facades Limited
SKU: 4P8EEsBMmVm6q3J2e382E9

Verified by manufacturer 2 months ago

Genius Facades Limited

Non-combustible lightweight external wall cladding system with concealed fixings and a fully customisable profile.

Jump to:

01922 716245 Website

Application

BBA approved fully adjustable backing system comprising of helping hand brackets vertical T/L support rails. Horizontal carrier system also available with this system. Framing allows for use with multiple substrates including traditional masonry and lightweight steel frame. Please enquire directly with enquires@geniusfacades.com for static calculation and further details.

External facade installations - masonry or lightweight steel frame.

Description

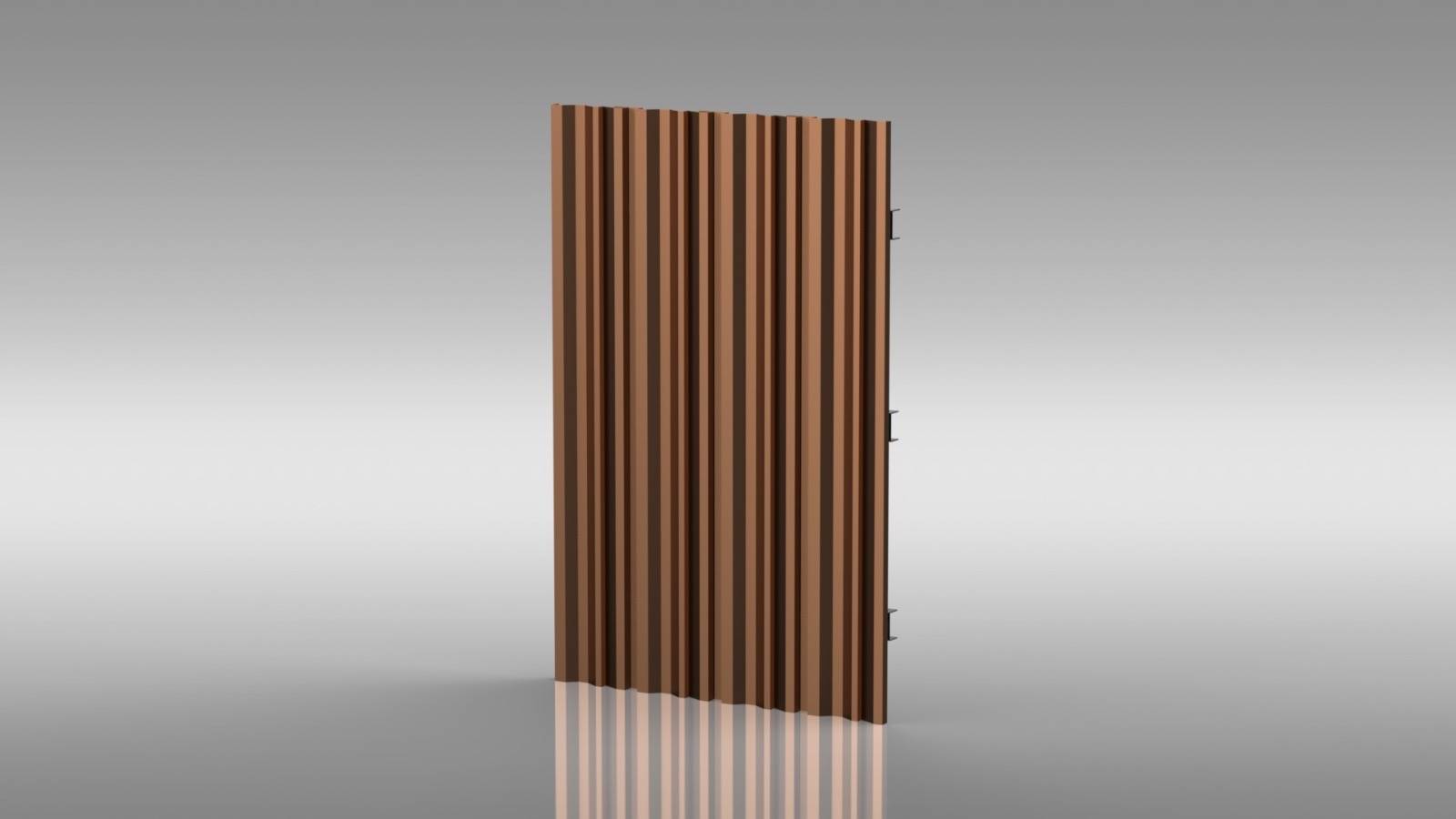

Genius bespoke planar is an extruded aluminium rainscreen facade system.

Features and benefits:

Non-combustible (A1 and A2-s1,d0).
Horizontal and vertical installation method available.
Cost effective.
Lightweight.
Uniquely profiled or curved edge design available.
Recyclable.
Concealed fixings.
Accurate.

General information

Color	Other Guidance for specification option: Extensive range of colours and textures including RAL and special metallics.
Finish	Anodized Powder-coated Guidance for specification option: Polyester powder coated PPC.
Material	Aluminium
Shape	Square Guidance for specification option: Standard. Rectangle Guidance for specification option: Rectangle with specialist curving available.
Warranty description	Guidance for specification option: Dependant on finish, material & location. Please contact to discuss.

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H20/155 Sheet cladding (attached to timber battens) H92/120 Rainscreen cladding H20/10 Sheet cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation	Mineral wool slab insulation. Guidance for specification option: Extensive range of brackets to accommodate specified thickness of mineral wool insulation and required cladding zones.
Breather membrane	-
Material	Supplied by others.
Fasteners	Supplied by others.
Secondary support structure	BBA Approved genius facades braces and rail system.
Cavity fire barriers	-
Horizontal	Supplied by others.
Vertical	Supplied by others.
Cladding panels	-
Material	3 mm Aluminium.
Panel joints	Guidance for specification option: As typical details.
Reveals	Guidance for specification option: As typical details.
Samples required	Guidance for specification option: Available on request.
System accessories	Not required. Flashings. Cappings. Trims. Window pods.

Thickness	2—3 mm. Guidance for specification option: Other. Other. Guidance for specification option: Other thicknesses available on request.
Fire classification	To EN 13501-1, A1. To EN 13501-1, A2-s1, d0.
Joint width	10 mm. 20 mm.
Rail material/ finish	Extruded aluminium, 6063/T6 grade alloy.
