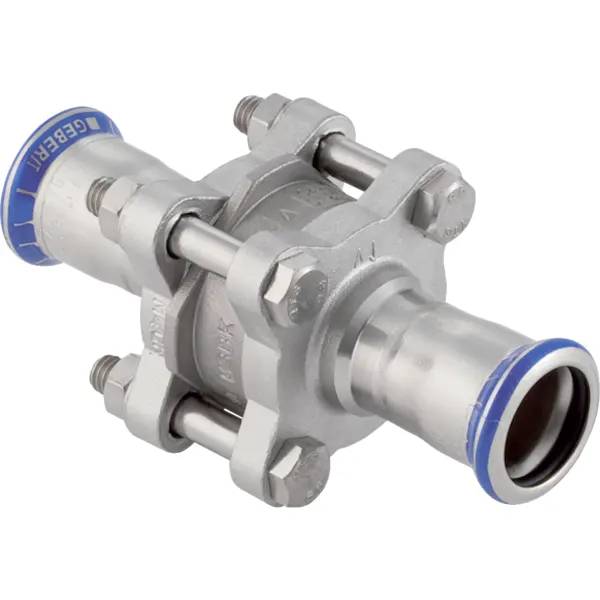

Geberit Mapress Stainless Steel non-return valve, flanged
Verified by manufacturer 2 days ago
Stainless Steel non-return valve, flanged.
Application
- For cooling and heating water without antifreeze agent.
- For cooling and heating water with antifreeze agent.
- For district heating water ≤ 120 °C.
- For service water and process water.
- For treated water (application range according to Technical Information 'Treated water').
- For grey and black water with pH value > 6.0.
- For extinguishing water (wet).
Description
Geberit Mapress Stainless Steel non-return valve, flanged.
Features and benefits:
- Valve seal made of PTFE.
- Section seal of flange made of PTFE.
- Pressing indicator.
- Leaky if unpressed.
- Seal ring made of CIIR, black.
- Pressing socket with transparent protection plug.
- Operating temperature -20 – +120 °C Product material CrNiMo steel 1.4401 (EN 10088)
General information
Color | Silver |
Material | Stainless steel |
Shape | Other |
Length | 111 mm 120 mm 126 mm 147 mm 167 mm |
Uniclass | |
CAWS | T90/444 Check valves |
SKU Code | 92140, 92142, 92143, 92144, 92145, 92146, 92147, 92148, 92149 |
Specification data - Steel alloy check valves
Classification data | |
Arrangement | |
Type | 92140 – DN12/ DNV15. Guidance for specification option: Length: 111 mm. PN40. 92142 – DN20/ DNV20. Guidance for specification option: Length: 120 mm. PN40. 92143 – DN25/ DNV25. Guidance for specification option: Length: 126 mm. PN16. 92144 – DN32/ DNV32. Guidance for specification option: Length: 147 mm. PN16. 92145 – DN40/ DNV40. Guidance for specification option: Length: 167 mm. PN16. 92146 – DN50/ DNV50. Guidance for specification option: Length: 185 mm. PN16. 92147 – DN65/ DNV65. Guidance for specification option: Length: 255 mm. PN16. 92148 – DN80/ DNV80. Guidance for specification option: Length: 285 mm. PN16. 92149 – DN100/ DNV100. Guidance for specification option: Length: 346 mm. PN16. |
Body pattern | Straight. |
Body ends | Flanged. |
Temperature (maximum) | 120°C. |
Pressure rating | PN40. PN16. |
Material | CrNiMo steel 1.4401 (EN 10088). |
Dimensions | Varies depending on product. |
Valve position | Horizontal. |
Sustainability data
Material | Stainless steel |
