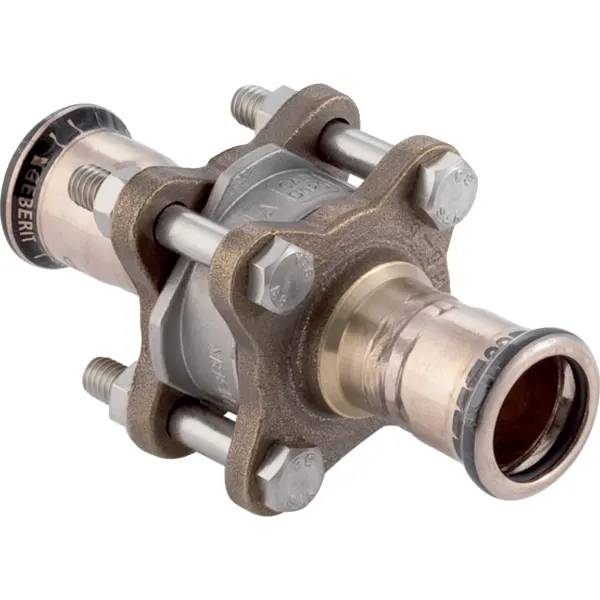

Geberit Mapress CuNiFe non-return valve, flanged
Verified by manufacturer 2 days ago
CuNiFe non-return valve, flanged
Application
- For cooling and heating water without antifreeze agent.
- For cooling and heating water with antifreeze agent.
- For service water and process water.
- For grey and black water with pH value > 6.0.
- For seawater.
- For extinguishing water (wet).
Description
Geberit Mapress CuNiFe non-return valve, flanged
Features and benefits:
- Valve made of CrNiMo steel.
- Valve seal made of PTFE.
- Section seal of flange made of PTFE.
- Pressing indicator.
- Leaky if unpressed.
- Seal ring made of CIIR, black.
- Pressing socket with transparent protection plug.
General information
Color | Bronze |
Material | Copper Nickel |
Shape | Other |
Length | 111 mm 120 mm 126 mm 147 mm 167 mm |
Uniclass | |
CAWS | T90/444 Check valves |
SKU Code | 92150, 92152, 92153, 92154, 92155, 92156, 92157, 92158, 92159 |
Specification data - Steel alloy check valves
Classification data | |
Arrangement | |
Type | 92150 – DN12/ DNV15. Guidance for specification option: Length: 111 mm. PN13. 92152 – DN20/ DNV20. Guidance for specification option: Length: 120 mm. PN13. 92153 – DN25/ DNV25. Guidance for specification option: Length: 126 mm. PN13. 92154 – DN32/ DNV32. Guidance for specification option: Length: 147 mm. PN13. 92155 – DN40/ DNV40. Guidance for specification option: Length: 167 mm. PN13. 92156 – DN50/ DNV50. Guidance for specification option: Length: 185 mm. PN13. 92157 – DN65/ DNV65. Guidance for specification option: Length: 255 mm. PN10. 92158 – DN80/ DNV80. Guidance for specification option: Length: 285 mm. PN10. 92159 – DN100/ DNV100. Guidance for specification option: Length: 346 mm. PN10. |
Body pattern | Straight. |
Body ends | Flanged. |
Temperature (maximum) | 120°C. |
Pressure rating | PN10. PN13. |
Material | CuNi10Fe1.6Mn, material no.2.1972.11. |
Dimensions | Varies depending on product. |
Valve position | Horizontal. |
Sustainability data
Material | Copper Nickel |
