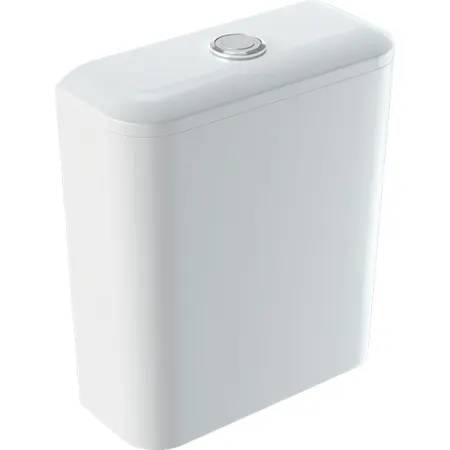

Geberit iCon Square exposed cistern, close-coupled, dual flush, bottom water supply connection

Verified by manufacturer 2 days ago

Geberit Sales Ltd

Geberit iCon Square exposed cistern, close-coupled, dual flush, bottom water supply connection.

Jump to:
+44 (0)1926 516800 Website

Application

  • For water supply connections 1/2''.
  • For close-coupled installation.

Description

Geberit iCon Square exposed cistern, close-coupled, dual flush, bottom water supply connection. Type 1, full flush volume 6 L in accordance with EN 997.

General information

Color

White

Material

Vitreous china

Shape

Rectangle

Length

375 mm

Width

145 mm

Height

425 mm

Uniclass

Pr_40_20_93_89 WC cisternsPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

SKU Code

500.411.01.1

Specification data - WC cisterns

Form

Exposed cistern, close-coupled.

Operation

Push-button.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

White.

Capacity

6/4 L dual flush.

Guidance for specification option:

Flush volume small, adjustment range: 3/ 4 L.

Water supply, overflow and outlet holes

-

Water supply

Bottom inlet.

Overflow

None (internal).

Outlet

Bottom outlet.

Sustainability data

Material

Vitreous china
