GDL Roof Balcony
Verified by manufacturer 6 months ago
EPD
Certificate type
Timber roof balcony, suitable for roof pitches from 35–53°.
Application
For roof pitches between 35–53°.
Description
Features and benefits:

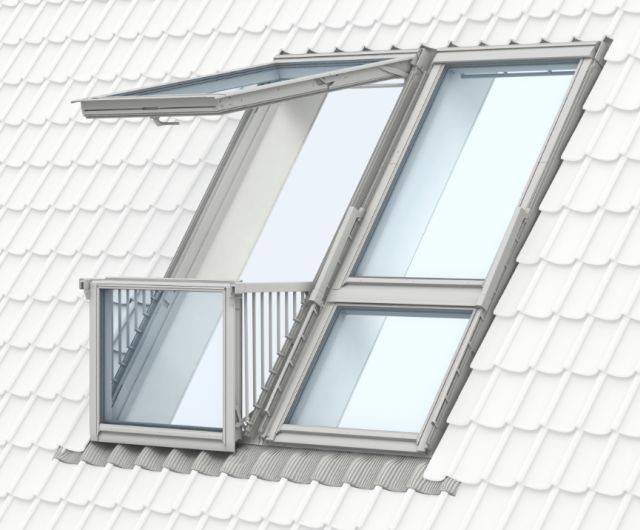

- Roof balcony system that turns a roof window into an instant balcony in seconds.
- Can be combined with additional top-hung and lower elements for more daylight.

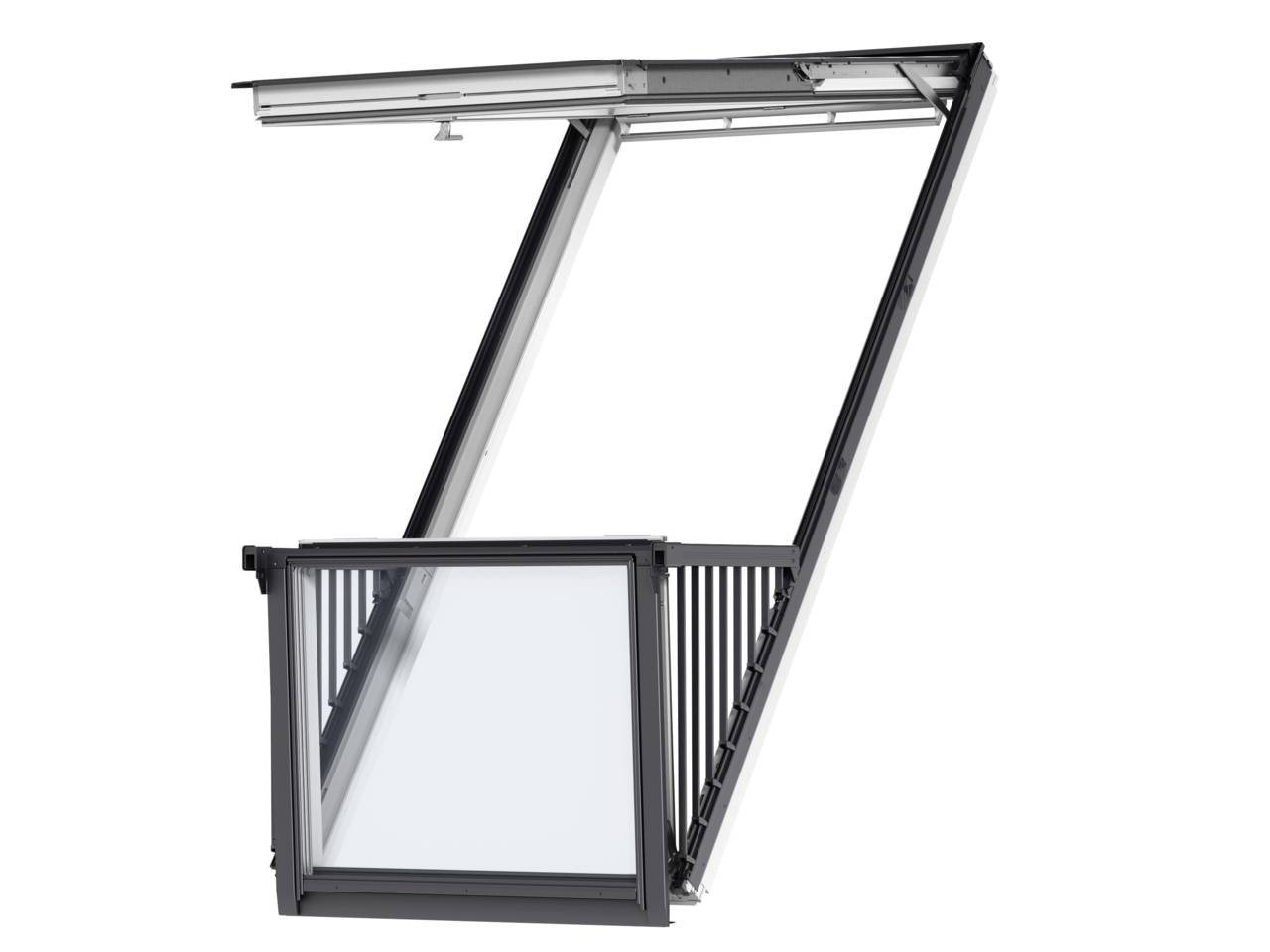

- Consists of a top-hung upper section which opens to 45° and the lower section opens out vertically into a glazed balcony with side railings.
- Can be easily combined with additional top-hung and fixed sloping roof windows for more daylight.
- Double and triple units include EKY (100 mm) support trimmers.
General information
Color | White |
Finish | Painted Guidance for specification option: Internal frame and sash is White painted as standard or comes in Lacquered natural pine. External cladding available in grey aluminium; colour reference NCS S-7500-N - Code 0. |
Material | Pine Guidance for specification option: frames Aluminium Guidance for specification option: cladding Glass |
Shape | Rectangle |
Width | 780 mm 942 mm 1140 mm |
Height | 2520 mm |
Warranty description | Ten year Guidance for specification option: For window and pane Three year Guidance for specification option: For blinds and electrics |
Uniclass | |
CAWS | L10/480 Roof windows |
Product range |
Specification data - Wood frame roof window units
Product performance | |
Whole window U-value | 1.2 W/m²K. |
Glazing or infill | |
Composition | Triple glazed as standard, Krypton filled cavity. |
Hardware | Flashings are available in materials and finishes to match roof window cladding. |
Operation | |
Type | Manual operation. Refer to VELUX for detailed guidance prior to specification. |
Execution | Fixing of wood frames. |
Internal frame and sash | White painted. Guidance for specification option: Standard. Lacquered natural pine. |
External cladding | Grey aluminium; colour reference NCS S-7500-N - Code 0. |
Blinds | Not required. Blackout blind. Guidance for specification option: Code DKL Blackout energy blind. Guidance for specification option: Code FHC Duo blackout blind. Guidance for specification option: Code DFD Flying pleated blind. Guidance for specification option: Code FHL |
Energy efficient installation | Not required. Insulation Collar. Guidance for specification option: Code BDX 2000 Underfelt Collar. Guidance for specification option: Code BFX 1000 Vapour Barrier Collar. Guidance for specification option: Code BBX 0000 Not required. |
Roof pitch | Guidance for specification option: Insert requirements. |
Window code | GDL MK19 SD0L001. Guidance for specification option: Single CABRIO® balcony in size 780 mm wide x 2520 mm high. For slate and flat roofing materials up to 8 mm thick. GDL MK19 SK0L222. Guidance for specification option: Double combination, 1 x CABRIO® balcony and 1 x GPL MK10 over 1 x GIL MK34. For slate and flat roofing materials up to 8 mm thick. GDL MK19 SD0W001. Guidance for specification option: Single CABRIO® balcony in size 780 mm wide x 2520 mm high. For tiles and profiled roofing materials up to 120 mm in profile. GDL MK19 SK0W224. Guidance for specification option: Double combination, 1 x CABRIO® balcony and 1 x GPL MK10 over 1 x GIL MK34. For tiles and profiled roofing materials up to 120 mm in profile. GDL PK19 SD0L001. Guidance for specification option: Single CABRIO® balcony in size 942 mm wide x 2520 mm high. For slate and flat roofing materials up to 8 mm thick. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Pine Guidance for specification option: frames Aluminium Guidance for specification option: cladding Glass |
Manufacturing plant location | |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 12 % |
Expected Life | 30 year |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 3 |
Third party certifications
EPD
Balcony EPD
