Application

Designed for fitting into open perpendicular joints spaced at no greater than 900 mm centres.

Description

Injection moulded polypropylene weep vents.


Features and benefits:

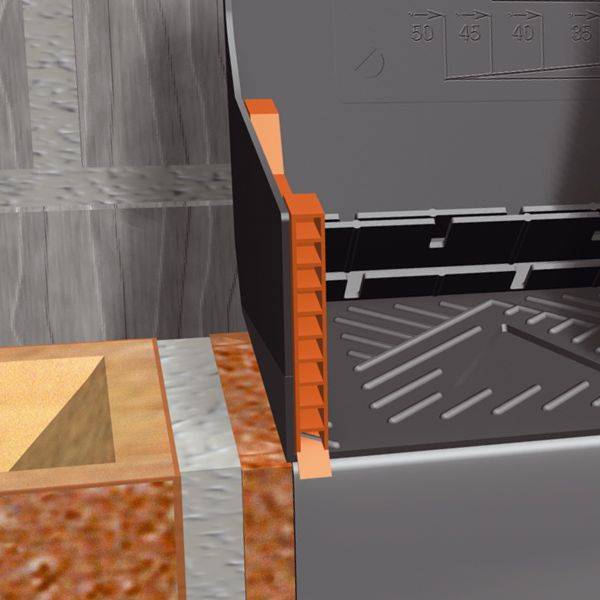

  • Injection moulded polypropylene weep vents, generally used to drain lintels trays, cavity trays and to provide ventilation in cavity walls.
  • The vents have a baffled grill to prevent the ingress of driving wind and rain and incorporate an insect grill and drip lip.
  • It provides 220 mm² free airflow and is used in high drainage applications.
  • Available in a range of eight colours.
  • NHBC guidelines recommend 450 mm maximum centres, with at least two weep vents above all windows and doors.

General information

Color

Black

Blue

Brown

Buff

Clear

Show more

Material

Polypropylene

Size

100 x 65 x 9 mm

Guidance for specification option:

(l x h x t).

Uniclass

Pr_35_90_50_62 Perpend joint plastics weep holesPrimary

CAWS

F30/132 Perpend joint plastics weep holes

Specification data - Perpend joint plastics weepholes

Colour

Black.

Blue/Black.

Brown.

Buff.

Clear.

Grey.

Terracotta.

White.

Size:

100 x 65 x 9 mm.

Guidance for specification option:

(l x h x t).

Accessories

None.

G951 Extended Peep Weep.

Guidance for specification option:

For use in conjunction with type G950 Peep Weep to provide an extended weep vent where required.
