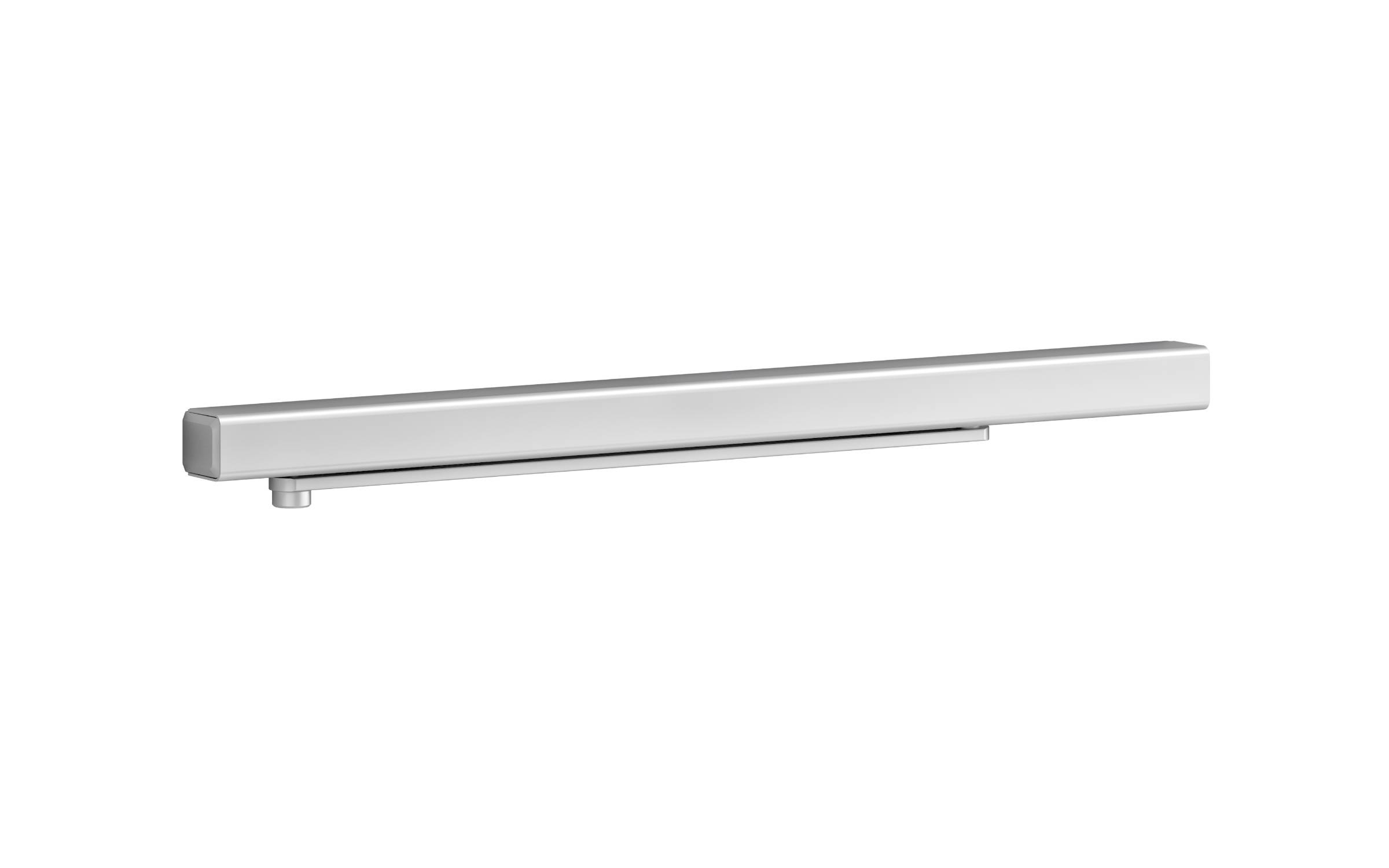

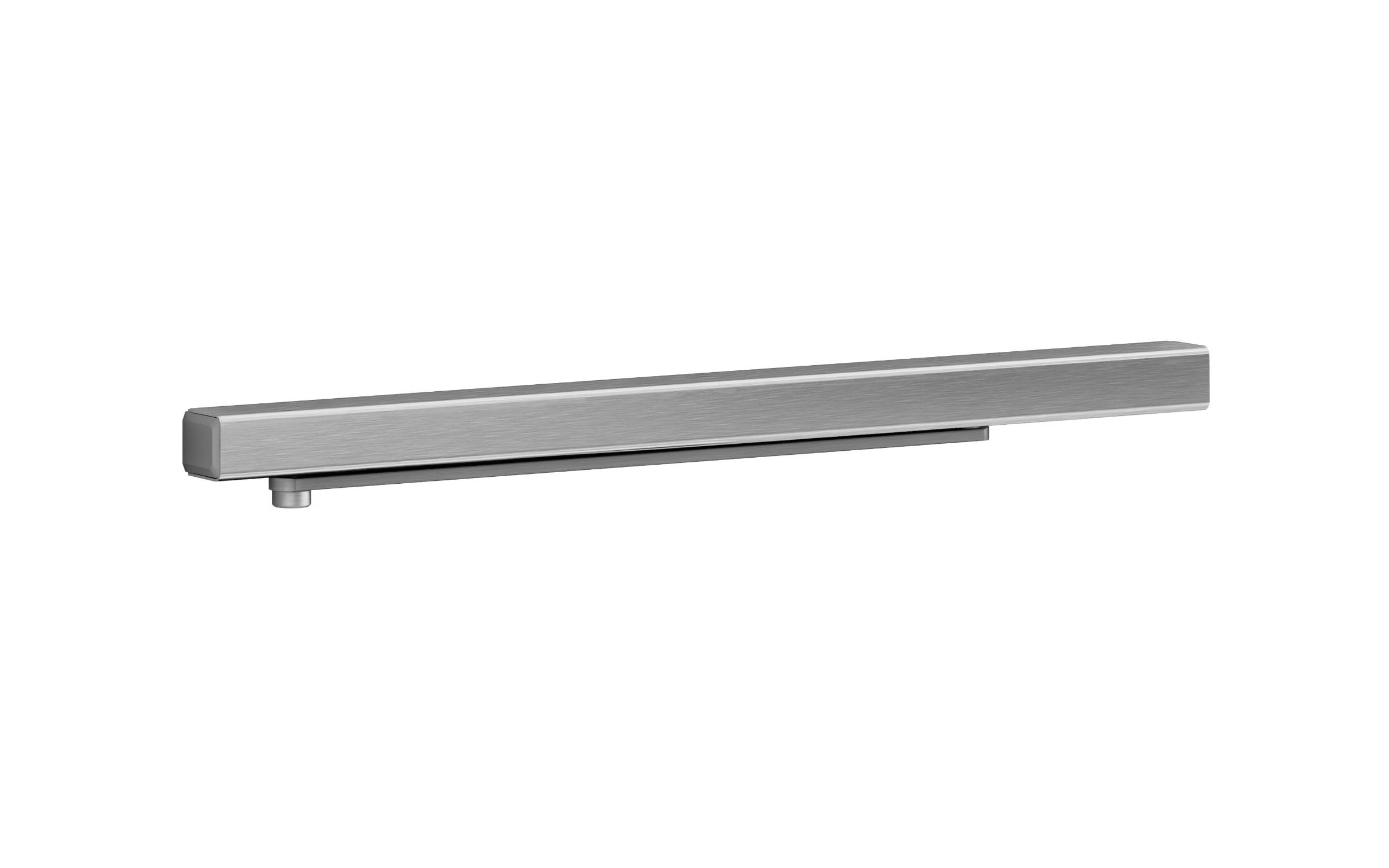

G460 - Hold Open System
Verified by manufacturer 4 months ago
Hold open and coordinator devices for use on fire doors.
Application
For use on fire doors.
Description
When used in conjunction with a separate fire alarm or smoke detection system, these units allow the door to be held open in normal circumstances but to close automatically in case of fire.
Features and benefits:
- Used in conjunction with 700 or 250 cam action door closer bodies, supplied separately.
- May be used with local power supply unit or in conjunction with a compatible fire alarm system.
- Accessory set available for closing side fixing.
General information
Color | Silver Guidance for specification option: Stainless steel. |
Finish | Stainless steel |
Shape | Rectangle |
Length | 545 mm |
Width | 33 mm |
Height | 31 mm |
Warranty description | Two year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Specification data - Controlled door closers
Standard | To BS EN 1155. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | Adjustable 3–6. |
Suitability for use on fire and smoke doors | 1. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face fixed. |
Closer functions | Controlled closing.Automatic closing in case of fire. |
Materials and finishes | |
Colour | Stainless steel.Guidance for specification option: Silver. |
Execution | Adjusting controlled door closers. |
Accessories | Accessory set for closing side fixing. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Finland |
Recyclability | 80% Manufacturer guidanceMetals widely recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
