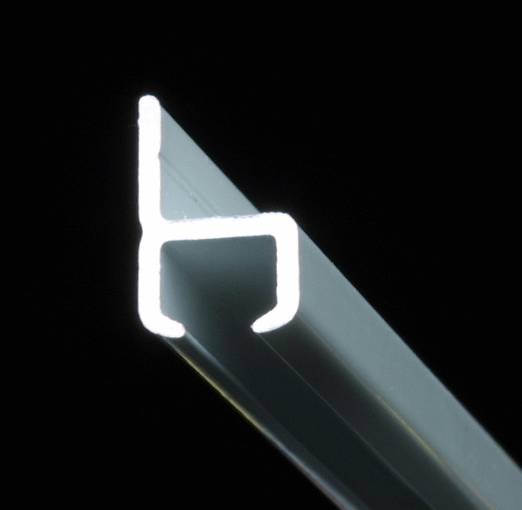

G-Rail 2301 Curtain/ Picture Rail
14 mm deep aluminium curtain track designed for face fixing to timber.
Description
G-Rail 2301 Curtain/ Picture Rail is designed for use with hand drawn light to medium weight curtains. The aluminium profile is available in silver anodized and white RAL 9010 powder coated aluminium. The units are supplied complete with gliders at 16 per metre, two end stops.
The 2301 system is designed for top fixing to timber at 300 mm centres using special screws (ref 2314).
Type 2301 is designed for hanging pictures using the specially designed accessories.
General information
Size | 14 mm deep x 9 mm wide |
Uniclass 2015 | |
CAWS | N10/230 Curtain supports |
Specification data - Window curtain supports
Product Reference | G-Rail 2301 Curtain RailG-Rail 2301 Picture Rail |
Finish/ Colour | White RAL 9010 powder coatedSatin silver anodized |
Accessories | Ref 2001End stop. Ref 2010Glider. Ref 2011Glider with SS hook. Ref 2020Double hook. Ref 2021G-hook curtain hook. Ref 231419 mm screws. |
Standard product features | Size: 14 mm deep x 9 mm wide. Weight: 87 g/m. |
Product Options | Colours: A range of colours is available on request; consult manufacturer for details. Fixing: A range of ceiling or wall mounting fixings and extension brackets is available. Consult manufacturer for details. |
