Fully Compliant DDA Modular Ramp
Verified by manufacturer 2 months ago

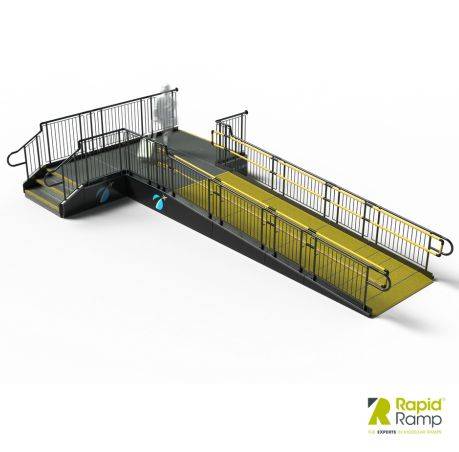

A fully adjustable modular wheelchair ramp constructed from galvanised steel components that are bolted together.
Application
- Suitable for all public applications e.g. schools, museums, train stations, airports, outdoor festivals, offices, public toilets facilities.
Description
The Fully Compliant Modular Ramp is constructed using galvanised steel components securely bolted together.
This ramp system fully complies with DDA regulations and Building Regulations Documents M and K. It meets the minimum required width of 1500 mm and a 1:15 gradient (equivalent to 3.7 degrees).
Designed with the utmost safety in mind, this ramp system aims to prevent falls, collisions, and injuries in various public settings, including schools, hospitals, shops, libraries, train stations, airports, public toilets, offices, and heritage sites, as specified in Part M & K regulations.
Key Features and Advantages:
- Efficient Design and Installation: Rapid design and installation make it a practical choice for various applications.
- Versatile Width Options: Available in four different widths to accommodate diverse needs.
- Durable Construction: Crafted from robust steel with a galvanised walkway and powder-coated handrails that remain warm to the touch.
- UK Manufactured: Proudly manufactured in the UK, with nationwide service coverage extending to the UK and Ireland.
- Reusable Modular Components: The modular nature of the ramp allows for reuse and easy adaptability.
- Fire-Resistant Material: Unlike wooden ramps, the metal construction is fire-resistant, providing added safety in the event of a fire.
- Three-Year Guarantee: Backed by a three-year guarantee, this ramp system boasts a lifespan exceeding 25 years.
- Short or Long-Term Solution: Suitable for both short-term and long-term needs, ensuring flexibility in its usage.
- Fully Adjustable: Can be adapted, modified, and reused as requirements change over time.
- Bespoke Sizing: Customised sizes are available to cater to unique project specifications.
- Easy Removal: Modular ramps can be easily removed, leaving the area in its original condition when necessary.
In summary, the Fully Compliant Modular Ramp offers a safe and flexible solution for various public environments, meeting rigorous regulatory standards while providing durability and ease of installation.
General information
Color | Black Guidance for specification option: Standard. Other Guidance for specification option: Also available powder-coated in any RAL colour. |
Finish | Galvanized Powder-coated |
Material | Steel |
Width | 1500 mm Bespoke |
Height | Manufacturer guidanceThe Rapid Ramp system can be used up to 3 m high. |
Warranty description | Three year |
Uniclass | |
CAWS | L30/45 Ramps/ walkways L30/470 Ramps |
Specification data - Heavy steel stair systems
Flooring and treads | Mesh platform.Guidance for specification option: As standard. Minimum width: 900 mm. GRP platform.Guidance for specification option: Optional extra. A slip-resistant and non-corrosive surface that is suitable for areas with high footfall such as schools and public spaces. The product comes in dark grey as standard. |
Handrails | Standard handrail. Guidance for specification option: The handrail is coated with thermosetting powder to provide a non-conductive, non-slip and scratch-resistant surface. Infill handrail. Guidance for specification option: The infill handrail prevents users from climbing or falling through gaps. It is often specified for schools and public buildings. 1100 mm high vertical infill handrail. Lower intermediate handrail. Guidance for specification option: For use with the standard or infill handrail. The lower intermediate handrail is designed to be used by young children and wheelchair users. The handrail should be 600 mm from the surface of the system. Manufacturer guidanceWith trombone ends as standard. |
Integral accessories | Telescopic legs. Guidance for specification option: Legs can be adjusted to accommodate different threshold heights. |
Accessories | None. Gates unit. Guidance for specification option: A gate unit can be attached to the side of a platform; 1200 mm or wider. Step unit. Access hatch. Guidance for specification option: A hatch opens allowing a person access to the underground services. Underside mesh hoarding. Guidance for specification option: This mesh is designed to prevent children from gaining access to the underneath of the ramp. It is often specified for schools and public buildings. Specification includes: • Mesh size 200 x 50 mm. • 33.7 mm OD Single mesh clip. |
Colour/ Finish | Black, powder-coated. Guidance for specification option: As standard. RAL, powder-coated. Guidance for specification option: Insert requirements. |
Width | 900 mm. 1000 mm. 1200 mm. 1500 mm. Bespoke. Guidance for specification option: Insert requirements. Manufacturer guidanceAny of the widths can be secured together to create almost any width. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 156.73 kg CO₂ eq/m² Self declared Guidance for specification option: When considering the carbon embodiment within the material; it is important to understand the mass of the material. For instance, a Rapid Ramp is hollow underneath the platform, whereas, a concrete ramp is solid. The amount of carbon embodiment needs to be considered based on the mass. |
Recyclability | 96% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 21 % |
