FS120 Fire Shutter

Verified by manufacturer 5 days ago

Roché Systems Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Exova Warringtonfire approved single skin steel roller shutter providing 120 minutes' fire protection.

Jump to:
BOS
03330347967 Website

Application

Windows, doors and openings in kitchen servery areas, schools, hospitals and offices.

Description

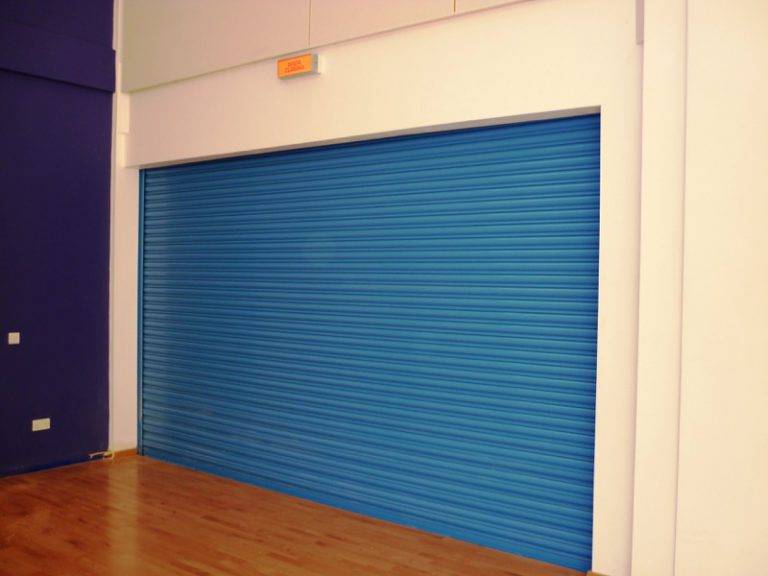

Fire rated single skin steel roller shutter with 76 mm high slats. FS fire shutter has been successfully tested at Exova Warringtonfire under BS EN 1634-1 test conditions and assessed to BS EN 476-22. The optional interface panel connects the shutter to a fire alarm system and the event of fire detection, the shutter automatically descends in a controlled manner to protect adjacent areas. The shutter can span up to 12 m in width and an area up to 50 m².


Features and benefits:

  • Tested at Exova Warringtonfire under BS EN 1634-1 test conditions and compliant with BS EN 16034:2014.
  • Available up to up to 12 m in width and covers an area up to 50 m².
  • Optional interface panel connects the shutter to a fire alarm system and in the event of fire detection automatically descends.
  • Fire rated single skin steel roller shutter with 76 mm high slats providing 2 hours fire protection.

General information

Color

-

Manufacturer guidance

Galvanized finish as standard. Option to powder coat any RAL / BS colour (surcharge applies). Consult manufacturer and insert requirements.

Finish

Galvanized

Plastisol

Powder-coated

Material

Steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_30 Fire-resisting roller shuttersPrimary
Pr_30_59_84_73 Roller shutters

CAWS

L20/610 Roller shutters/ curtains

L20/60 Doors

Product range

Fire Protection

Specification data - Fire-resisting roller shutters

Fire resistance

Two hours.

Weight

9–16 kg/m².

Guide channel depth

65 mm.

75 mm.

100 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
DWG
-

1

IFC
-

1

Revit
-

1

Third party certifications

QA Certificate

QA Certificate

Exova Warringtonfire FS60/120/240

Literature

FS120 Fire Shutter Datasheet

FS120 Fire Shutter Datasheet

Fire Shutters

Fire Shutters
