Froth-Pak™ Foam Systems - Two-Component Polyurethane Spray Foam
Verified by manufacturer 2 days ago

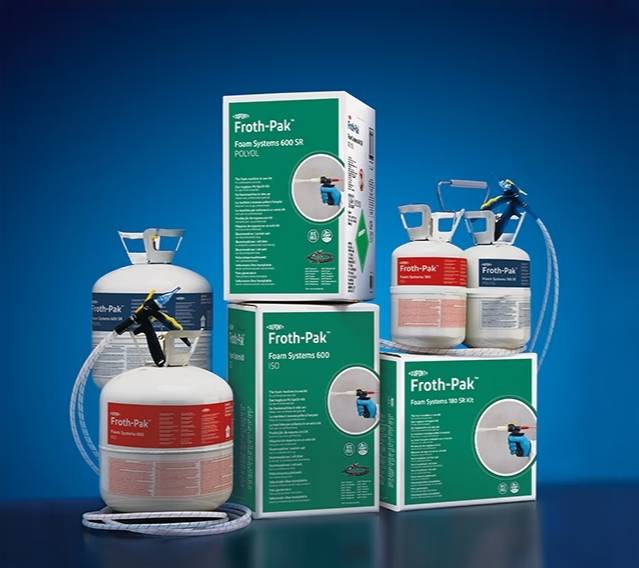

Froth-Pak™ Foam Systems 180 QR Kit
Froth-Pak™ Foam Systems 180 QR Kit
Two-component polyurethane (PU) spray foam, contained in two pressurized cylinders requiring no external power source allowing fast and easy production of high-quality PU-foam for professional use.
Application
Suitable for:
Agriculture:
- Grain storage bin sealant.
- Silo sealant.
Cold storage:
- Ceiling, wall and floor seams.
- corrugated roof decks.
Heating and ventilation:
- Duct sealant.
- Geothermal pipe insulator.
Plumbing:
- Structural support.
- Around copper or polyvinyl chloride (PVC).
Theatre:
- Stage and movie sets.
- Floats.
Air-sealing:
- Around doors and windows.
- Roof and wall joint penetrations.
Commercial vehicles:
- Insulation.
- Sound dampening.
- Vibration dampening.
- Sealant against air, water and dust.
Insulation:
- Stud wall cavity fill.
- Container conversion and repairs.
Pools and spa:
- Sound dampening.
- Insulation.
Description
DuPont™ Froth-Pak™ Foam Systems is a new two-component PU spray foam product, which boasts a global warming potential (GWP) reduction of 99% compared to the legacy Froth-Pak™ product and does not contain ozone-depleting chemicals or hydrofluorocarbons (HFCs), while maintaining performance. It comes in two separate portable and disposable pressurized cylinders requiring no external power source. It allows a fast and easy production of high-quality PU-foam for professional use in all different applications. Once fully cured, Froth-Pak™ Foam Systems is thermally stable in the temperature range of -150°C to +100°C. This product can be used in Cryogenic applications.
Features and benefits:
- The foam machine comes in one kit.
- Convenient and easy to use.
- Dispenses, expands and becomes tack free in seconds.
- Cut, sand and paint in minutes.
- Great flow control, less waste.
- Excellent for filling hard to reach areas and irregular surfaces.
- Portable and self-contained kit, ready to use in minutes.
- High thermal resistance.
- Foam bonds to most surfaces.
- No other equipment needed.
- Seals completely to improve airtightness.
- Keeps out smoke odour and moisture.
- Wide range of specialized dispensing nozzles.
- CE marked (CE-Code PU-EN14315-1-W0.4-DS(70,90)3-DS(-20)1).
General information
Color | Other Yellow |
Finish | Other |
Material | Polyurethane |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | P10/10 Loft insulation P10/185 Soffit insulation P10/147 Polyurethane foam sprayed between rafters P10/205 Insulation sprayed between studs M22/110 Sprayed M22/120 Sprayed L10/810 Sealant joints L20/820 Sealant joints L10/75 Sealant joints L20/80 Sealant joints |
SKU Code | 12082636 |
Specification data - Polyurethane (PUR) foam insulation
Classification data | |
Description | To EN 14315-1. |
Standards | To EN 14315-1. |
Net weight | 11.9 kg. Manufacturer guidanceTested on non-aged foam in norm climate (23°C/ 50% R.H.), typical values are given. DuPont™ Froth-Pak™ Foam Systems consists of 2 cylinders: one polyol and one isocyanate cylinder of same size |
Density | Free rise density: 28 kg/m³. Manufacturer guidanceTested on non-aged foam in norm climate (23°C/ 50% R.H.), typical values are given. |
CompressiveStrength | To EN 826, 120 kPa. Manufacturer guidanceTested on non-aged foam in norm climate (23°C/ 50% R.H.), typical values are given. |
Thermal conductivity (maximum) | To EN 12667, 0.022 W/(m·K). Manufacturer guidanceTested on non-aged foam in norm climate (23°C/ 50% R.H.), typical values are given. |
Reaction to fire | Reaction to fire to EN 13501-1, Class E. Manufacturer guidanceTested on non-aged foam in norm climate (23°C/ 50% R.H.), typical values are given. |
TemperatureRange | Storage temperature range: 5–25°C. Approved application temperature range: 20–25°C. Thermally stable temperature range: -150°C to +100°C. Manufacturer guidanceStorage temperature range. |
Typical yield | 400 L. Manufacturer guidanceYield per cylinder.
|
Rise | 30 seconds. Manufacturer guidanceRise time. Tested on non-aged foam in norm climate (23°C/ 50% R.H.), typical values are given. |
Cure time | Five minutes. Manufacturer guidanceApproximate cure time. |
Sustainability data
Country of material origin | Belgium |
Country of product manufacture | Belgium |
Material | Polyurethane |
Expected Life | 50 year |
