Verified by manufacturer 7 months ago
Warrington Fire
Certificate type
In front/out back mailbox, designed and manufactured to BS EN 1363-1 2012.
Internal and external applications.

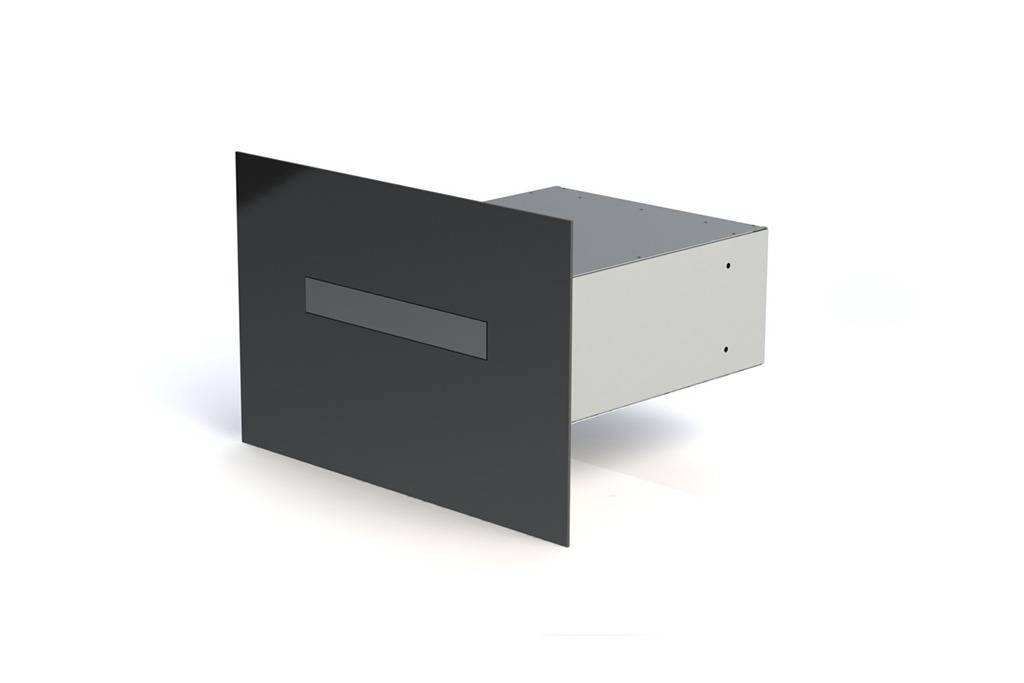

Fire rated 3 mailbox suitable for through the wall mail processing (front entry and rear retrieval). The fire rated FR3 mailbox has been developed in association with Exova Warrington to become the first company to achieve full fire rating (two hour integrity only) to BS EN 1363-1: 2012.
Fire rated mailboxes includes a number of specially designed features to meet fire rating standards BS EN 1363-1: 2012 which outline fire testing on building structures. The lock included in fire rated products uses a fire cover which limits the access to the mailbox lock.
The fire rated 3 mailbox flap uses an inward sprung hinge to stop the flap from falling out of the box and the mailbox aperture uses an intumescent seal which expands when exposed to a large increase in temperature; closing the gap and restricting the flow of oxygen into the mailbox.
Features and benefits:
Color | Beige Blue Bronze Black Brown Manufacturer guidanceAny RAL colour from the standard colour range, contact manufacturer for details. |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 360 mm |
Width | 276 mm |
Height | 125 mm |
Uniclass | |
CAWS | N10/400 Mailboxes N10/96 Mailboxes |
Standard | To BS EN 13724, BS EN 1363-1 2012, BS476 Part 6 & 7. |
Classification grades (minimum) | |
Aperture size | 235 x 32 mm.Guidance for specification option: Width x Height. |
Fire resistance (minimum) | 120 minutes. |
Size | 360 x 125 x 276 mm.Guidance for specification option: Depth x Height x Width. |
Materials | Zintec steel. |
Integral accessories | Supplied with a set of 2 keys.Guidance for specification option: Master suited keys are available on request. |
Installation | Through the wall. |
Country of product manufacture | United Kingdom |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 |
