FPHSD: STEEL FRAMING Screw - Flat Head
Verified by manufacturer 7 months ago

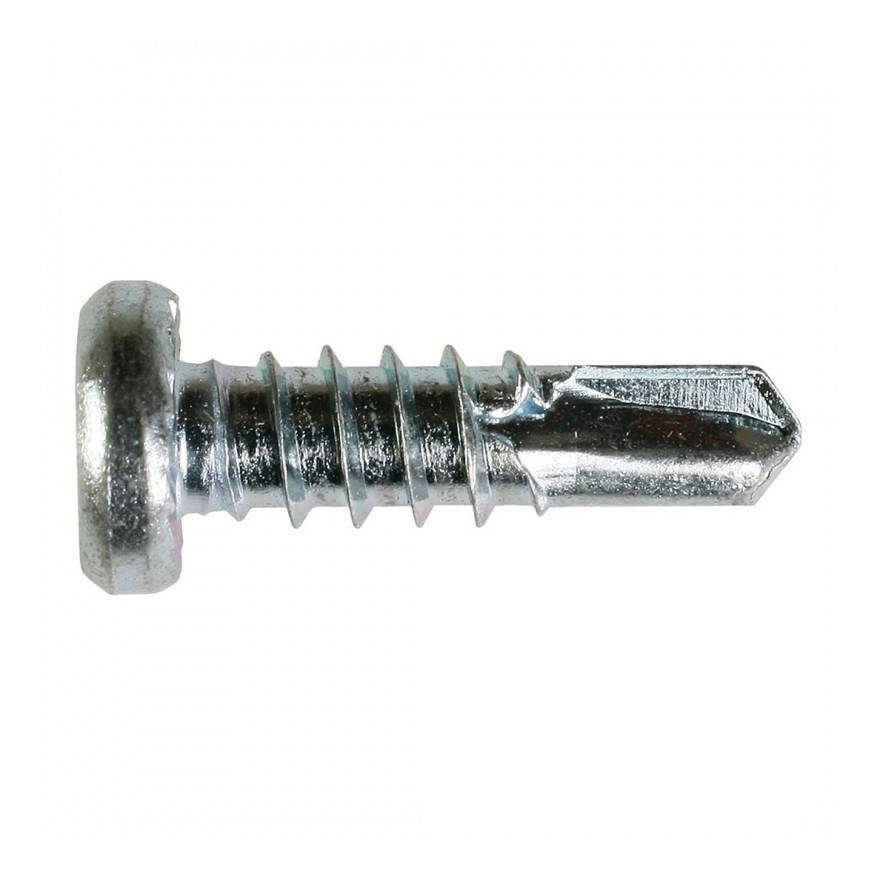

A self-drilling flat pan head screw for light gauge steel frame assembly.
Application
- For indoor use.
- Steel to steel (maximum material thickness 2.0 mm).
- Construction and steel frame assemblies.
- Steel to steel applications.
Description
FPHSD is a self-drilling flat pan head screw with a#3 drill point tip suitable for light gauge steel frame assembly. The #3 drill point allows the screw to penetrate the steel without the need for a pilot hole. Driver bits are included with boxes of Quik Drive collated screws.
Available as loose screws in bulk quantity of 100 000 screws under code FPHSD34S1214R. Driver bits not included with loose screws.
Features and benefits:
- Steel - electro-galvanized.
- Light gauge steel framing (up to 5.5 mm thickness) applications.
- Bit (BIT3SE) included.

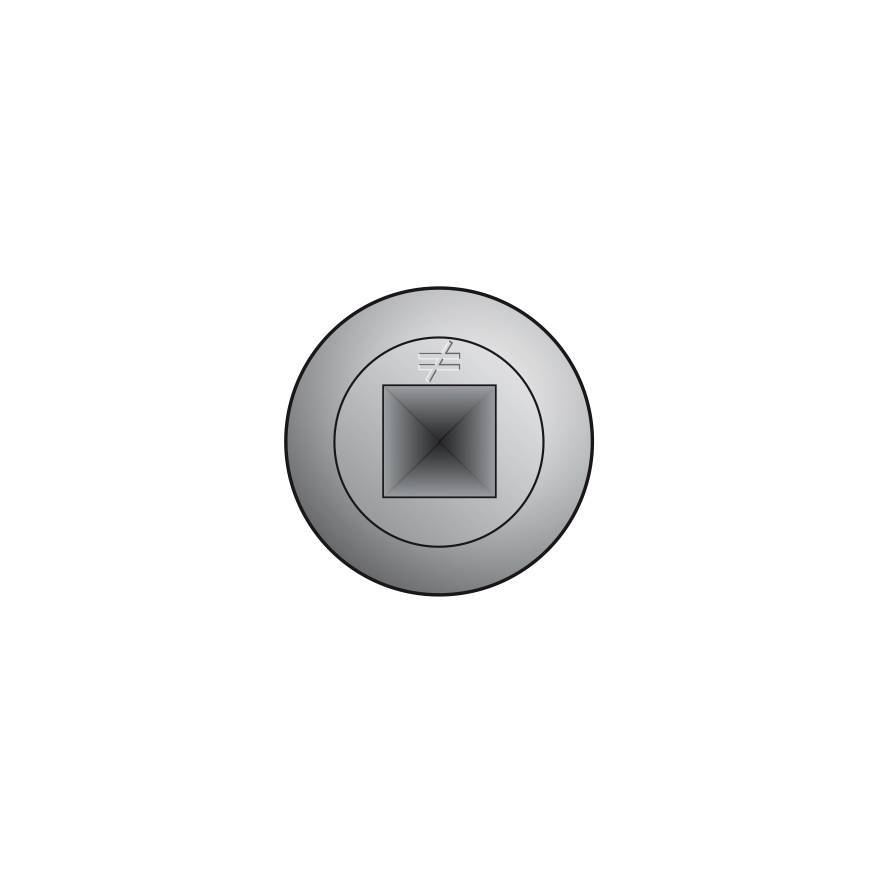

- Flat pan head for optimum torque.
- Drill point tip with fine thread for self-drilling into steel frame.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel |
Shape | Circle |
Length | 19 mm |
Width | 4.8 mm 5.5 mm |
Uniclass | |
CAWS | Z20/380 Miscellaneous screws |
Specification data - Self-drilling screws
Material | Steel. |
Finish | Galvanized. |
Head type | Flat pan head. |
Size | |
Diameter | 4.8 mm.Guidance for specification option: FPHSD34S1016. 5.5 mm.Guidance for specification option: FPHSD34S1214 and FPHSD34S1214R. |
Length | 19 mm. |
Service class | 2. |
Literature
FPHSD: STEEL FRAMING Screw - Flat Head Technical Data Sheet
