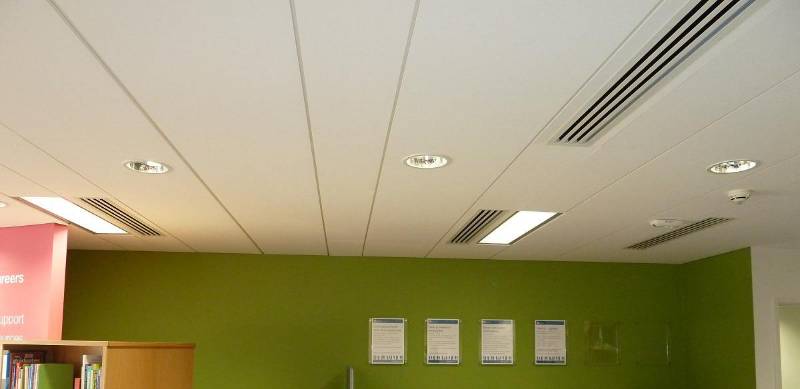

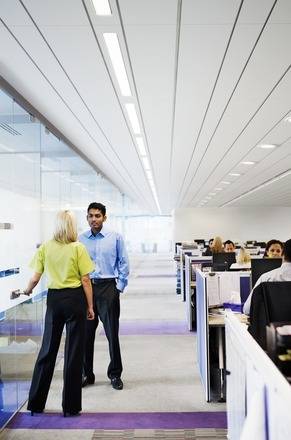

Sound-absorbing acoustic panels with a semi-concealed grid system, used for highlighting direction in a room; fully demountable with a smooth finish.
Application
For applications requiring a ceiling which is mechanically secured to the structural soffit.
Description
Ecophon Focus™ Lp has a semi-concealed grid system and is used for highlighting direction in a room. There is a 20 mm-wide gap between the tiles in the emphasized direction and a narrow gap in the other. Ecophon Focus™ Lp is a patented system, with edges which are sharp and well defined. The system consists of standard Focus™ Lp tiles in 600 or 300 mm width, and Focus™ Lp Technical tiles in widths of 150, 300 or 600 mm.
The tiles and Connect™ grid systems give an approximate weight of 3–4 kg/m² for the system.
Features and benefits:
- The tiles are manufactured from high-density glass wool.
- The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are painted.
- The technical tiles are used to create areas for technical installations such as modular luminaires, ventilation, sprinklers, smoke detectors, loudspeakers, etc. in conjunction with standard tiles.
- The exact width (148, 298 or 598 mm) is adopted to suit the standard sizes of luminaires on the market. The gap between a technical tile and a standard tile will therefore be 11 mm.
- The grid is manufactured from galvanized steel.
- For best performance and system quality, use Connect™ grid and accessories.
General information
Color | Clear Beige Black Blue Bronze Manufacturer guidance22 standard colours to choose from & special colours available |
Finish | Painted |
Material | High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool). |
Shape | Square Rectangle |
Length | 600 mm 1200 mm 1800 mm Bespoke |
Width | 150 mm 300 mm 600 mm Bespoke |
Height | 20 mm |
Warranty description | Ten year Guidance for specification option: All Ecophon installations can be warranted for ten years. 50 year Guidance for specification option: Design life. |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system K40/265 Infill units K45/12 Existing suspended ceiling system K45/120 Existing suspended ceiling system K45/13 Unit suspended ceiling system alterations K45/130 Unit-suspended ceiling system alterations K45/160 Board-suspended ceiling system alterations |
SKU Code | Focus Lp acoustic ceiling system |
Specification data - Modular suspended ceiling systems
Ceiling support | Interlocking Connect™ T24 HD grid. |
Support fasteners | Adjustable hangers/ wire. Guidance for specification option: 105 mm overall system depth. |
Ceiling units | High-density glass wool tiles. |
System accessories | None. Connect™ Bridging Profile and Clip. Guidance for specification option: For luminaire integration in panels. Connect™ Lighting Clip. Edge 500. Guidance for specification option: Perimeter raft profile. Edge sealant. Guidance for specification option: Insert colour requirement; consult manufacturer for information. Focus Frieze Dg/Ds Panel, 2400 x 600 mm. Guidance for specification option: Plasterboard margin (perimeter tile). Focus Wing Ds. Guidance for specification option: Perimeter profile. |
Size (l x w) | 600 x 150 mm. Guidance for specification option: Technical tile. 600 x 300 mm. 600 x 300 mm. Guidance for specification option: Technical tile. 600 x 600 mm. 600 x 600 mm. Guidance for specification option: Technical tile. |
Thickness | 20 mm. |
Colour/ Finish | Cloudy Day. Guidance for specification option: Nearest NCS colour sample S 1500-N, 62% light reflectance. Dark Diamond. Guidance for specification option: Nearest NCS colour sample S 9000-N, 4% light reflectance. Eucalyptus Leaf. Guidance for specification option: Nearest NCS colour sample S 5010-B30G. Fresh Clover. Guidance for specification option: Nearest NCS colour sample: S 3020-G40Y Light reflectance: 35%. Goji Berry. Guidance for specification option: Nearest NCS colour sample S 3030-Y80R. |
Grid colour | Black 01 matt. Grey 01 metallic. White 010. |
Trim | Connect™ Angle Trim C1. |
Lighting | None. Ecophon Line, 1200 x 150 mm. Guidance for specification option: White. Ecophon Line, 1200 x 300 mm. Guidance for specification option: White. |
Weight | 3–4 kg/m². Guidance for specification option: approximate, including Connect grid system |
Demounting depth (minimum) | 20 mm. |
Indoor climate | Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1. |
Moisture resistance | Class C, relative humidity 95% and 30°C, according to EN 13964:2014. |
Fire safety | To BS EN 13501-1, Class A2-s1, d0. |
Sound absorption | 200 mm-deep system: in accordance with EN ISO 11654, Class A. |
Sound insulation | 24 dB. Guidance for specification option: Dnfw weighted normalized flanking level difference (to ISO 10848-2 |
Ceiling attenuation class | 25 dB. Guidance for specification option: to ASTM 1414 and ASTM E413 |
Articulation Class | 180 AC (1.5). Guidance for specification option: to ASTM E1111 and ASTM E1110 |
Cleaning | The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping. |
Sustainability data
Contains Red List materials | No Manufacturer guidanceAll Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU. |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Material | High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool). |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 4.66 kg CO₂ eq/m² Certified Guidance for specification option: Life-cycle stages A1 to C4 from EPD, in conformity with ISO 14025 / EN 15804. See Environmental Product Declaration Certificate. |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 57 % |
Expected Life | 50 year |
