Access A - Ceiling Tile
Verified by manufacturer 3 days ago
M1 emission classification
Certificate type
DoP
Certificate type
Cradle to Cradle Certified
Certificate type
Cradle to Cradle Certified
Certificate type
European Technical Approval (ETA)
Certificate type
European Technical Approvals
Certificate type
Ceiling tile manufactured with a glass wool core and exposed frame system.
Application
Suitable for use in dry area ceiling applications.
Description
Ecophon Access™ A has an exposed frame system. Each tile has a hatch functionality making the installations above ceiling very easy to access.
Features and benefits:
- Daily dusting and vacuum cleaning. Weekly wet wiping.
- The tiles are easily demountable.
- CE marked according to the European harmonized standard EN 13964.
General information
Color | Beige Black Blue Cream Green |
Finish | Painted |
Material | Glass Wool |
Shape | Square Rectangle |
Length | 2000 mm |
Width | 577 mm 1177 mm |
Height | 27 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K45/13 Unit suspended ceiling system alterations K45/130 Unit-suspended ceiling system alterations K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system K40/265 Infill units K45/120 Existing suspended ceiling system K45/12 Existing suspended ceiling system |
SKU Code | Access A |
Specification data - Modular suspended ceiling systems
Classification data | |
Ceiling support | Access Universal profile. Access Suspension bar. Access Double carrier profile. Access Transition profile. |
Support fasteners | Access Angle bracket. Access Wall bracket alt. Access Ceiling bracket. Access Installation screw. |
Ceiling units | Access A. |
System accessories | Connect Angle trim. Access Frieze panel. Access Wall fixing plate. |
Constant humidity resistance | Class C, relative humidity 95% and 30°C, according to EN 13964. |
Indoor climate | Eurofins Indoor Air Comfort®: IAC, French VOC A and Finnish M1. |
Sound absorption | Class A to BS EN ISO 11654. Guidance for specification option: NRC 0.90. Overall depth of system: 200 mm. |
Reaction to fire | To EN 13501-1, A2-s1,d0. |
Size (length x width) | 2000 x 577 mm. 2000 x 1177 mm. |
Thickness (overall) | 27 mm. |
Edges | Square. |
Colour | Cloudy Day. Guidance for specification option: Nearest NCS colour sample S 1500-N, 62% light reflectance. Dark Diamond. Guidance for specification option: Nearest NCS colour sample S 9000-N, 4% light reflectance. Eucalyptus Leaf. Guidance for specification option: Nearest NCS colour sample S 5010-B30G. Fresh Clover. Guidance for specification option: Nearest NCS colour sample: S 3020-G40Y Light reflectance: 35%. Goji Berry. Guidance for specification option: Nearest NCS colour sample S 3030-Y80R. Golden Field. Guidance for specification option: Nearest NCS colour sample S 1040-G90Y, 61% light reflectance. Highland Fog. Guidance for specification option: Nearest NCS colour sample S 2005-G, 55% light reflectance. Moonlight Sky. Guidance for specification option: Nearest NCS colour sample S 7020-R90B, 7% light reflectance. Morning Drizzle. Guidance for specification option: Nearest NCS colour sample S 1002-B, 69% light reflectance. Ocean Storm. Guidance for specification option: Nearest NCS colour sample S 4020-R90B, 24% light reflectance. Peach Rose. Guidance for specification option: Nearest NCS colour sample S 1515-Y80R. Ruby Rock. Guidance for specification option: Nearest NCS colour sample S 4050-R10B, 7% light reflectance. Sage Garden. Guidance for specification option: Nearest NCS colour sample S 3010-B30G. Scallop Shells. Guidance for specification option: Nearest NCS colour sample S 1515-Y80R. Silent Steam. Guidance for specification option: Nearest NCS colour sample S 2010-B, 45% light reflectance. Silk Slate. Guidance for specification option: Nearest NCS colour sample 7000-N, 13% light reflectance. Silver Stone. Guidance for specification option: Nearest NCS colour sample S 4502-Y, 29% light reflectance. Summer Forest. Guidance for specification option: Nearest NCS colour sample S 6030-G10Y. Sunset Heat. Guidance for specification option: Nearest NCS colour sample S 2070-Y60R, 20% light reflectance. Volcanic Ash. Guidance for specification option: Nearest NCS colour sample 2002-Y, 56% light reflectance. Wet Sand. Guidance for specification option: Nearest NCS colour sample: S 3020-Y30R Light reflectance: 35%. White Frost. Guidance for specification option: Standard. White 500, Nearest NCS colour sample S 0500-N, 85% light reflectance (of which more than 99% is diffuse reflection). Retro reflection coefficient 63 mcd/(m2lx). Gloss <1. |
Core material | Glass wool. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Material | Glass Wool |
Recyclability | Fully recyclable |
Expected Life | 50 year |
Product certifications
Product certifications
M1 emission classification
M1 Certificate - All Ecophon products
DoP
E010_2022-01-07_toc
Cradle to Cradle Certified
Ecophon Acoustic Ceiling Solutions Certificate - Bronze level - Cradle to Cradle
Cradle to Cradle Certified
Ecophon C2C Certified Material Health Certificate - Silver level - Cradle to Cradle
European Technical Approval (ETA)
Ecophon - REACH - SVCH - ECHA - EUCB - 24th February 2022
European Technical Approvals
Ecophon Compliance EU Taxonomy Regulation Appendix C
Literature
Literature type

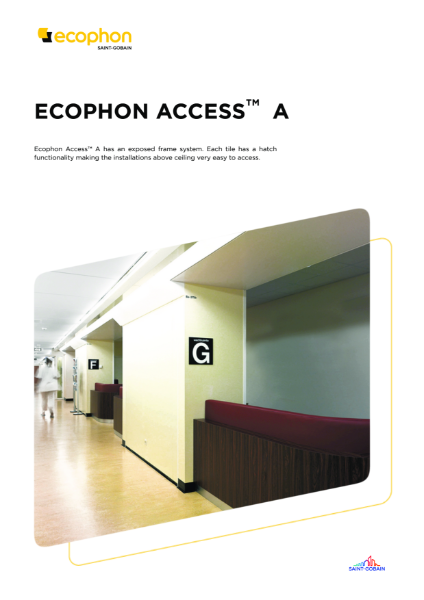

Access A
