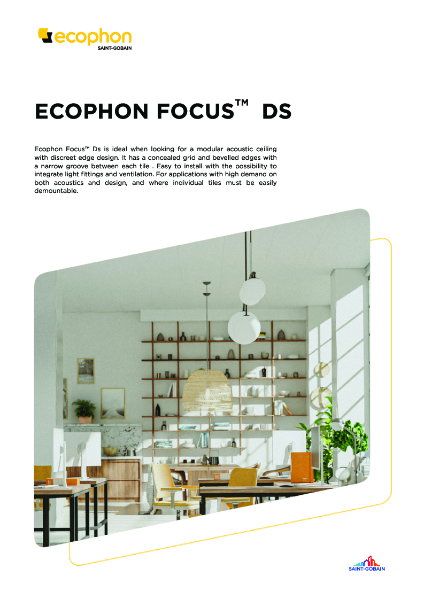

Focus Ds acoustic ceiling system - Acoustic panels

Name: Focus Ds acoustic ceiling system - Acoustic panels
Brand: Saint-Gobain Ecophon
SKU: hNj5N7ZS7QDuqysakRXsHe

Verified by manufacturer 10 days ago

Saint-Gobain Ecophon

Third party certifications:

EPD
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
HPDC Certification
Certificate type
Cradle to Cradle Certified
Certificate type
ISO 14021:2016
Certificate type
ISO 9001 Quality Management
Certificate type

Sound-absorbing acoustic panels with a concealed grid system, fully demountable with a smooth finish.

Jump to:

+44 (0)1256 855208 Website

Application

For applications where a suspended ceiling with a concealed grid is required, but individual tiles must be easily demountable.

Description

For applications where a suspended ceiling with a concealed grid is required, but individual tiles must be easily demountable. Ecophon Focus Ds acoustic panels have a concealed grid and symmetrical edge design, allowing easier assembly, integration of light fittings and ventilation. The ceiling has an even appearance, with the bevelled edges forming a discreet groove between the tiles. The tiles are easily demountable.

The systems consist of Ecophon Focus Ds tiles and Ecophon Connect grid systems; with an approximate weight of Focus Ds + Connect grid system of 2,9 kg/m².

Features and benefits:

The tiles are manufactured from high-density glass wool.
The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are painted.

For best performance and system quality, Ecophon Connect T24 Main runner PL

Connect grid and accessories should be used.
The grid is manufactured from galvanized steel.
The system is patented.

General information

Color	Clear Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more Manufacturer guidance 22 standard colours to choose from & special colours available
Finish	Painted
Material	High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool).
Shape	Square Rectangle
Length	600 mm 1200 mm 1600 mm 1800 mm 2000 mm 2400 mm Bespoke Show more
Width	600 mm 1200 mm Bespoke
Height	20 mm
Warranty description	Ten year Guidance for specification option: All Ecophon installations can be warranted for ten years. 50 year Guidance for specification option: Design life.

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system K40/265 Infill units K45/12 Existing suspended ceiling system K45/120 Existing suspended ceiling system K45/13 Unit suspended ceiling system alterations K45/130 Unit-suspended ceiling system alterations K45/160 Board-suspended ceiling system alterations

Specification data - Modular suspended ceiling systems

Ceiling support	Connect T24 Main runner PL.
Support fasteners	Adjustable hangers/ wire. Guidance for specification option: 105 mm overall system depth. Direct fixing brackets. Guidance for specification option: 65 mm overall system depth.
Ceiling units	High-density glass wool tiles.
System accessories	None. Connect™ Bridging Profile and Clip. Guidance for specification option: For luminaire integration in panels. Connect™ Edge Tool Dg. Guidance for specification option: For cutting perimeter tiles. Connect™ Laser Angle. Guidance for specification option: For installing grid perpendicular. Connect™ Lighting Clip 0231. Edge 500. Guidance for specification option: Perimeter raft profile. Focus Frieze Dg/Ds Panel, 2400 x 600 mm. Guidance for specification option: Plasterboard margin (perimeter tile). Focus Wing Ds. Guidance for specification option: Perimeter profile.

Size (l x w)	600 x 600 mm. 1200 x 600 mm. 1200 x 1200 mm. 1600 x 600 mm. 1800 x 600 mm. 2000 x 600 mm. 2400 x 600 mm. Show more
Colour/ Finish	Cloudy Day. Guidance for specification option: Nearest NCS colour sample S 1500-N, 62% light reflectance. Dark Diamond. Guidance for specification option: Nearest NCS colour sample S 9000-N, 4% light reflectance. Eucalyptus Leaf. Guidance for specification option: Nearest NCS colour sample S 5010-B30G. Fresh Clover. Guidance for specification option: Nearest NCS colour sample: S 3020-G40Y Light reflectance: 35%. Goji Berry. Guidance for specification option: Nearest NCS colour sample S 3030-Y80R. Golden Field. Guidance for specification option: Nearest NCS colour sample S 1040-G90Y, 61% light reflectance. Highland Fog. Guidance for specification option: Nearest NCS colour sample S 2005-G, 55% light reflectance. Moonlight Sky. Guidance for specification option: Nearest NCS colour sample S 7020-R90B, 7% light reflectance. Morning Drizzle. Guidance for specification option: Nearest NCS colour sample S 1002-B, 69% light reflectance. Ocean Storm. Guidance for specification option: Nearest NCS colour sample S 4020-R90B, 24% light reflectance. Peach Rose. Guidance for specification option: Nearest NCS colour sample S 1515-Y80R. Ruby Rock. Guidance for specification option: Nearest NCS colour sample S 4050-R10B, 7% light reflectance. Sage Garden. Guidance for specification option: Nearest NCS colour sample S 3010-B30G. Scallop Shells. Guidance for specification option: Nearest NCS colour sample S 1515-Y80R. Silent Steam. Guidance for specification option: Nearest NCS colour sample S 2010-B, 45% light reflectance. Silk Slate. Guidance for specification option: Nearest NCS colour sample 7000-N, 13% light reflectance. Silver Stone. Guidance for specification option: Nearest NCS colour sample S 4502-Y, 29% light reflectance. Summer Forest. Guidance for specification option: Nearest NCS colour sample S 6030-G10Y. Sunset Heat. Guidance for specification option: Nearest NCS colour sample S 2070-Y60R, 20% light reflectance. Volcanic Ash. Guidance for specification option: Nearest NCS colour sample 2002-Y, 56% light reflectance. Wet Sand. Guidance for specification option: Nearest NCS colour sample: S 3020-Y30R Light reflectance: 35%. White Frost. Guidance for specification option: Standard. White 500, Nearest NCS colour sample S 0500-N, 85% light reflectance (of which more than 99% is diffuse reflection). Retro reflection coefficient 63 mcd/(m2lx). Gloss <1. Show more
Grid colour	Ultra matt black. White 01.
Trim	Connect™ Angle Trim. Connect™ Modular Wall. Guidance for specification option: XL corridor, 55 mm overall system depth. Connect™ Shadowline 0668.
Lighting	None. Ecophon Dot. Guidance for specification option: 600 x 600 mm luminaire, white. Ecophon Line. Guidance for specification option: 1200 x 600 mm luminaire, white. Ecophon Square 43. Guidance for specification option: 600 x 600 mm luminaire, white.
Weight	3–4 kg/m². Guidance for specification option: approximate, including Connect grid system
Demounting depth (minimum)	30 mm. Guidance for specification option: 55 mm if using 1200 x 1200 mm tiles
Indoor climate	Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
Moisture resistance	Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Fire safety	To BS EN 13501-1, Class A2-s1, d0.
Sound absorption	200 mm-deep system: in accordance with EN ISO 11654, Class A.
Cleaning	The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.

Sustainability data

Contains Red List materials	No Manufacturer guidance All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool).
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	2.60 kg CO₂ eq/m² Guidance for specification option: Life-cycle stages A1 to C4 from EPD, in conformity with ISO 14025 / EN 15804. See Environmental Product Declaration Certificate.
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	54 %
Expected Life	50 year
