This product is no longer available

Application

  • Warm roofing systems.
  • Green roofs, parking decks.
  • Roof decks.
  • Ventilated façades.
  • Indoor insulation.
  • Floor insulation in industrial environment.
  • Ground and perimeter insulation.

Description

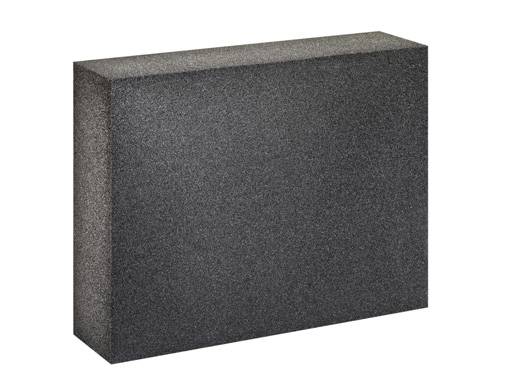

Foamglas® is a high-quality thermal insulation material manufactured primarily from recycled glass (>60%) and natural raw materials.

Applications:

  • Warm roofing systems.
  • Green roofs, parking decks.
  • Roof decks.
  • Ventilated façades.
  • Indoor insulation.
  • Floor insulation in industrial environment.
  • Ground and perimeter insulation.

Benefits:

  • Waterproof, consisting of closed cell cellular glass. Does not absorb any moisture and does not swell.
  • Cannot rot and is pest-proof because it is inorganic.
  • High compressive strength even with long-term loads due to its cell geometry without deformation.
  • A1 non-combustible (to BS EN 13501), consisting of pure glass. In the event of fire, does not develop smoke or toxic gases.
  • Vapour-tight, consisting of hermetically sealed glass cells. Constant thermal insulation value over decades. Prevents the penetration of radon.
  • Dimensionally stable; neither shrinks nor swells. No warping, buckling or creep. Low coefficient of expansion, nearly equal to that of steel and concrete.
  • Resistant to organic solvents and acids because it consists of pure glass.
  • Free of environmentally damaging flame-retardants, protection agents, propellants and consists of over 60 % of high value recycling glass. Only regenerative electricity is used in the manufacturing process.

General information
Finish

Unfaced

Color

Grey

Features

Closed Glass Cellular glass insulation

Material

Cellular glass insulation

Shape

Rectangle

Size

600 x 450 x 40 mm

600 x 450 x 50 mm

600 x 450 x 60 mm

600 x 450 x 70 mm

600 x 450 x 80 mm

600 x 450 x 90 mm

600 x 450 x 100 mm

600 x 450 x 110 mm

600 x 450 x 120 mm

600 x 450 x 130 mm

600 x 450 x 140 mm

600 x 450 x 150 mm

WarrantyDescription

25 year warranty

Uniclass 2015
Cellular glass insulation boards (Pr_25_71_52_13)Primary
Specification data - Cellular glass insulation boards
Product Reference

Foamglas® F

Green Guide Rating: B.

Foamglas® S3

Green Guide Rating: A.

Foamglas® T4+

Green Guide Rating: A.

Foamglas® W+F

Green Guide Rating: A+.

Thickness

40–180 mm; consult manufacturer and insert requirements.

Standard product features

Thermal conductivity:

  • Foamglas® F: ≤0.050 W/m²K.
  • Foamglas® S3: ≤0.045 W/m²K.
  • Foamglas® T4+: ≤0.041 W/m²K.
  • Foamglas® W+F: ≤0.038 W/m²K.

Product Options

Technical characteristics:

  • Composition: Pure glass with a high percentage of recycled glass, inorganic and without binding agent additions.
  • Applicable limit temperatures: -260 to +430 °C.
  • Melting point (cf. DIN 4102-17): >1000 °C.
  • Water absorption: 0 (aside from the surfaces in the area of the attached cells).
  • Biological influences: Resistant against microbes as well as against rodent and piercing animals, insects/ vermin.
  • Water vapour diffusion resistance figure: μ = ∞.
  • Capillarity and hygroscopicity: None.
  • Fire behaviour (BS EN 13501-1): A1.
  • Dimensional stability: Does not swell and shrink, warp or creep.
  • Airborne sound reduction: 28 dB at 100 mm thickness (in the mid range frequency area).

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 4 2.0
IFC
IFC2X3 3 1.3
Download now from NBS National BIM Library
