FMB Automatic Fire Curtain

Automatic fire curtain which seals off an area to contain the movement of flames with a defined fire resistance time.

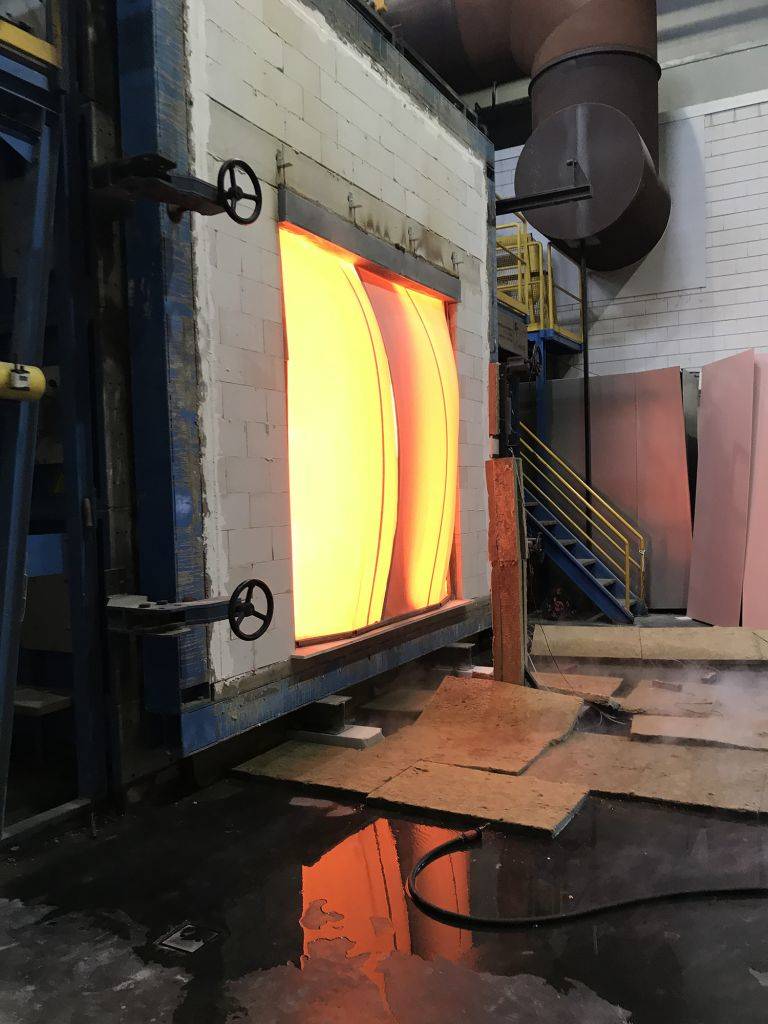

Such curtains can also be partially deployed in the event of a fire to control the movement of gases from a fire within buildings before they are fully used for fire protection. It has been designed and tested according to BS 8524-1:2013, and achieves E180 and EW20 classifications.

It unrolls in a gravity fail safe manner without needing power (gravity fail safe). The fire curtain consists essentially of a roller in a galvanized steel housing, the roller comprises a flexible heat resistant fabric which is impervious to smoke and hot gases, wound around a tube. A heavy bottom bar fitted to the bottom edge of the fabric ensures that the curtain deploys as designed.

Features and benefits:

• Fabricated galvanized steel headbox with integral brackets and removable cover plate underneath.
• Side guides either of a tube guide or roller guide design.
• Guide rails stabilize the surface of the fabric and increase the air-tightness of the system.
• Cloth securely attached to the roller tube.
• Bottom bar comprising either a suspended aluminium profile or a seal at the bottom in the form of a cloth loop.
• Built-in 48 V d.c. tubular motor with speed monitoring.
• Roll up speed: approximately 0.06 m/s.
• Unroll speed: approximately 0.15 m/s.
• Control panel to receive external fire signals and for testing.
• Connection of manual controls.
