Description

Rainwater outlets, roof vents and accessories manufactured from rigid polyurethane with integrated flanges in Atlantic membrane.

  • To be used only as part of Bailey Atlantic single ply waterproofing system.
  • Polyurethane body minimises heat loss and condensation at roof penetration points.
  • Integrated flanges allow watertight seal to vapour barrier and Atlantic waterproofing membrane.
  • Sumped outlets provide high flow rate, reducing number of outlets required.
  • Supplier offers system design and flat roof drainage calculations, including dimensions and number of outlets, calculated to BS EN 12056.

General information
Uniclass 2015
Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS

J41/485 Roof ventilators

Q37/450 Roof drainage outlets

R10/110 Gravity rainwater drainage system

R10/26 Rainwater outlets

R10/365 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets
Product Reference

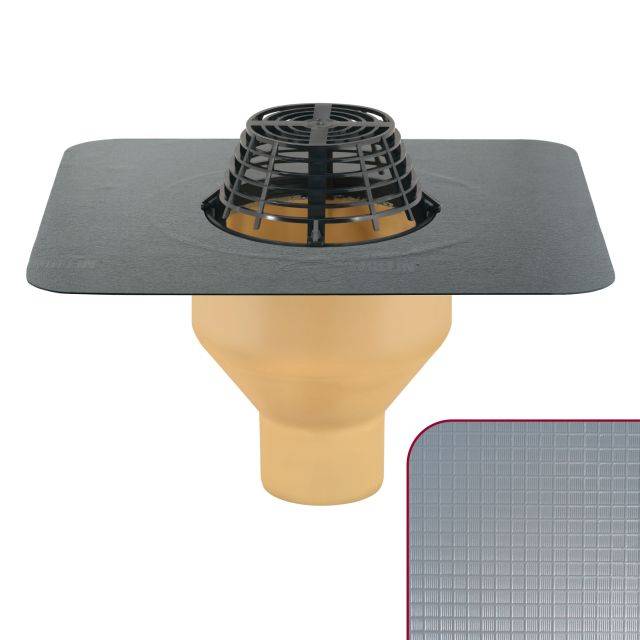

Flowtherm Outlets And Vents With Atlantic Flanges

Rainwater outlets -
Type

Not required

D-550-75, Flow-therm Standard, vertical spigot

For cold/ inverted roofs with socketed 75 mm (external diameter) downpipe.

D-550-110, Flow-therm Standard, verical spigot

For cold/ inverted roofs with socketed 110 mm (external diameter) downpipe.

D-550-160, Flow-therm Standard, vertical spigot

For cold/ inverted roofs with socketed 160 mm (external diameter) downpipe.

D-550-200, Flow-therm Standard, vertical spigot

For cold/ inverted roofs with socketed 200 mm (external diameter) downpipe. Special order.

D-553-75, Flow-therm Universal, vertical spigot

For cold/ inverted roofs with socketed 75 mm (external diameter) downpipe.

D-553-110, Flow-therm Universal, vertical spigot

For cold/ inverted roofs with socketed 110 mm (external diameter) downpipe.

D-554-75, Flow-therm Universal, angled spigot

For cold/ inverted roofs with socketed 75 mm (external diameter) downpipe.

D-554-110, Flow-therm Universal, angled spigot

For cold/ inverted roofs with socketed 110 mm (external diameter) downpipe.

D-568-50, Flow-therm Compact, vertical spigot

For cold/ inverted roofs with socketed 50 mm (external diameter) downpipe.

D-568-75, Flow-therm Compact, vertical spigot

For cold/ inverted roofs with socketed 75 mm (external diameter) downpipe.

D-569-50, Flow-therm Compact, angled spigot

For cold/ inverted roofs with socketed 50 mm (external diameter) downpipe.

D-569-75, Flow-therm Compact, angled spigot

For cold/ inverted roofs with socketed 75 mm (external diameter) downpipe.

D-565-100/140, Flow-therm Retrofit

For connection to existing outlets/ downpipes with internal diameter 100-140 mm.

D-565-140/165, Flow-therm Retrofit

For connection to existing outlets/ downpipes with internal diameter 140-165 mm.

D-565-165/200, Flow-therm Retrofit

For connection to existing outlets/ downpipes with internal diameter 165-200 mm.

D-566-90, Flow-therm Retrofit Extra

For connection to existing outlets/ downpipes with internal diameter 100 mm.

D-562-50, Flow-therm Parapet

For parapet wall drainage with socketed 50 mm (external diameter) downpipe. Special order.

D-562-75, Flow-therm Parapet

For parapet wall drainage with socketed 75 mm (external diameter) downpipe.

D-562-110, Flow-therm Parapet

For parapet wall drainage with socketed 110 mm (external diameter) downpipe.

Extension units

Not required

D-551-80/160, Flow-therm Standard

For warm roofs with insulation thickness 80-160 mm.

D-551-120/220, Flow-therm Standard

For warm roofs with insulation thickness 120-220 mm.

D-555-60/150, Flow-therm Universal

For warm roofs with insulation thickness 60-150 mm.

D-555-120/220, Flow-therm Universal

For warm roofs with insulation thickness 120-220 mm.

D-570-50/220, Flow-therm Compact

For warm roofs with insulation thickness 50–220 mm.

Connection pipes

Not required

F-664-50, Flow-therm Parapet

For use with D-562-50 parapet outlet. Special order.

F-664-75, Flow-therm Parapet

For use with D-562-75 parapet outlet.

F-664-110, Flow-therm Parapet

For use with D-562-110 parapet outlet.

Leaf guards and terrace/ balcony grates

Not required

F-659, Flow-therm Standard/Univ. Terrace Grate

Height adjustable from 34-100 mm.

F-675-1, Flow-therm Compact Balcony Grate

Height adjustable from 60-105 mm.

F-675-1A, Flow-therm Compact Balcony Grate

Height adjustable from 60–105 mm, with trap.

F-675-2, Flow-therm Compact Balcony Grate

Height adjustable from 30–85 mm.

F-675-3, Flow-therm Compact Balcony Grate

Height adjustable from 75–105 mm.

F-675-3A, Flow-therm Compact Balcony Grate

Height adjustable from 75–105 mm, with trap.

F-675-4, Flow-therm Compact Balcony Grate

Height adjustable from 40–85 mm.

F-676, Flow-therm Compact Height Adjuster

95 mm height, for extending height of balcony grates.

F-663-75, Flow-therm Parapet Leaf Guard

For use with D-562-50 or 75 parapet outlets.

F-663-110, Flow-therm Parapet Leaf Guard

For use with D-562-110 parapet outlets.

Retaining units

Not required

F-652-25/105, Flow-therm Standard

For emergency drainage. 25-105 mm adjustable overflow height.

F-661-25/105, Flow-therm Universal

For emergency drainage. 25-105 mm adjustable overflow height.

F-674-50/220, Flow-therm Compact

For emergency drainage. 50-220 mm adjustable overflow height.

Roof ventilators -
Type

Not required.

D-577-110, Flow-therm Warm Roof Vent

For warm roofs, use with F-680-110. 110 mm external diameter.

D-577-160, Flow-therm Warm Roof Vent

For warm roofs, use with F-680-160. 160 mm external diameter.

D-578-110, Flow-therm Vent/ Cable Duct

For warm roof ventilation or cable ducting, use with F-680-110. 110 mm external diameter with 180º return.

D-578-160, Flow-therm Vent/ Cable Duct

For warm roof ventilation or cable ducting, use with F-680-160. 160 mm external diameter with 180º return.

D-579-110, Flow-therm Cold Roof Vent

For cold roofs. 110 mm external diameter.

D-579-160, Flow-therm Cold Roof Vent

For cold roofs. 160 mm external diameter.

Base Plates

Not required

F-680-110, Flow-therm Base Plate

Use with warm roof vents. 110 mm.

F-680-160, Flow-therm Base Plate

Use with warm roof vents. 160 mm.

Caps/ Grates/ Reducers

Not required

F-681-110, Flow-therm Vent Cap

For warm roof vents. 110 mm.

F-681-160, Flow-therm Vent Cap

For warm roof vents. 160 mm.

F-682-110, Flow-therm Vent Grate

For warm roof vents. 110 mm.

F-682-160, Flow-therm Vent Grate

For warm roof vents. 160 mm.

F-683-100/70, Flow-therm Reducer

Reduces vent pipe size from 100 to 70 mm.

Standard product features

Materials:

Rigid polyurethane with integrated Atlantic membrane flanges.

Product Options

Outlets:

- Standard:

  • Conventional, deep sump outlets - Achieve highest flow rate out of Flow-therm range.
  • Available with vertical or angled (90º) spigot for connection to socketed downpipes with vertical drainage or horizontal e.g. in ceiling void or parapet/ through wall drainage.
  • Diameter: 75-200 mm.
  • Supplied with dome leaf guard.
  • With Atlantic flange, allowing Atlantic waterproofing membrane to be sealed round the outlet, for cold or inverted roofs.
  • For warm roofs, use Flow-therm outlet with felt flange (see Flow-therm Outlets and Vents with Felt flanges), with extension unit D-551.

- Universal:

  • Versatile, medium sump outlets - smaller than Standard range with lower flow rate.
  • Available with vertical or angled (90º) spigot for connection to socketed downpipes with vertical drainage or horizontal e.g. in ceiling void or parapet/ through wall drainage..
  • Diameter: 75-125 mm.
  • Supplied with dome leaf guard.
  • With Atlantic flange, allowing Atlantic waterproofing membrane to be sealed round the outlet, for cold or inverted roofs.
  • For warm roofs, use Flow-therm outlet with felt flange (see Flow-therm Outlets and Vents with Felt flanges), with extension unit D-555.

- Compact:

  • Shallow sump outlets for use in balcony/ terrace roofs or situations where void space is restricted.
  • Available with vertical or angled (90º) spigot for connection to socketed downpipes with vertical drainage or horizontal e.g. in ceiling void or parapet/ through wall drainage.
  • Diameter: 50-75 mm.
  • Supplied with dome leaf guard.
  • With Atlantic flange, allowing Atlantic waterproofing membrane to be sealed round the outlet, for cold or inverted roofs.
  • For warm roofs, use Flow-therm outlet with felt flange (see Flow-therm Outlets and Vents with Felt flanges), with extension unit D-570.

- Retrofit:

  • Refurbishment outlets for installation inside the existing outlets or connection to old pipework.
  • Available in 3 different sizes, supplied with 2 different size rubber 'O' rings, allowing a greater range of outlet or pipework sizes to be accommodated, (100-200 mm internal diameter).
  • Supplied with dome leaf guard.
  • With Atlantic flange, allowing Atlantic waterproofing membrane to be sealed round the outlet.
  • Retrofit Extra - supplied with 630mm long connection pipe, allowing connection to outlets/ pipework that is a long way below the new surface level (due to increased insulation thicknesses or other reasons). Available in 90 mm external diameter, excluding the 'O' ring.

- Parapet:

  • Outlets for parapet wall or mansard roof drainage. To be used with connection pipe.
  • Connection pipe and leaf guards supplied separately.
  • With Atlantic flange, allowing Atlantic waterproofing membrane to be sealed round the outlet.
  • Diameter: 50-110mm.

Extension units:

  • Connects to outlets to extend through insulation in warm roof applications.
  • With Atlantic flange, allowing Atlantic waterproofing membranes to be sealed round the outlet.
  • To be used with outlets with felt flanges (see Flow-therm Outlets and Vents with Felt flanges) to allow sealing of the vapour barrier round the outlet.
  • Available in Standard, Universal and Compact ranges.

Connection pipes:

  • To be used with parapet outlets.
  • Polypropylene socketed pipe, with 'O' ring for connection to outlet and downpipe or drainage into a hopper.
  • Diameter: 50-110 mm.
  • Length: 500 mm.

Leaf guards and terrace/ balcony grates:

  • F-659, flat leaf grate for terrace/ balcony roofs. To fit Standard or Universal outlets.
  • F-675-1, square, flat leaf grate for terrace/ balcony roofs. To fit Compact outlets, with inlet and leaf guard to allow drainage at roof level.
  • F-675-1A, as F-675-1 with trap.
  • F-675-2, square, flat leaf grate for terrace/ balcony roofs with low construction heights. To fit Compact outlets, with inlet at base.
  • F-675-3, round, flat grating for terrace/ balcony roofs. To suit 50 or 75 mm diameter downpipes with inlet and leaf guard to allow drainage at roof level. To fit Compact outlets.
  • F-675-3A, as F-675-3 with trap.
  • F-675-4, round, flat grating for terrace/ balcony roofs with low construction heights. To suit 50 or 75 mm diameter downpipes. To fit Compact outlets, with inlet at base.
  • F-676, height adjustment unit for Compact balcony grates, 95 mm high. Can be shortened by cutting. Can be lengthened by stacking 2 units.
  • F-663, plastic leaf guard for use with parapet outlets. Available in 50 or 75 mm.

Retaining units:

  • Connects to outlets to act as an emergency drain.
  • Unit is height adjustable, allowing installer to set the overflow level.
  • Outlets with retaining units require drainage separate from the main system.
  • Available in Standard, Universal and Compact ranges.

Roof Ventilators:

- Warm roof:

  • Vent for use in warm roof constructions. Supplied with 'O' ring and 750 mm long pipe.
  • With Atlantic flange, allowing Atlantic waterproofing membranes to be sealed round the vent.
  • To be used in conjunction with base plate (F-680) enabling sealing of the vapour control layer round the vent.
  • Available in 110 or 160 mm external diameter, allowing direct connection to socketed pipe of the same size.
  • Available with 180º bend fitted to pipe, for use as vent or cable duct.

- Cold roof:

  • Vent for use in cold roof constructions, supplied with vent cap and 400 mm long pipe.
  • With Atlantic flange, allowing Atlantic waterproofing membranes to be sealed round the vent.
  • Diameter: 110 or 160 mm.

- Base plates:

  • For use with warm roof vents, to allow sealing of vapour control layer to integrated felt flange.
  • Available in 110 or 160mm diameters, with rubber sealing ring.

- Caps/ grates/ reducers:

  • Plastic caps or grates to be fitted to the top of warm roof vents, to prevent leaves and other debris entering the pipe.
  • Reducer - to be fitted to 110 mm vent, where internal or existing pipework is only 70 mm.

Literature
Third party certifications
  • LGA Qualitest: EN 1253. Certificate No: 0420093
