Motorised Curtain Tracks - Flow

Verified by manufacturer 3 months ago

Umbra

High Quality Motorised Curtain Tracks | Hardwired or Battery Power | Smart Home/BMS Integration | Wired, Radio or Digital Control

Jump to:
01792 981921 Website

Application

Well suited to residential projects and high end commercial endeavors.


The best way to add some class and style to you shading.

Description

Flow - Form and function rolled into one. Motorised curtain tracks make for one of the most stylish shading options on the market, striking a balance between the aesthetics of the curtain itself and the effortless convenience of motorisation and automation.


It's probably wise to note that Flow consists of the headrail that makes motorisation possible. Fabrics for the curtain can be sourced from any fabric shop, if you ask one of our salespeople nicely they might even have some recommendations up their respective sleeves.


Sizes

Flow can handle curtains up to 10m wide and with a maximum weight of 60kg.


Motors

For Flow tracks, we use Glydea and Movelite motors from Somfy.


With this range of motors, we can make motorised curtains with mains or battery power.

Controls


Hardwired - Used for either physical switches on the wall, or wired directly into your smart home or BMS system. Hardwired control is always more reliable than radio over long distances.


Radio - Available either as small handsets with neat wall mounts, or as wall fixed switches. Radio offers a simple and flexible control option, ideal for smaller or retrofit projects.


Digital - The ultimate choice for intelligent control, with 2 way communication between curtains and controllers. providing features like infinitely customisable configuration at anytime, hembar alignment and straightforward wiring.


Pull To Start - This can be added onto any of the other control options for a 'semi manual' control. It means that curtains can either be fully drawn with a prolonged pull, or set into motion with a gentle tug.

General information

Color

White

Black

Finish

Powder-coated

Material

Aluminium

Shape

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

Specification data - Window curtain supports

Overall length

Guidance for specification option:

Widths up to 10 m, insert requirements or refer to a drawing or schedule.

Material

Aluminium.

Finish

Powder-coated.

Colour

White.

Black.

Custom.

Guidance for specification option:

Insert requirements.

Operation

240 V a.c. motorized.

Battery motorized.

Integral accessories

Hardwired switch.

Dry contact switch.

Radio remote control.

Motor

Mounted under track (concealed by curtain).

Mounted above track (concealed in ceiling).

Manufacturer guidance

Can be mounted at LH or RH.

Brackets

Top-fix swivel bracket.

Top-fix one-touch bracket.

Adjustable face fix bracket.

Heading

Standard.

Ripple.

Curtain track

Straight

Bent.

Curved.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

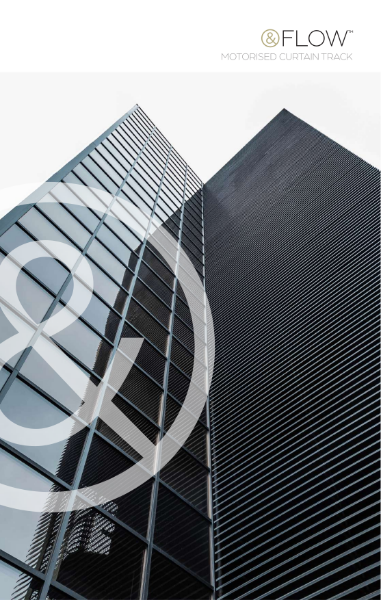

Flow Product Brochure

Flow Product Brochure

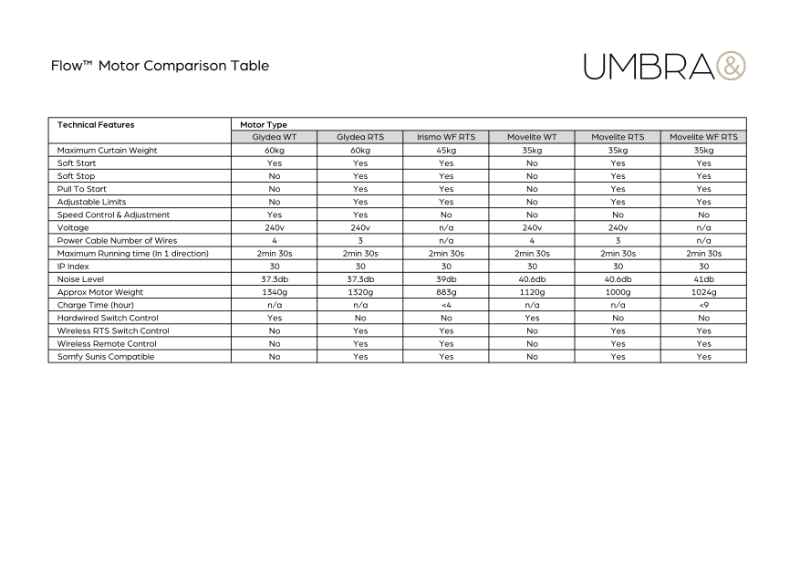

Flow Motor Comparison Table

Flow Motor Comparison Table

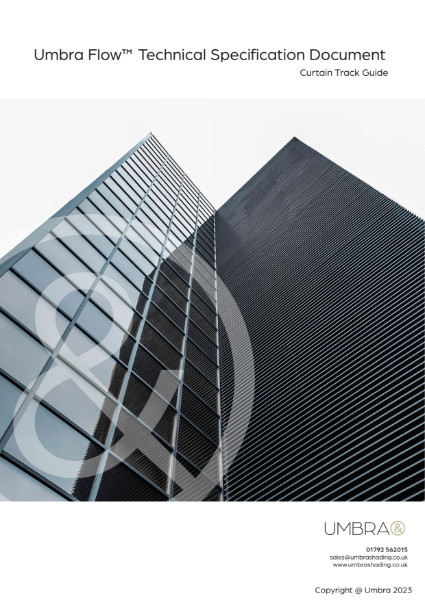

Flow Technical Specification

Flow Technical Specification
