Flagon SR Silver Art Glossy - Single ply mechanically fixed warm roof system with silver look
Verified by manufacturer 6 days ago

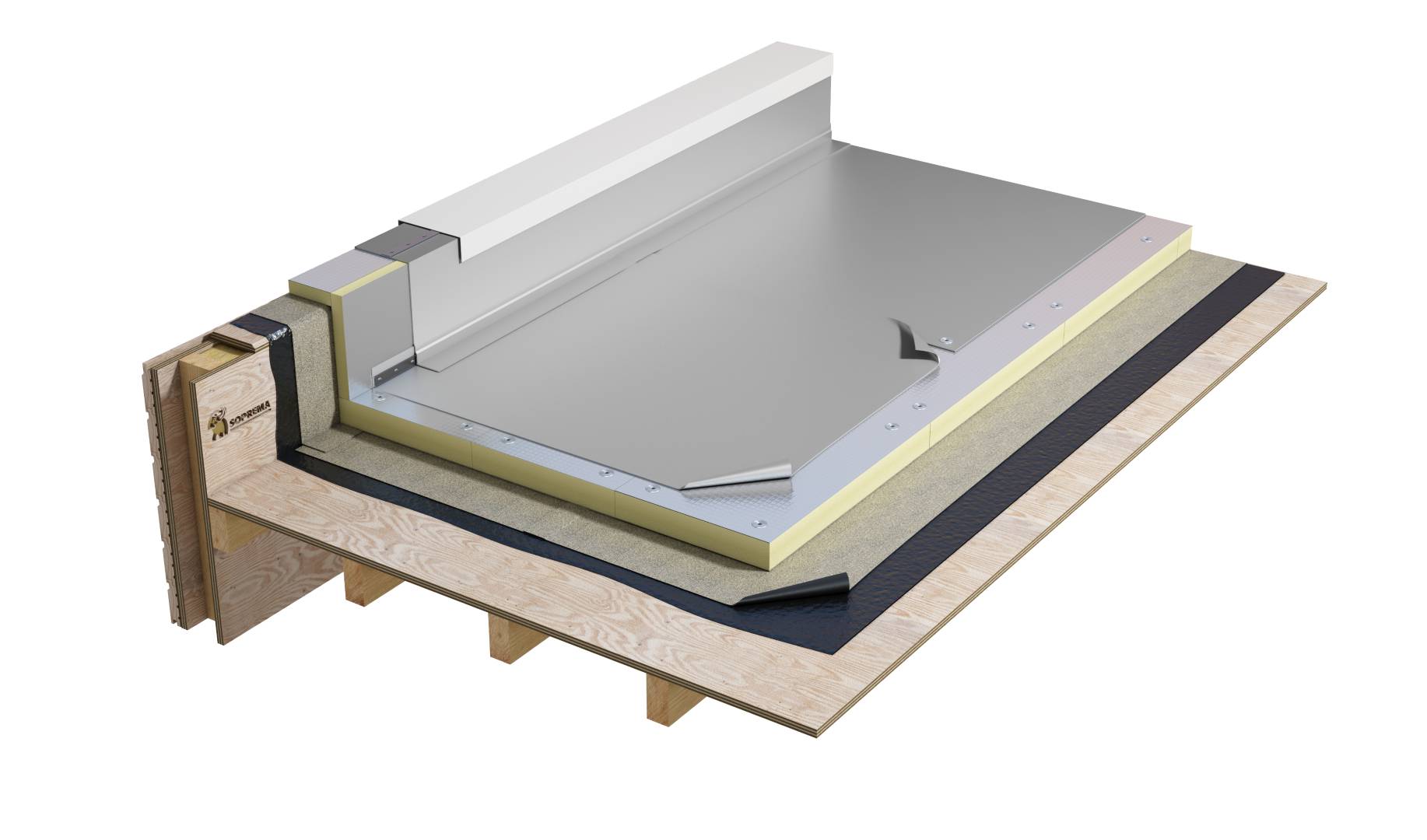

Single ply mechanically-fixed warm roof system on a timber deck, with mechanically-fixed PIR insulation and SBS-modified bitumen AVCL.
Application
For use on an exposed roof, with a mechanical fastening system. Contact Soprema for alternate applications.
Description
Plasticized polyvinyl chloride (PVC) roofing membrane containing aluminium particles with polyester mesh reinforcement, designed for mechanical applications. Manufactured by coextrusion or cast process.
Features and benefits:
- Single component primer.
- High tear resistance waterproofing layer.
- Aesthetic finish.
- BROOF(t4) rated.
- 20 year system warranty.
- UV resistant.
- Flame free application.
- Excellent dimensional stability.
- Easy to weld.
- Fully adhered.
General information
Color | Silver |
Finish | Gloss |
Material | Polyvinyl chloride (PVC) |
Warranty description | 20 year |
Uniclass | |
CAWS | J42/130 Cold deck roof covering J42/110 Warm deck roof covering J42/400 Waterproof membrane J42/10 Warm deck roof covering |
SKU Code | WNB2PFMFSI_002 |
Product range |
Specification data - Single layer sheet warm roof covering systems
System performance | Waterproof to BS EN 1928, method B. Fire performance to BS EN 13501-5, BROOF(t4). |
Preparation | |
Horizontal work | Flagon SFc Silver Art Membrane. |
Skirtings and vertical work | Flagon SV Copper Art. |
Lower protection layer | Polyester fleece. |
Air and vapour control layer | |
Type | Sopravap Stick Alu S 16. |
Attachment | Self adhered to primed deck. |
Insulation | |
Type | Polyisocyanurate (PIR) foam boards. |
Attachment | Mechanically fixed or adhered. |
Waterproof covering | |
Type | Polyvinyl chloride (PVC) with polyester mesh reinforcement. |
Attachment | Adhered. |
Joints | Hot air welded. |
Accessories | Not required. Soprema RWO. Soprema Metal Edge Trims. |
Execution | Works to be completed by Soprema Approved Installers only. |
Tensile strength (minimum) | ≥1100 N/50mm. |
Elongation to break | ≥15%. |
Tear resistance | ≥200 N/mm. |
Impact resistance | ≥450 mm. Guidance for specification option: 1.2 mm. ≥800 mm. Guidance for specification option: 1.5 mm. 900 mm. Guidance for specification option: 1.8 mm. ≥1250 mm. Guidance for specification option: 2 mm. |
Width (minimum) | 1.6 m. |
Minimum | 1.2 mm. |
Colour | Lead grey. Light grey. |
Sustainability data
Material | Polyvinyl chloride (PVC) |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 2 |
