Flagon SR DE - Single ply mech. fixed warm roof system (WNB2PFMFBG_001)

Flagon SR DE - Single ply mech. fixed warm roof system (WNB2PFMFBG_001)

Soprema UK

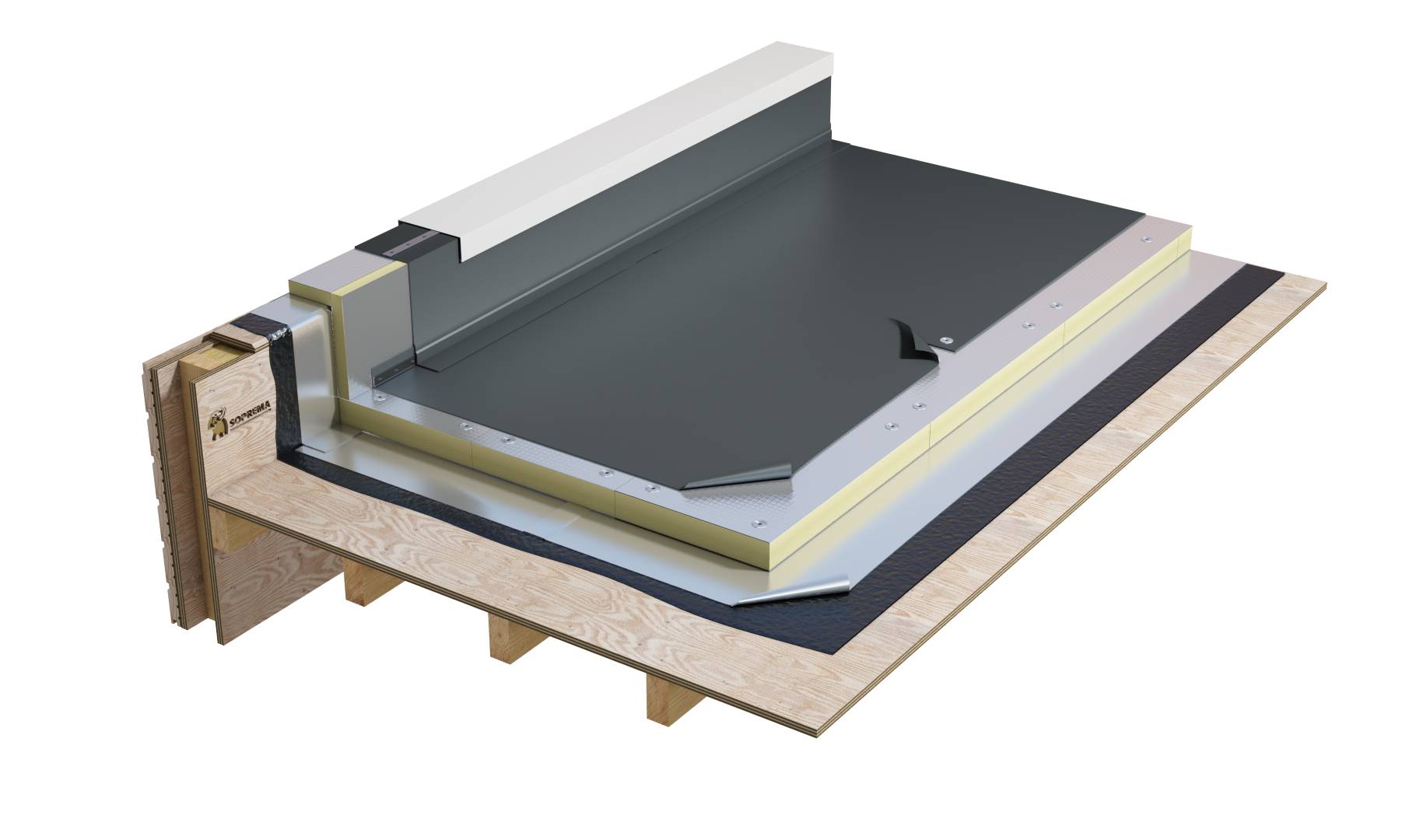

Single Ply mechanically fixed warm roof system on wood substrate with mech fixed PIR insulation. Final layer is a plasticised PVC with polyester reinforcement fixed with hot air welded laps

Jump to:
+44 (0)330 058 0668 www.soprema.co.uk
Description

Soprema's single ply mechanically fixed warm roof system on wood substrate. This system is designed using a cold applied bituminous primer with a self adhesive membrane activator within it. The vapour barrier membrane is composed of SBS modified bitumen with a composite polyester reinforcement, with a PIR foil faced insulation laid over. The final waterproofing layer is a synthetic waterproofing membrane composed of plasticised PVC with a polyester reinforcement which is mechanically fixed with hot air welded laps.

Features include:

  • Single component primer
  • High tear resistance waterproofing layer
  • Easy to weld
  • BROOF(t4) rated
  • 20 year system warranty

General information

Finish

User to specify

Color

telegrey 4 (RAL 7047)

Features

Single component primer / High tear resistance waterproofing layer / Easy to weld / BROOF(t4) rated / 20 year system warranty

Material

PVC

WarrantyDescription

Contact Soprema UK for details

Uniclass 2015

Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 2 2.1
Download now from NBS National BIM Library
