Flagon Sb - Single ply, fully adhered warm roof system
Verified by manufacturer 2 months ago

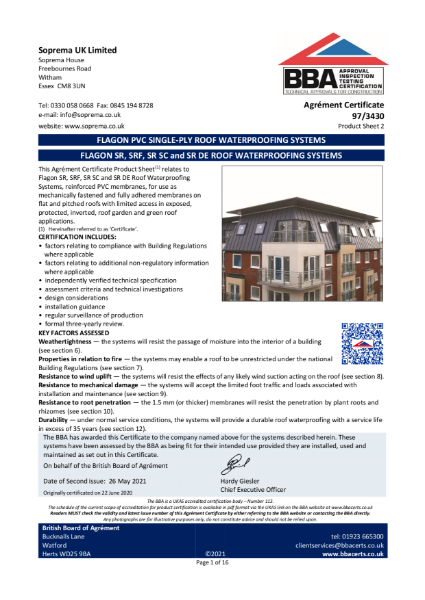

BBA Agrément Certificate
Certificate type

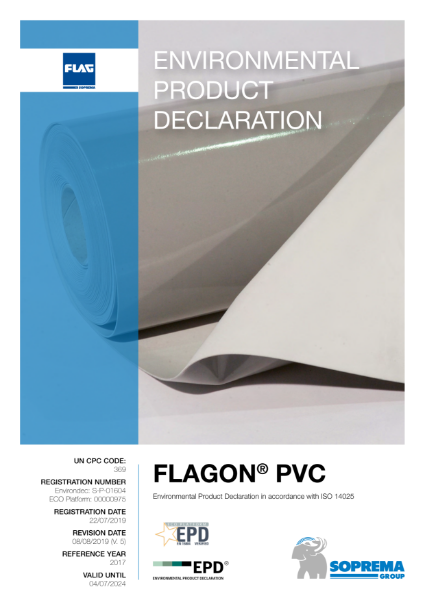

EPD
Certificate type
A warm roof system comprising of a single layer PVC waterproofing membrane with a non-woven polypropene fleece to the lower side, PIR Insulation and a bituminous AVCL.
Application
For use as a fully bonded single layer waterproofing system.
Description

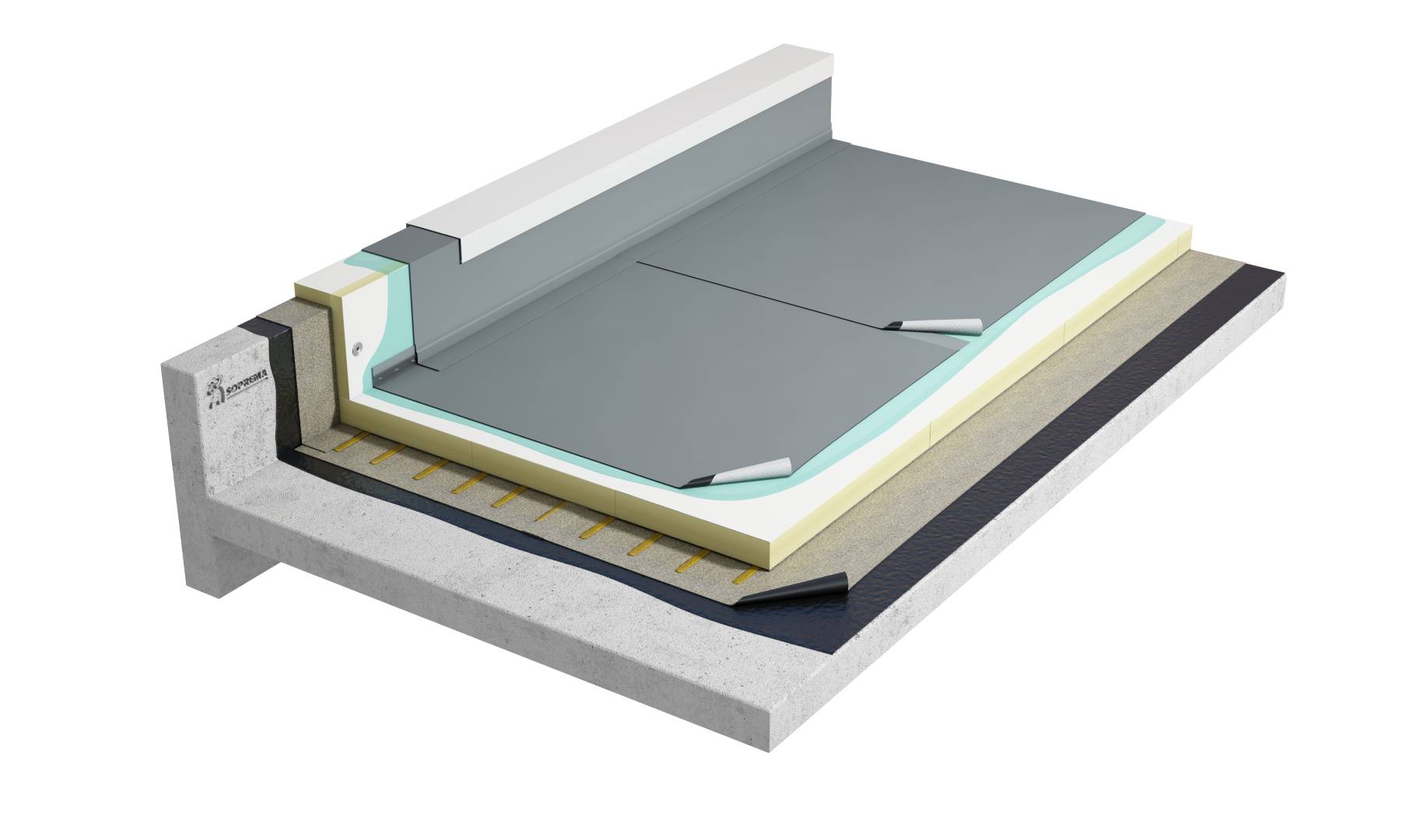

Single Ply fully adhered warm roof system on concrete, with PIR Insulation, fixed with a waterproofing adhesive and finished with a membrane composed of flexible PVC and a non woven polypropene fleece.
Features and benefits:
- High resistance to weathering, UV rays, humidity, and heat.
- Flexible.
- Resistant to puncture.
- Can serve as an integrated separation layer.
- To be welded with hot air.
- Applied in conjunction with accessories from Flag – consult manufacturer for details.
- BBA certified, CE marked and meets Broof classification (t1 and t4) to EN 13501-5.
General information
Color | Grey Guidance for specification option: Telegrey 4 (RAL 7047). |
Finish | Smooth |
Material | Polyvinyl chloride (PVC) |
Length | 20000 mm |
Width | 2100 mm |
Warranty description | Manufacturer guidanceConsult with manufacturer. |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering J42/130 Cold deck roof covering J42/400 Waterproof membrane |
Product range |
Specification data - Polymeric membranes
Material | Polyvinyl chloride (PVC). |
Integral backing fleece | Integrated non woven polypropene fleece. |
Standard | To EN 13956: 2012. |
Performance characteristics | See Flagon Sb technical data sheet. |
Third-party certification | British Board of Agrément (BBA) Certificate.Guidance for specification option: Certificate 97/3430. |
Width (minimum) | 2.1 m |
Thickness (minimum) | 1.2 mm. |
Colour | Telegrey 4, RAL 7047. |
Accessories | Termination profile.Flag metal trims.Drain outlets.Membrane walkway.Lightning conductor pads. |
Tear resistance | 200 N. Guidance for specification option: 1.2 mm. 250 N. Guidance for specification option: 1.5 mm. 270 N. Guidance for specification option: 1.8 mm. 300 N. Guidance for specification option: 2 mm. |
Impact resistance | 450 mm. Guidance for specification option: 1.2 mm. 800 mm. Guidance for specification option: 1.5 mm. 900 mm. Guidance for specification option: 1.8 mm. 1250 mm. Guidance for specification option: 2 mm. |
Shear resistance of joints (to EN 12317-2) | 700 N/ 50 mm. Guidance for specification option: 1.2 mm. 850 N/ 50 mm. Guidance for specification option: 1.5 mm. 1000 N/ 50 mm. Guidance for specification option: 1.8 mm. 1100 N/ 50 mm. Guidance for specification option: 2 mm. |
Watertightness | Pass. |
Vapour transmission rate (to BS EN 1931) | 24 m. Guidance for specification option: 1.2 mm. 30 m. Guidance for specification option: 1.5 mm. 36 m. Guidance for specification option: 1.8 mm. 40 m. Guidance for specification option: 2 mm. |
Reaction to fire | Grade E. Manufacturer guidanceTo EN 11925-2 / EN 13501-1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Polyvinyl chloride (PVC) |
Expected Life | 20 year |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
Third party certifications
Literature

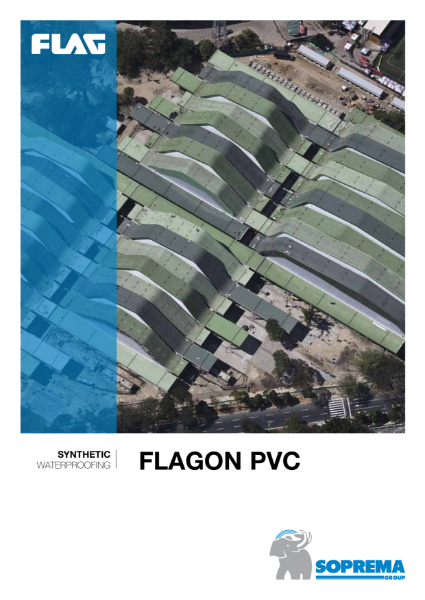

Flagon PVC System

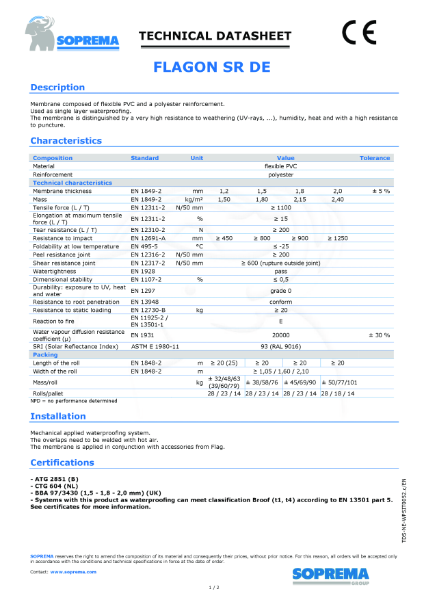

Flagon PVC Technical Data Sheet
