Flagon Sb - Single ply fully adhered warm roof system (CNB2PGFABG_001)

Flagon Sb - Single ply fully adhered warm roof system (CNB2PGFABG_001)

Soprema UK

Single Ply fully adhered warm roof system on concrete, with PIR Insulation, fixed with a waterproofing adhesive and finished with a membrane composed of flexible PVC & a non woven polypropene fleece

Jump to:
+44 (0)330 058 0668 www.soprema.co.uk
Description

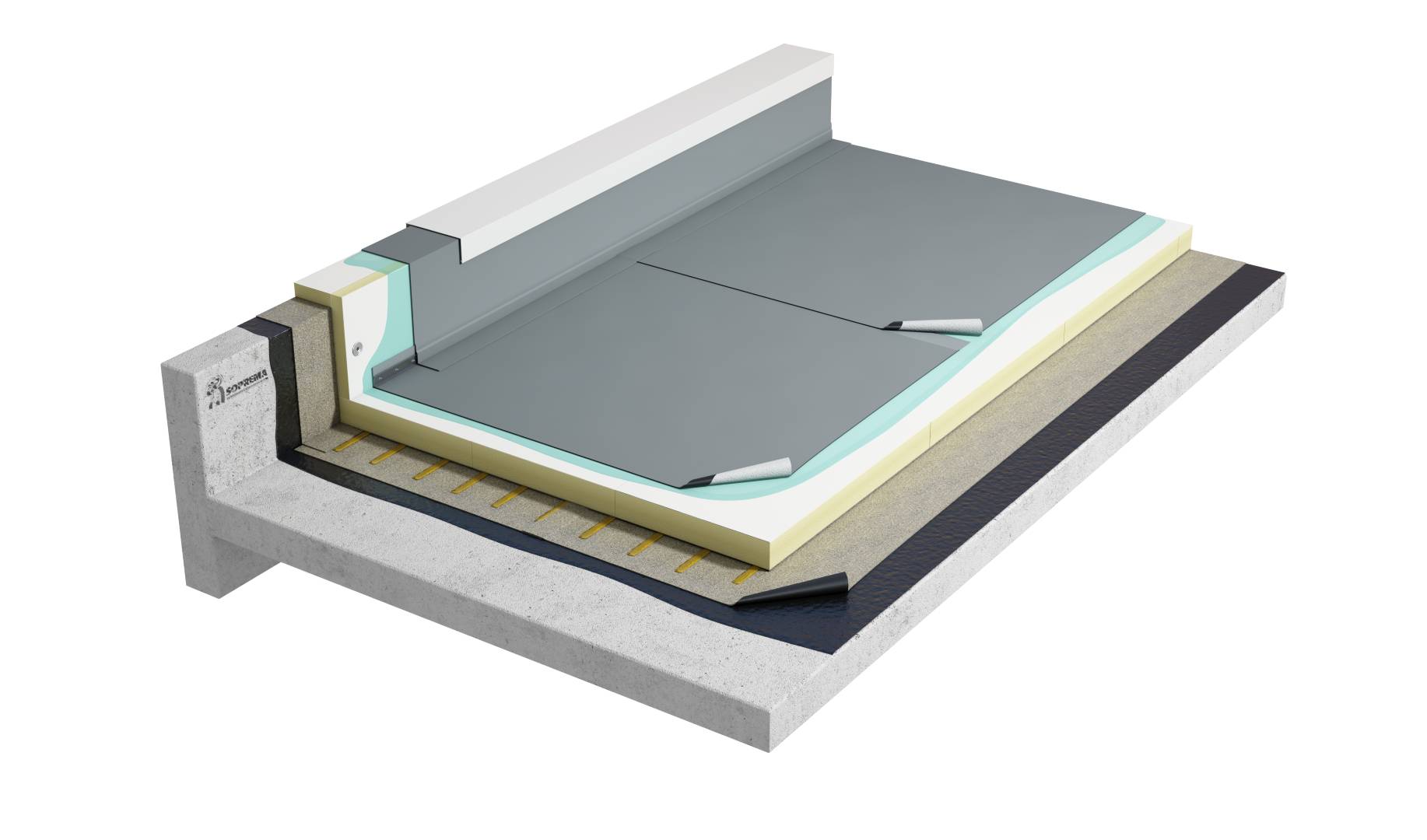

Soprema's single ply fully adhered warm roof system on concrete substrate. This system is designed using a cold applied bituminous primer with a self adhesive vapour barrier membrane composed of SBS bitumen and a composite aluminium reinforcement with a PIR glass tissue faced insulation adhered using a single component polyurethane adhesive. The waterproofing layer is fully adhered with a membrane composed of flexible PVC coupled on the back with a non woven polypropene fleece (except the overlap).

Features include:

  • Water proofing layer with high resistence to weathering (UV rays etc), humidity, heat and a high resistence to puncture
  • BROOF(t4) rated
  • 20 year system warranty

General information

Color

telegrey 4 (RAL 7047)

Features

Water proofing layer with high resistence to weathering (UV rays etc), humidity, heat and a high resistence to puncture / BROOF(t4) rated / 20 year system warranty

Material

PVC

WarrantyDescription

Contact Soprema UK for details

Uniclass 2015

Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 2 2.1
