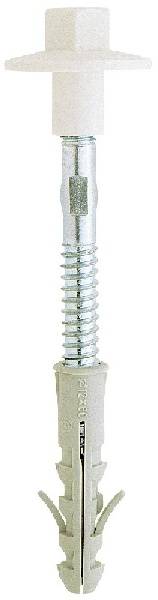

FL Wash Basin & Bidet Wall Fixing
Verified by manufacturer 7 months ago
M8, Nylon bush (FL)
M8, Nylon bush (FL)
Range of washbasin/ bidet wall fixings.
Application
For use as fixings for wall-mounted washbasins and bidets.
Suitable for connections into:
- Concrete.
- Honeycomb brick.
- Aerated concrete.
- Solid stone.
Partially suitable for connections into:
- Hollow dense aggregate block.
- Solid brick.
- Lightweight honeycomb brick.
- Hollow light aggregate block.
Description
Range of washbasin/ bidet wall fixings.
Available with Nylon nut or Nylon bush/ steel nut.
General information
Color | White Guidance for specification option: Visible nut only. |
Finish | Smooth Guidance for specification option: Visible Nylon nut only. |
Material | Nylon Steel |
Shape | Circle Hexagon |
Length | 60 mm 80 mm 100 mm 110 mm 120 mm |
Width | 8 mm Guidance for specification option: M8. 10 mm Guidance for specification option: M10. 12 mm Guidance for specification option: M12. 14 mm Guidance for specification option: M14. Manufacturer guidanceBolt diameter only. |
Uniclass | |
CAWS | N13/335 Washbasins N13/20 Bidets N13/30 Washbasins N13/325 Bidets |
Specification data - Framing fasteners
Screw material | Steel, white zinc-plated ≥5 µm to ISO 4042. |
Sleeve material | Nylon, Pa6 (white, RAL 9010). |
Head arrangement | Nylon nut, Pa6. |
Anchor length | 110 mm (61400B081100C).Manufacturer guidanceTwo per pack as standard. |
Thread diameter | 8 mm. |
