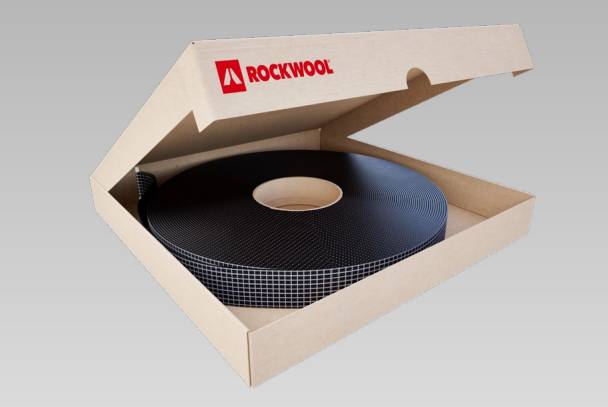

FirePro® PWRoll - Intumescent Tape
Verified by manufacturer 6 days ago
FirePro® PWRoll is a fire-resistant intumescent wrap designed, tested, and certified to seal service penetration apertures containing plastic and insulated pipes. I
Application
Suitable for sealing service penetration apertures containing plastic pipework and insulated pipes up to 250 mm outer diameter.
Description
FirePro® PWRoll is a graphite-based intumescent wrap that provides a high-volume and pressure expansion seal around pipe services when exposed to fire. FirePro PWRoll is 40mm wide and is suitable for use around pipes with an outer diameter of up to 160mm.
FirePro PWRoll provides fire resistance of up to 240 minutes in floor constructions and up to 120 minutes in wall constructions in accordance with BS EN 1366-3: 2021+A1: 2024, subject to the application. FirePro PWRoll has replaced FirePro Intumescent Pipe Wrap CE/Pipe Wrap Roll as the new EN-tested solution.
Features and benefits:
- Tested in accordance with BS EN 1366-3: 2021+A1:2024.
- Classified in accordance with BS EN 13501-2: 2023.
- Certificate number: UL-EU-01358-EN.
- No mechanical fixings required for installation.
- Supplied as a 25 m roll.
- Tested within FirePro® CB50 fire-stopping batt system
- Tested within the FirePro Compound fire-stopping system
General information
Color | Black |
Finish | Unfinished |
Material | Intumescent Graphite |
Shape | Rectangle |
Length | 25000 mm |
Width | 40 mm |
Height | 2 mm |
Uniclass | |
CAWS | P12/35 Flexible intumescent gap sealers P12/330 Flexible intumescent gap sealers |
Specification data - Flexible intumescent gap seals
Classification data | |
Third-party certification | Certified by UL-EU, certificate number: UL-EU-01358-EN. |
Size | 2 x 40 mm wide. |
Fire performance | Fire resistance: EI 240 to BS EN 13501-2. Guidance for specification option: Up to four hours of resistance. |
Roll length | 25 000 mm. |
Density | 1.31 g/cm³. |
Expansion | 22–25 times its original volume. Manufacturer guidanceVolume expansion at 450°C. |
Pressure | 0.55–1.32 N/mm². Manufacturer guidanceExpansion pressure. |
Colour | Black. |
BaseMaterial | Graphite-based intumescent. |
Sustainability data
Material | Intumescent Graphite |
Literature
FirePro® PWRoll - Product Data Sheet
