FirePro® Pipe Collar - Intumescent Pipe Collar
Verified by manufacturer 9 days ago
BS EN 13501-2:2023
Certificate type

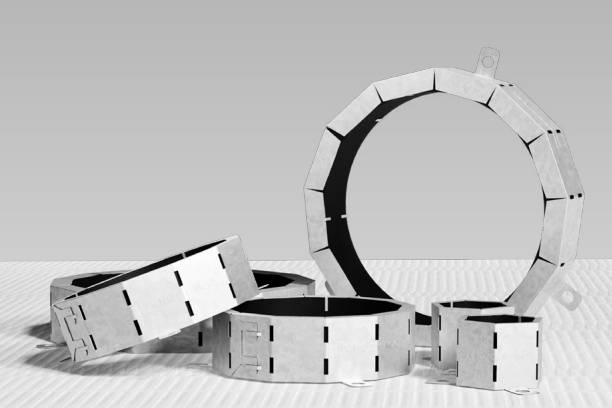

FirePro® Pipe Collar has a galvanised steel shell containing a fire-resistant intumescent wrap, designed, tested, and certified to seal service penetration apertures containing plastic pipework..
Application
Suitable for the use in rigid and flexible walls and floors where combustible pipes penetrate to reinstate the fire performance.
Description
FirePro® Pipe Collar includes a graphite-based intumescent wrap that provides a high-volume and pressure expansion seal around pipe services when exposed to fire. FirePro Pipe Collar is 40mm wide and is suitable for use around pipes with an outer diameter of up to 160mm.
FirePro Pipe Collar provides fire resistance of up to 240 minutes in floor constructions and up to 120 minutes in wall constructions in accordance with BS EN 1366-3: 2021+A1: 2024, subject to the application. It is currently available in three sizes to suit combustible pipes with an outside diameter between 32mm and 160mm. FirePro Pipe Collar has replaced FirePro Pipe Collar CE as the new EN-tested solution
Features and benefits:
- Tested in accordance with BS EN 1366-3: 2021+A1:2024.
- Classified in accordance with BS EN 13501-2: 2023.
- Certificate number: UL-EU-01359-EN.
- Suitable for flexible walls, rigid walls and floor constructions.
- Tested with FirePro® CB50/60 as a fire-stopping solution.
- To seal standard plastic pipe penetrations 40–160 mm diameter.
- Compatible with pipe materials: Polyvinyl chloride (PVC); polypropylene (PVC); polyethylene (PE); high-density polyethylene (HDPE); and multi-layer composite pipes (MLCP).
General information
Color | Silver |
Finish | Galvanized |
Material | Steel Intumescent |
Shape | Circle |
Width | 40 mm 160 mm |
Uniclass | |
CAWS | P12/370 Pipe collars P12/43 Pipe collars |
Specification data - Surface-mounted intumescent pipe collars
Classification data | |
Third-party certification | Certified by UL-EU, certificate number: UL-EU-01359-EN. |
Sizes | Guidance for specification option: Various sizes available to suit pipe diameters from 40–250 mm, consult manufacturer and insert requirements. |
Fire performance | Fire resistance: Up to 4 hours to BS EN 13501-2. Guidance for specification option: The performance of FirePro Pipe Collar will be limited to the performance of the substrate. |
Application temperature | 5–40°C. |
Expansion | 22–35 times original volume. |
Pressure | 0.55–1.32 N/mm². |
Sustainability data
Material | Steel Intumescent |
