Description

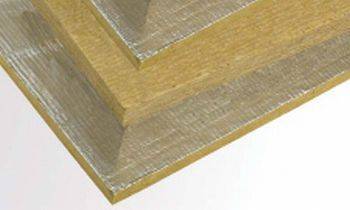

Fire-teK Beam and Column Slab is a non-combustible Rock Mineral Wool slab, for use in the fire protection of structural steel work and steel cased mezzanine column systems for up to 240 minutes.

Features and benefits:

  • Non-combustible with a melting point in excess of 1000°C.
  • The slab is manufactured to factory tolerances, enabling the specifier to be certain that the correct thickness of fire protection has been applied.
  • Quick and easy to check that all relevant areas have been protected.
  • Rock Mineral Wool fire protection slabs are easy to handle and fit on site particularly for overhead work.

General information
Finish

Aluminium foil face on one side

Unfaced

Uniclass 2015
Mineral wool slab insulation (Pr_25_57_06_56)Primary
Specification data - Mineral wool slab insulation
Product Reference

Fire-teK Beam and Column Slab

Thickness

20 mm

25 mm

30 mm

35 mm

40 mm

45 mm

50 mm

55 mm

60 mm

Finish

Aluminium foil face on one side

Unfaced

Standard product features

Slab size (l x w):

1800 x 1200 mm.

Fire performance:

  • Non-combustible to BS 476-4:1970 (1984).

Environmental:

'C' generic BRE Green Guide rating.

Product Options

Facing:

Fire-teK Beam and Column Slab is also available with a bright Class '0' aluminium foil facing.
