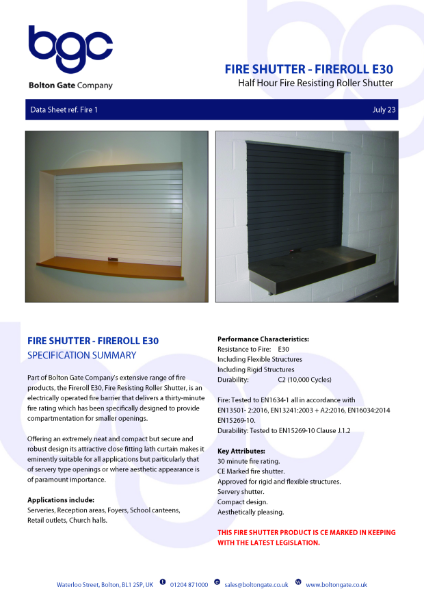

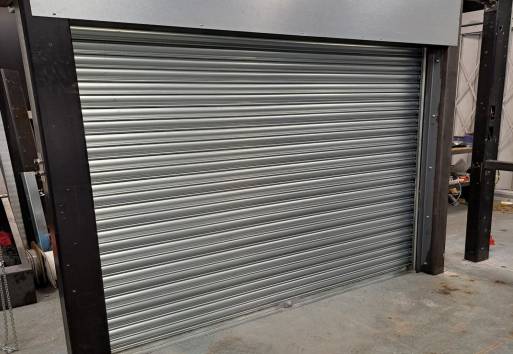

Half-hour fire-resisting roller shutter - E30 Fire.

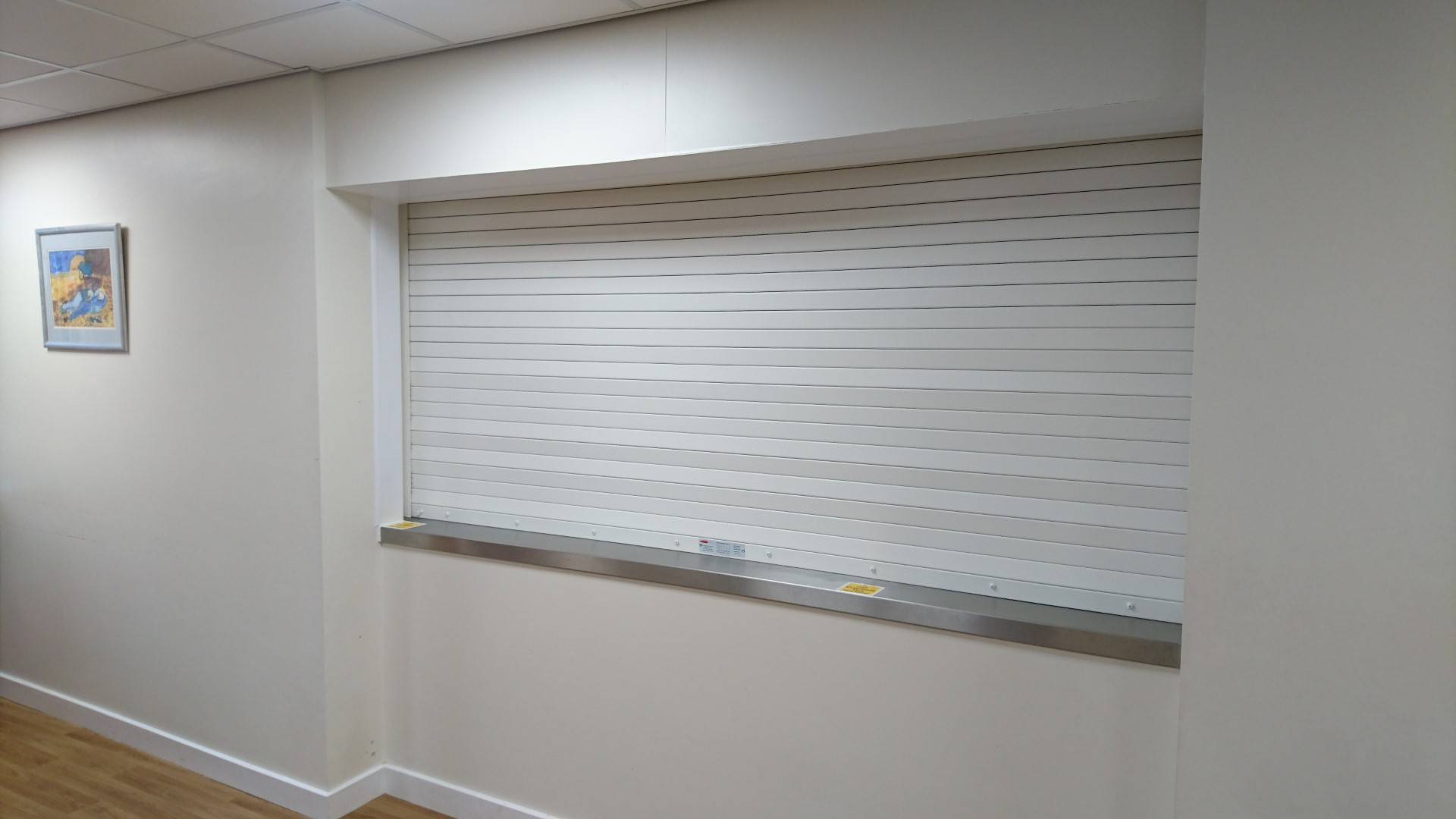

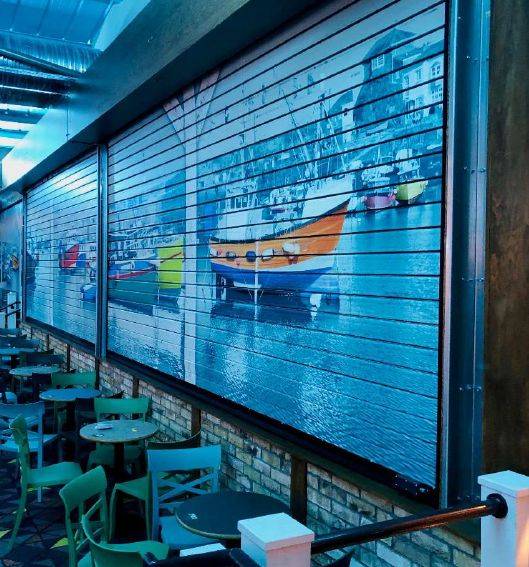

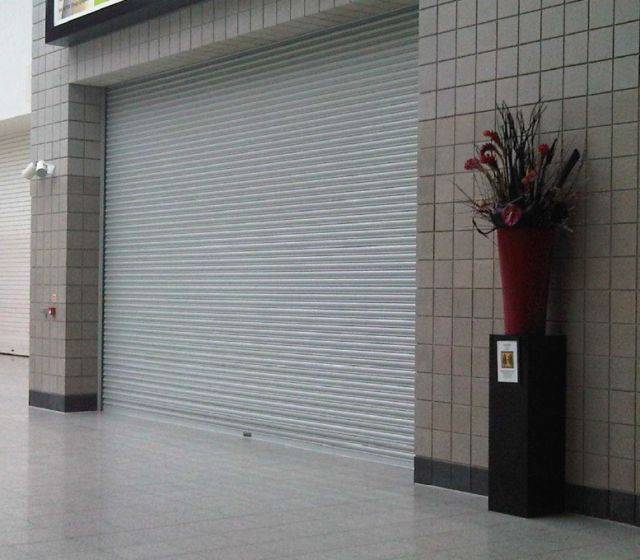

Serveries, Reception areas, Foyers, School canteens,
Retail outlets, Church halls.
Performance Characteristics:
Resistance to Fire: E30
Including Flexible Structures
Including Rigid Structures
Durability: C2 (10,000 Cycles)
Fire: Tested to EN1634-1 all in accordance with
EN13501- 2:2016, EN13241:2003 + A2:2016, EN16034:2014
EN15269-10.
Durability: Tested to EN15269-10 Clause J.1.2
Key Attributes:
30 minute fire rating.
CE Marked fire shutter.
Approved for rigid and flexible structures.
Servery shutter.
Compact design.
Aesthetically pleasing.
Part of Bolton Gate Company’s extensive range of fire products, the Fireroll E30, Fire Resisting Roller Shutter, is an electrically operated fire barrier that delivers a thirty-minute fire rating which has been specifically designed to provide compartmentation for smaller openings.
Offering an extremely neat and compact but secure and robust design its attractive close fitting lath curtain makes it eminently suitable for all applications but particularly that of servery type openings or where aesthetic appearance is of paramount importance.
Operation
The Speedsafe drive unit has a 230-volt nominal single-phase geared induction motor with an electromagnetic brake, limit switches, release unit, a built-in starter panel and low-level push button station with emergency stop button.
The design provides a fail-safe system which will close the shutter automatically in the event of a fire situation.
Activation is via a signal from the fire alarm system to an auto reset solenoid which, when activated, releases the motor brake allowing the shutter to close by gravity with a controlled descent.
A safety brake is supplied to comply with the safeguarding requirements of EN12604.
Manual operation in the event of a power loss is achieved by releasing a pull cord to close the shutter under controlled descent and a hand chain to open.
Curtain
The shutter curtain is constructed from continuously interlocking 51mm flat faced laths securely held in place by endlocks.
Bottom Rail
The bottom rail is also formed from a reinforced lath to give uniformity of appearance.
Side Guides
Vertical guides are fabricated from cold rolled galvanised steel channels 50 x 25mm which are attached to the supporting structure.
Roller
The roller is made from seamless steel tube of sufficient diameter and wall thickness to resist deflection and is supported in bearings mounted on each endplate.
Endplates
Fabricated from steel plate and prepared to accept the coil casing. Securely bolted to steel fixing angles which are drilled for attachment to the structure at the correct centres.
Coil Casing
Coil and motor casings are constructed from galvanised steel and cover all moving parts at high level.
Finish
Fireroll E30 is supplied in a galvanised finish as standard.
Where non-galvanised parts are utilised, these are finished with one coat of primer paint.
Maximum Sizes
4000mm wide x 2500mm high
Weight
Varies with opening size dependent on lath/barrel/casing requirements but approximately 25kgs/m².
Options
· E60 and E120 fire ratings.
· Audible and/or visual alarms.

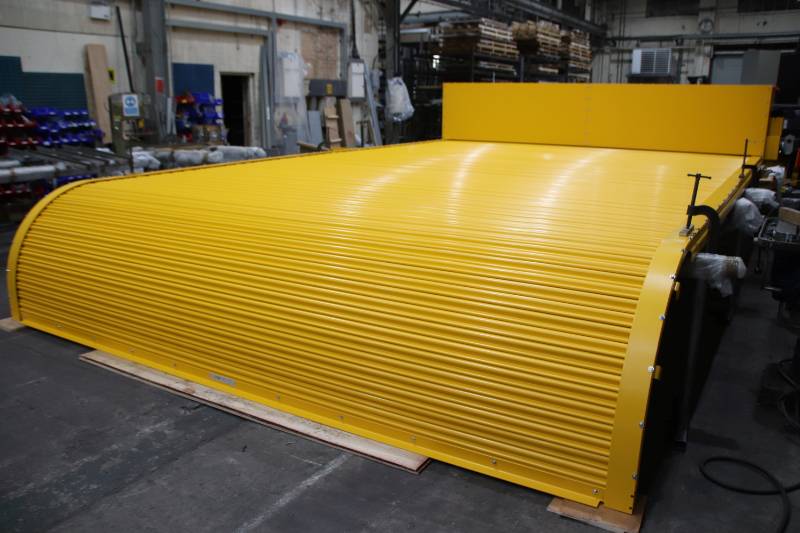

· Polyester powder coated finish to a range of standard RAL colours.
· Grade 304 or 316 stainless steel.
· Obstruction detection (light curtain or safety photocell).
Color | Manufacturer guidanceGalvanized as standard, can get Powder coated RAL. |
Finish | Galvanized Powder-coated Other |
Material | Carbon steel Steel Stainless steel |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/530 Sliding folding external doors L20/610 Roller shutters/ curtains |
Product range |
Standard | Internal/ external fire rated roller shutter CE marked to BS EN 13241 and BS EN 16034. |
Opening sizes | Guidance for specification option: Maximum of 4000 mm clear width x 2500 mm clear height as standard. |
Format | Internal/ external. |
Arrangement | Vertical. |
Performance | |
Fire performance | |
Fire resistance | Integrity (E) 30.Guidance for specification option: Rated E30 in accordance with EN 13501-2. |
Resistance to wind load | Class 4. |
Frame and guides | |
Material | Steel. |
Finish | Galvanized.Guidance for specification option: Standard. Powder coated.Guidance for specification option: Insert colour requirements below. |
Colour | Silver.Guidance for specification option: Standard (galvanized finish). RAL.Guidance for specification option: Insert colour requirements (powder-coated finish only). |
Shutter curtain | |
Lath material | Galvanized steel.Guidance for specification option: Standard. Stainless steel, 1.4301 (304) grade.Guidance for specification option: Optional. Stainless steel, 1.4401 (316) grade.Guidance for specification option: Optional. |
Profile | Flat. |
Finish and colour | Galvanized.Guidance for specification option: Standard. Powder coated, RAL.Guidance for specification option: Insert colour requirements. Stainless steel. |
Execution | Guidance for specification option: Workmanship in joinery. |
Operating forces | Electric operation. Guidance for specification option: As standard. Complete with manual override for use in the event of power failure. |
Mode | Activation is via a signal from the fire alarm system to an auto-reset solenoid. Guidance for specification option: When activated, it releases the motor brake allowing the shutter to close by gravity with a controlled descent. |
Operation | 230 V nominal, single-phase. Guidance for specification option: Electrical operation is by means of a 230 V nominal single-phase Speedsafe motor mounted on one end plate. Standard operation is via a low-level push button station with emergency stop button. A pull cord and hand chain are provided for use in the event of power failure. |
Accessories | Not required. Fire door control panel with integrated audio-visual warning. Heat/ smoke detectors. |
Weight | 50 kg/m². Guidance for specification option: Varies with opening size but approximately 50 kg/m². |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Carbon steel Steel Stainless steel |
Manufacturing plant location | |
Recyclability | 95% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 20 year |
