Application

For use in ceilings where fire-resistant ceiling tiles have been replaced by light fittings.

Description

An acoustic ceiling pad for suspended ceilings.

Developed to provide maximum protection for ceilings where fire resistant tiles have been replaced by light fittings, it incorporates ventilation slots to reduce any potential for heat build-up in the light fitting.

Features and benefits:

  • Recessed luminaire cover for use in 30-minute and 60-minute fire rated ceilings.
  • In a fire situation, the cover’s intumescent materials expand to fill all the slots with a fire resistant highly insulating char, preventing the fire from penetrating the ceiling.
  • The cover also gives additional insulation protection to the ceiling void and reduces the chance of ignition of accumulated dust and insulation.
  • Designed for ease of fitting.
  • Self-locating and cannot be fitted incorrectly.
  • Unaffected by moisture and non-toxic.
  • With cover in place, light fitting can be installed in normal way.
  • Can be fitted from above or below ceiling.
  • No screws or drilling required.
  • 60 minutes fire tested to BS 476-23.
  • Available in 600 x 600 mm and 600 x 1200 mm size.

General information

Shape

Square

Rectangular

Size

600 x 600 mm

Guidance for specification option:

1277.

600 x 1200 mm

Guidance for specification option:

1293.

Uniclass

Pr_25_80_81_51 Mineral wool fire-stoppingPrimary

CAWS

P12/150 Loose fire-stopping

V90/510 Luminaires

Specification data - Mineral wool fire-stopping

Fire performance

To BS 476-23: 60 minutes.

Product Reference

Fire Rated Luminaire Covers

Literature

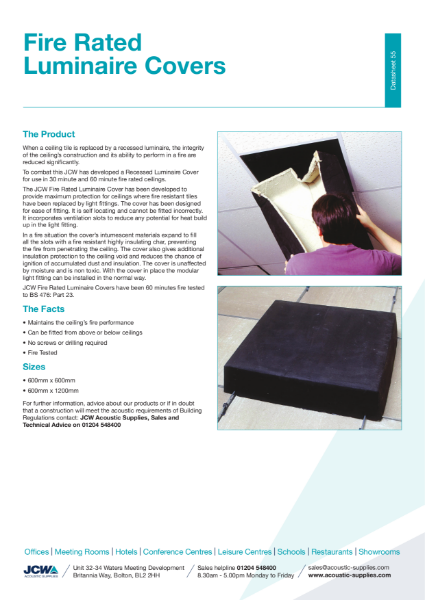

Fire Rated Luminaire Covers

Fire Rated Luminaire Covers
